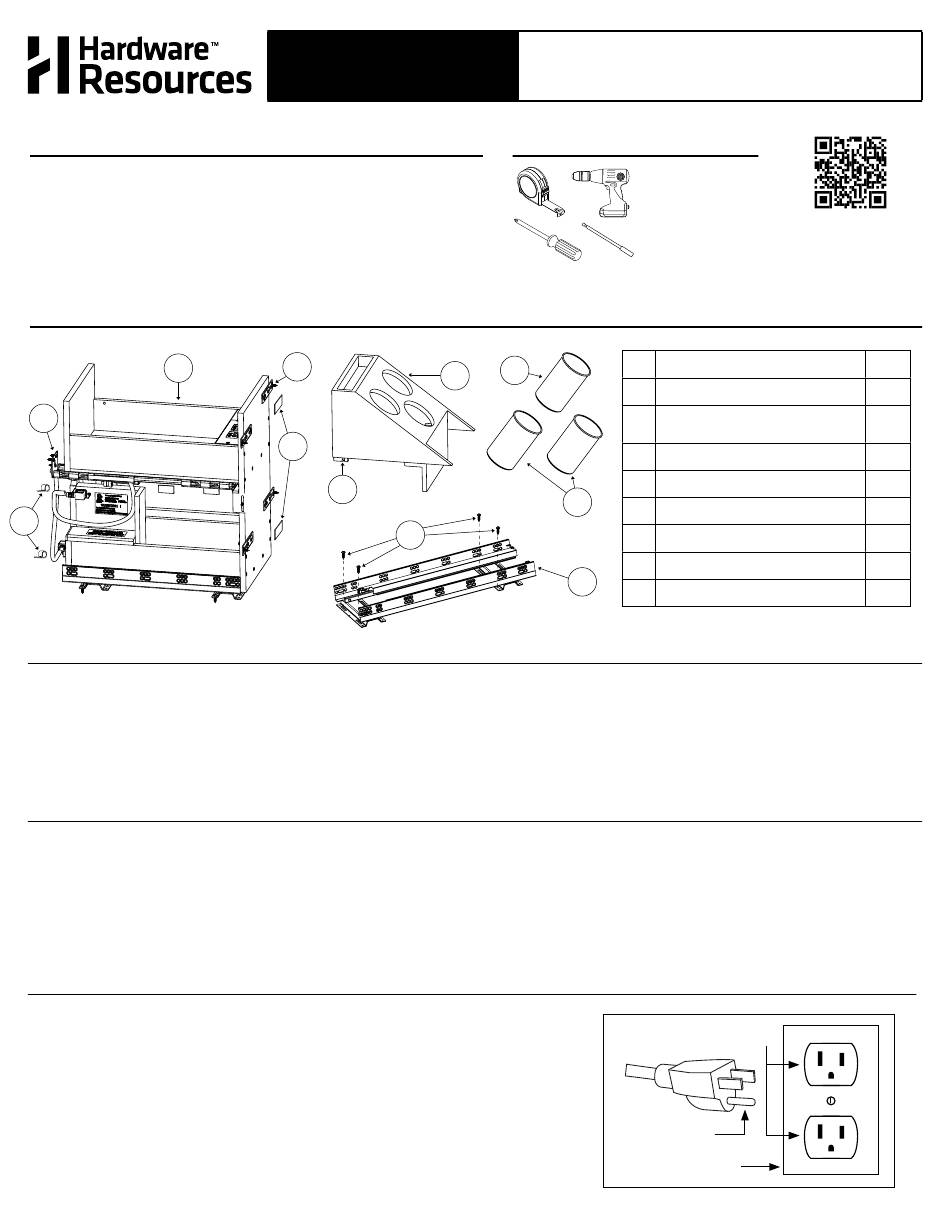

HARDWARE RESOURCES PVBPO -SC Series Installation Instructions

IMPORTANT:
Before you begin, make sure you familiarize yourself with all the parts
and fully read the instructions. GFCI outlet must be installed or accessible
within 3.5 feet of where the pullout will be installed.
ETL recognized 12 amps at 120 VAC (60 Hz).
Top shelf rated for 30 lbs. Bottom shelf rated for 26 lbs. Total weight
capacity rated for 100 lbs. at full extension. FOR HOUSEHOLD USE ONLY.
PARTS IDENTIFICATION:
B
D
I
IMPORTANT SAFETY INSTRUCTIONS:
CAUTION: To reduce risk of fire or electronic shock or injury to persons
• Not intended for long-term storage. Items should be monitored.
• Wiring and installation should only be performed by a licensed electrician. All wiring must follow NEC regulations.
• Do not alter plug.
• Do not store combustibles such as aerosols in unit.
OPERATING INSTRUCTIONS:
• Install 120v GFCI outlet in rear of cabinet within 3.5 feet of back of unit.
• Do not overload outlet.
• Hot items should only be placed in canisters.
• Customer is responsible for electrical wiring outside of this unit.
• Product is intended for powered device usage.
• Overall safety of this product is determined by its end use.
MAINTENANCE INSTRUCTIONS:
• Clean with a damp cloth and wipe dry.
• If you're experiencing issues with your unit, remove and inspect for damage.
• Route and secure cords so that they will not be put in a bind or under strain
when unit is closed.
• Unit must be properly grounded using provided cable with grounding pin.
• This product is for use on a nominal 120-volt circuit and has a grounding plug
as shown in the image to the right. Make sure that the product is connected to
an outlet having the same configuration as the plug. No adapter should be used
with this product.
Series
PVBPOxx-SC
Powered Vanity Base Pullout
U.S. Patents: 9,661,924 & 9,723,922 & 10,028,581 & 10,251,480 & 11,923,160
E
F
H
D
Installation Instructions
TOOLS NECESSARY:
NOTE: If screw gun has a clutch, set to lowest setting
so as not to over tighten and/or strip screws.
C
G
C
A
*PVBPOF8-SC comes with 2-cannister angled topper and 2 pins.
PVBPOF11-SC comes with 3-cannister angled topper and 2 pins.
Grounded Outlet Box
WARNING - RISK OF FIRE AND SHOCK; USE ONLY SJT EQUIVALENT 14AWG CORD
• Tape Measure
• Screw Gun
• Phillips Screwdriver
Scan QR or visit link to
• Long Extension Bit
view insallation video.
https://delivr.com/24jzz
A Mounting Base
B Base Pullout Unit
4" x 6" Stainless Steel Canisters
C
(PVBPOF11-SC comes with 4 pcs)
D #8 x 5/8" Pan Head Wood Screw
E #8 x 5/8" Flat Head Wood Screw
F 3M Double-Sided Tape
G Angled Topper*
H Pins
I Cable Clamps
Grounded Outlets
Grounding Pin
1 pc
1 pc
3 pcs
10 pcs
4 pcs
4 pcs
1 pc
2 pcs
2 pcs
