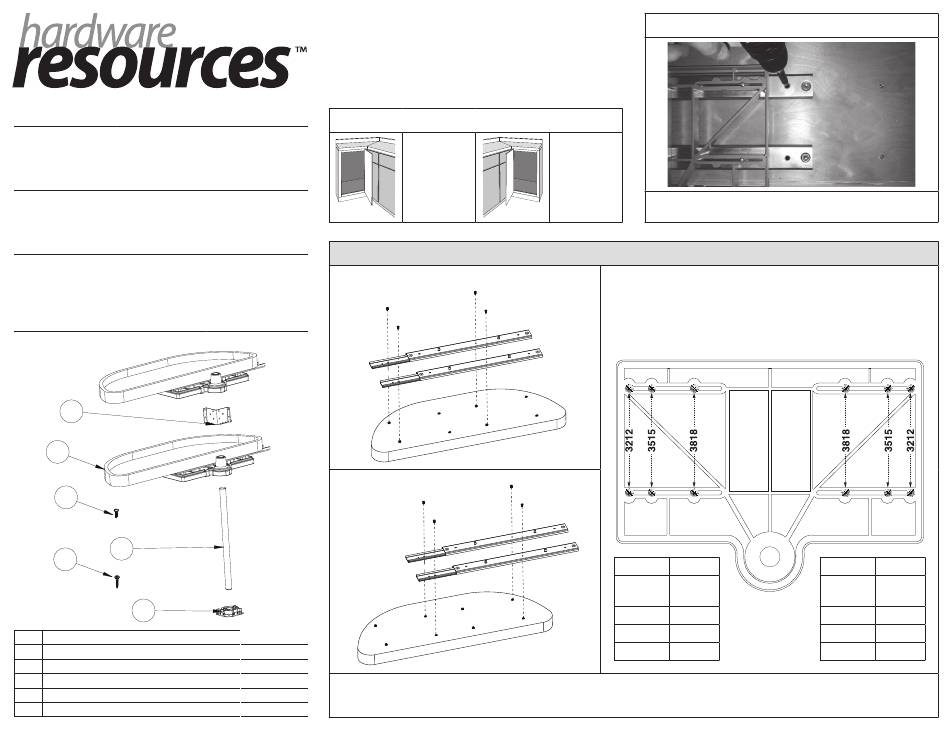

HARDWARE RESOURCES Half Moon Lazy Susan Series Installation Instructions

IMPORTANT:
Before you begin, make sure you familiarize yourself with all the
parts and fully read the instructions.
CUSTOMER SERVICE:
Toll free customer help line available weekdays between 7:00am
and 6:00pm Central Time at 800-463-0660.
TOOLS NECESSARY:
Screw gun or Phillips screwdriver. NOTE: If screw gun has a
clutch, set to lowest setting so as not to over tighten and/or
strip screws.

PARTS IDENTIFICATION:

4
1
5
2
6
3
1 Wood Shelf Assembly
2 Pole
3 Lower Hub Assembly
4 Upper Hub Assembly
5 #8 X 3/4" Pan Head Phillips Wood Screws
6 #8 X 3/4" Flat Head Phillips Wood Screws
Half Moon Lazy Susan
Installation Instructions
for the HMLS Wood Series
Do I have a Left Hand or Right Hand opening?
Left Hand
blind corners
have the
opening
on the left.

STEP 1 - Determine Left or Right Hand Installation

Left Hand Shelf and Bracket Mount
Right Hand Shelf and Bracket Mount
qty 2
qty 1
qty 1
qty 1
To prepare the unit for Right Hand installation, remove the screws mounting the slides to the shelf and reattach the slides to the
qty 4 shelf as shown above. Then loosen the four screws that attach the metal casting bracket to the shelf and slide the casting bracket to
the proper location shown on the illustration and chart above. Re-tighten the screws.
qty 5

Prior to Installation

Right Hand
blind corners
have the
opening
on the right.
Remove black shipping screws as shown above before
beginning installation
NOTE: The Half Moon Lazy Susan ships ready to
install as a Left Hand model. Apply first set of screws on
A,B or C when converting to Right Hand model.
Attach second set of screws where they are positioned.
Left Hand model
2 5 8
2 5 8
Model # Position
Left
Hand
3212
2
3515
5
3818
8
Right Hand model
C B A
C B A
Model # Position
Right
Hand
3212
A
3515
B
3818
C
