IMPORTANT:
Before you begin, make sure you familiarize yourself with all the
parts and fully read the instructions.
CUSTOMER SERVICE:
Toll-free customer help line available weekdays between
7:00am and 6:00pm CST at 800-463-0660.
TOOLS NECESSARY:
Screw gun, Phillips screwdriver, tape measure and square.
NOTE: If screw gun has a clutch, set to lowest setting so as not to
over tighten and/or strip screws.
PARTS IDENTIFICATION:
H
G
B
F
D
E
D
E
A
Mounting Base
B
Pantry Pullout Unit
C
#10 x 1-1/2" Pan Head Phillips Wood Screw
D
5/16-18 x 1.25 Pan Head Phillips Machine Screw
E
#18 x 5/16 Metal Washer
F
Almond Snap-in Cover
G
#8 x 5/8 Pan Head Phillips Wood Screw
H
#8 x 5/8 Flat Head Phillips Wood Screw
Pantry Pullout
Installation Instructions
for the PPO2 Series
B
NOTE: Illustrations for measurement only. Installation of brackets and mounts will begin in Step 2
A
B
B
A
A
15"
3-29/32"
PPO2-8 • PPO2-11 • PPO2-14
C
Measure and mark center line of cabinet bottom.
A
Front Center Rail
Shelf
Front Center Rail
Shelf
D
D
(Face Frame)
1 pcs
1 pcs
4 pcs
4 pcs
4 pcs
2 pcs
8 pcs
(Face Frame) Measure the reveal behind the center rail (D) and add to the measurements shown.
4 pcs
STEP 1 - Measure and mark for installation
Bottom measurements
B
A
B
A
D
Part #
A
B
D
PPO2-5
1-1/4"
5/8"
PPO2-8
2"
1"
D
PPO2-11 4-5/16"
2-3/16"
PPO2-14 6-5/16"
3-5/32"
C
C
3-29/32"
Bottom Mounting Holes
C
Bottom Mounting Holes
Rear Mounting Holes
Rear Mounting Holes
Bottom Mounting Holes
Rear Bracket Measurements
Rear Mounting Holes
Front Center Rail
Shelf
11/16"
D
11/16"
1-5/16"
1-5/16"
11/16"
1-3/4"
1-5/16"
2"
1-3/4"
2"
(Frameless) Measure and mark from center line as shown.
Cabinet Rail Bracket Measurements
1-3/4"
1-3/4"
1-3/4"
1-3/4"
1-3/4"
Bottom
of front
center rail
15"
Bottom
15"
of front
center rail
4-21/32"
PPO2-5
Mark center of cabinet rail for screw placement.
D
D
11/16"
1-5/16"
1-3/4"
D
2"
1-3/4"
11/16"
1-5/16"
2"
15/32"
15/32"
1-3/4"
15/32"
Bottom
of front
center rail
(Inside cabinet view)
D
D
11/16"
1-5/16"
1-3/4"
2"
D
1-3/4"
2"
Advertisement
Related Manuals for HARDWARE RESOURCES PPO2-5
Summary of Contents for HARDWARE RESOURCES PPO2-5
-

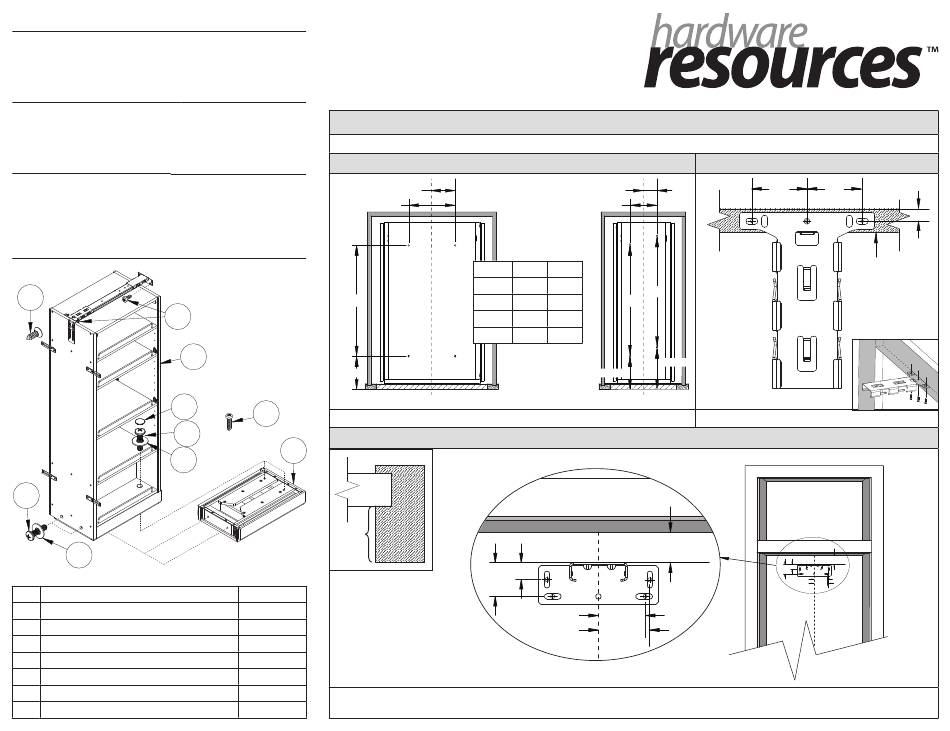

Page 1: Installation Instructions
