x-sense SAL51 User Manual

Smart smoke and carbon monoxide alarm listener
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
Smart Smoke and Carbon Monoxide Alarm Listener

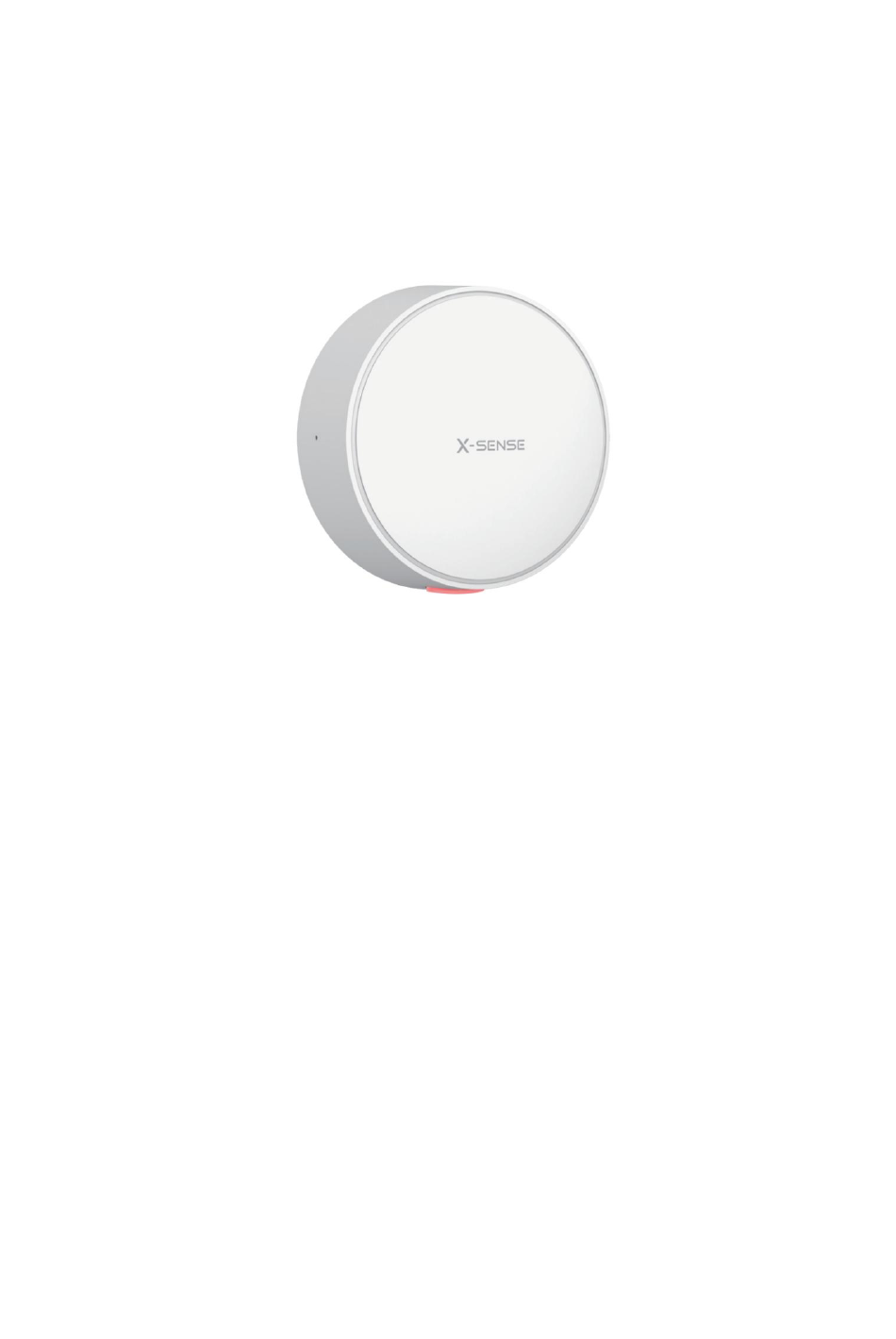

Model: SAL51

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SAL51 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for x-sense SAL51

Summary of Contents for x-sense SAL51

  • Page 1 User Manual Smart Smoke and Carbon Monoxide Alarm Listener Model: SAL51...

  • Page 2: Product Overview

    This user manual contains important information regarding the operation of your smart smoke and CO alarm listener. Ensure you read this user manual fully before installing and operating the listener. If you are installing this device for use by others, you must leave this manual (or a copy of it) with the end user.

  • Page 3: Package Contents

    Package Contents Alarm Listener (SAL51) Mounting Bracket Screw Kit Ruler Batteries User Manual Device Setup Download the X-Sense Home Security App...

  • Page 4: Installation Method

    To download the X-Sense Home Security App, scan the QR code or search for “X-Sense Home Security” in the Apple App Store or Google Play Store. Sign up with a valid email address. If you already have an account, make sure the app is updated to the latest version.
  • Page 5 Alarm Listener (SAL51) Mounting Bracket Screw Kit Ruler Items Not Included: Electric Drill with Ø 1/4 in (6.0 mm) drill bit Pencil Hammer Philips Screwdriver Installation Notes...
  • Page 6 Find a location for your listener mounting bracket within 2–6 in (5–15 cm) of a smoke/CO alarm, making sure the arrow on the bracket points to your existing smoke/CO alarm. The sensor hole of the listener should face the buzzer of the smoke/CO alarm for best results. NOTE: 1.
  • Page 7 Installation Instructions 1. Once you have decidedthe mounting location, mark two screw holes on the wall or ceiling according to the holes on the mounting bracket, then drill the two screw holes to a depth of 1.2 in (30 mm) using a Ø 1/4 in (6.0 mm) drill bit. 2.
  • Page 8 3. Attach the listener to the mounting bracket by turning clockwise to lock the device. Note: The sensor is housed in the small hole on the side of the listener. Please do not poke it, as this may result in damage. Signal Reception Test After the listener is attached to the mounting bracket, tap “Next”...
  • Page 9 Testing your smoke/CO alarm may trigger the listener (including the device’s test after battery replacement). To avoid false alarms, press the button on the side of the listener or enable the signal reception test in the app before testing your smoke/CO alarm, then press the test/silence button on the smoke/CO alarm.

  • Page 10: Battery Replacement

    The signal reception test lasts 3 minutes. Press the button on the side of the listener to cancel the test. Battery Replacement 1. To replace the battery, detach the listener from the mounting bracket by twisting counterclockwise. 2. Remove the batteries, then install new batteries matching the correct polarity markings. 3.

  • Page 11: Troubleshooting

    Interconnected Units Operating Frequency 915 MHz (US)/868 MHz (EU) Connection Distance (in Open 1,700ft (500m) Air) X-Sense Home Security (both Android and iOS supported) Wi-Fi Frequency 2.4 GHz (incompatible with 5 GHz Wi-Fi network) LED Indicator of Listener Mode LED Status Powering On Flashes red once.
  • Page 12 should receive a push notification through the app. Please note, that attempting to trigger the listener by pressing the alarm's test button may result in failure, so it's best to use the smoke from a piece of paper as instructed. It is unclear how to judge Look in the app: only the initiating listener which listener is triggered...

  • Page 13: Fcc Statement

    Thecommunication Reduce the obstacles between the listener and between the listener and base station. The maximum distance between base station is not stable the listener and the base station in an open or they are toofar apart. environment is 1,700 ft (500 m). The network connection Make sure the network connection of the of the router and the...

  • Page 14: Environmental Protection

    Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with Local Authority or retailer for recycling advice. Manufacturer and Service Information X-Sense Innovations Co., Ltd. Address: B4-503, Kexing Science Park, 15 KeyuanRoad,Shenzhen, 518057, CHINA Email: support@x-sense.com...
