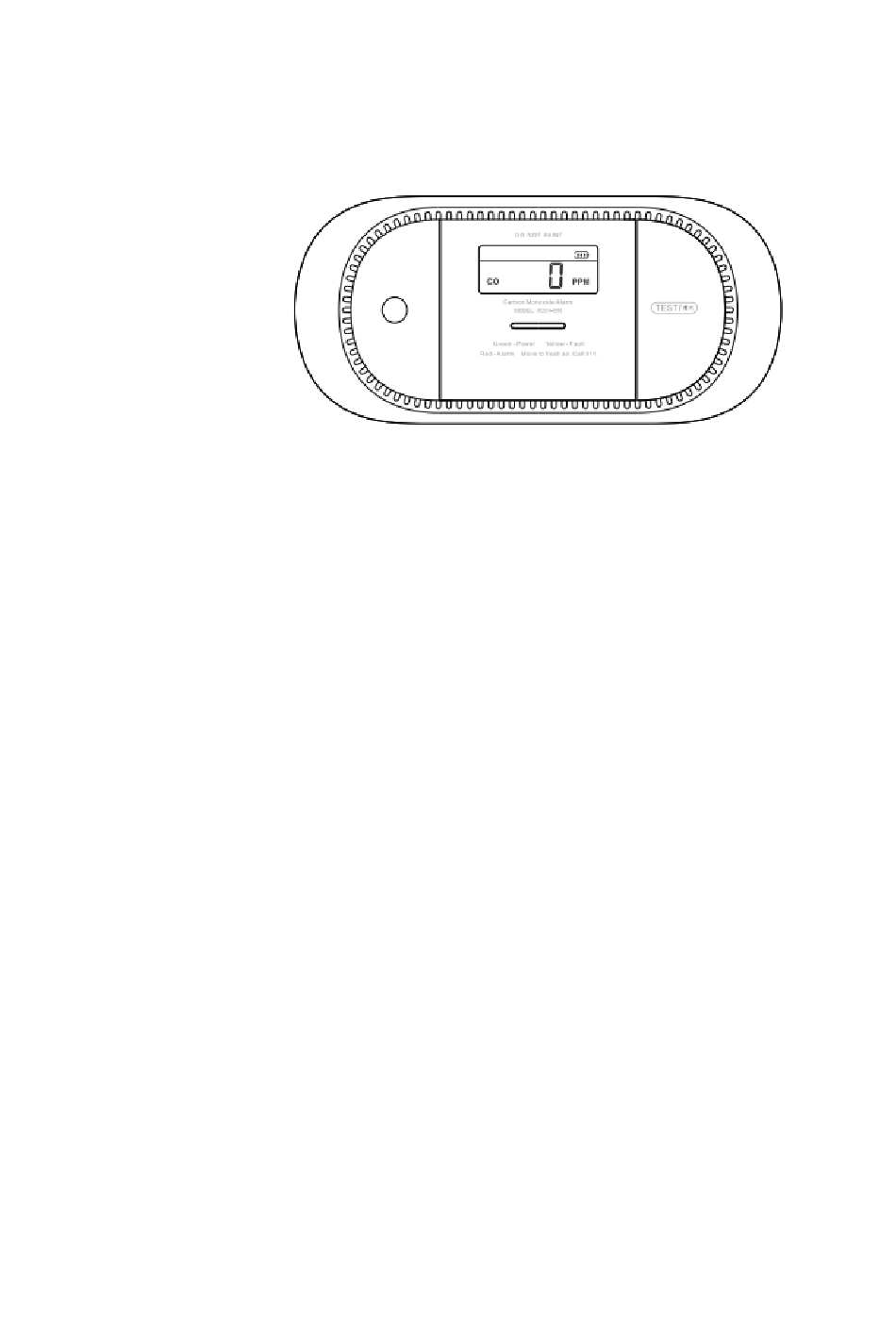

- Page 1 X-SENSE XC01-WR Wireless Interlinked Carbon Monoxide Alarm UL 2034 Email: support@x-sense.com...
-
Page 2: Package Contents
This user manual contains important information regarding the installation and operation of your carbon monoxide alarm. Please take a few minutes to thoroughly read this manual which should be saved for future reference. If you are installing the — carbon monoxide alarm for use by others, you must leave this manual or a copy of —... -
Page 3: Product Features
Product Features Test/Silence Button The Test/Silence button is used to test the unit's electronics and to silence the unit during an alarm. Short press the test button and you will hear a short beep, indicating that the alarm has entered the test mode. Please refer to the ―Alarm Testing‖ section for further information. - Page 4 alarm will issue 4 short beeps, repeating the cycle every 5.8 seconds. CO Concentration and Symptoms The table below shows the effects of different levels of CO poisoning on the body: Parts per Million (PPM) Effects on Adults Slight headache, nausea, fatigue (flu-like symptoms). Dizziness and headache within 2–3 hours.
- Page 5 1. Make sure you only work with 2 units at a time, and make sure that they are both turned on to ensure successful connection. NOTE: To turn on XC01-WR, pull out the battery insulating film from the battery compartment. To learn how to turn on different models of wireless interlinked alarms, please refer to their specific user manuals for more details.
- Page 6 the other unit twice; it will beep once and the LED will flash red rapidly, indicating it is searching for a device to connect to. 3. After the search is successful and an interconnected group is created, both units will beep once and automatically exit the interconnection mode. At this point, both units will only flash once 60 seconds, indicating they are in normal standby mode.
-
Page 7: Where To Install
2. Test all wireless alarms to ensure they are interconnected before installation. 3. A maximum of 24 wireless alarms can be interconnected on the same network. 4. The model can only be interconnected with other X-Sense Link wireless interlinked alarms. - Page 8 should be placed just outside of this room so that the alarm can be heard more easily. 1. Installing a CO alarm in a room with a fuel-burning appliance (see Figure 1): •If it is mounted on a wall, it should be installed at a height greater than the height of any door or window, but should still be at least 5.9 inches (150 mm) below the ceiling.
-
Page 9: Locations To Avoid
Installation in a bedroom or other room without a fuel-burning Figure 2: appliance (installed at head level) NOTE: Due to the product’s unique design and unfixed installation, it is not recommended to install it on a ceiling, as it is prone to falling off and causing injuries to people. -
Page 10: Installation Method
not possible. In modular, mobile or smaller houses, it is recommended the CO alarm be placed as far from any potential smoke or fume sources. 5. Within 5 feet (1.5 m) of any cooking appliance. 6. In extremely humid areas. This alarm should be at least10 feet (3 m) from a bath or shower, sauna, humidifier, vaporizer, dishwasher, laundry room, utilityroom or other source of high humidity. - Page 11 XC01-WR Before use, pull out the battery insulating film from the battery compartment to power on the device. After the device is turned on, the buzzer will beep once, the LCD backlight will light up, and the LED indicator will flash through 8 cycles (yellow/green/red).
-
Page 12: Alarm Testing
If your X-Sense Link XC01-WR is interconnected to other X-Sense wireless alarms, we recommend that every individual CO alarm be tested during the weekly test. - Page 13 Indication The alarm will emit 2 sets of The initiatingunit will beep four quick beeps every 5.8 continuously with the LED seconds. flashing red. The LED will flash red Other interconnected alarms in the during the audible signal. network will receive the signal after 5 seconds, then they will The LCD will display ―---,‖...
-
Page 14: Alarm Mode
When one smoke alarm is triggered in the interconnected network, the unit will beep 3 times, paired with a red LED that flashes every 4 seconds. Any other XC01-WR units will follow suit—they will beep 3 times every 4 seconds, paired with the LED flashing red and green in succession. -
Page 15: Lcd Display
again if they detect danger during the silence mode. LCD Display While detecting CO, the LCD will display different indicators to inform you of the alarm status, as shown below: Mode LED Indicator Audible Remarks Display Alarm Make sure the battery Runs through 8 cycles 1 quick beep. - Page 16 The LEDflashesred 3 long beeps Dangeroussmoke and green 3 times every 4 concentration is detected by sequentially every 4 seconds. the initiating unit in the seconds. network. Please find the initiating unit and take action. A CO concentration Unit that detects None.
-
Page 17: Technical Specifications
The LED indicator None. Silence mode during low flashes yellow once battery: After 10 hours, the every 60 seconds. unit will exit silence mode. The LED indicator None. Silence mode during the flashesyellow 3 times end of the cycle: After 22 every 60 seconds. -
Page 18: What To Do When The Alarm Sounds
Maximum Number of 24 wireless units (only compatible with X-Sense Interconnected Units wireless alarms) Transmission Range Over 820 ft (250 m) in open air What to Do When the Alarm Sounds 1. Call emergency services as soon as possible. 2. Immediately move outside and make sure that everyone inside the house has evacuated the area or has access to fresh air. -
Page 19: Battery Replacement
damage or temporarily contaminate the sensor. 4. Avoid spraying air fresheners, hair spray, paint or other aerosols near the alarm. 5. Do not paint the unit. Paint may clog the openings to the sensing chamber and prevent the unit from operating properly. WARNING: DO NOT TAMPER WITH THE APPARATUS, AS THERE IS A RISK OF ELECTRIC SHOCK OR MALFUNCTION. - Page 20 3. CO alarms may not sense CO on another level of the house. For example, a CO alarm on the second level, near the bedrooms, may not sense CO in the basement. For this reason, one CO alarm may not give an adequate warning. Complete coverage is recommended by placing CO alarms on each level of the house.
-
Page 21: Troubleshooting
the house, or is at some distance from the CO alarm. Troubleshooting PROBLEM SOLUTION Your alarm does not sound during testing. Please ensure the batteries are properly installed in the alarm. Make sure you push thetest button firmly. Check the installation positioning. -
Page 22: Environmental Protection
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with Local Authority or retailer for recycling advice. Manufacturer and Service Information X-Sense Innovations Co., Ltd. Address: B4-503, Kexing Science Park, 15 Keyuan Road, Shenzhen, 518057, CHINA Email: support@x-sense.com...
