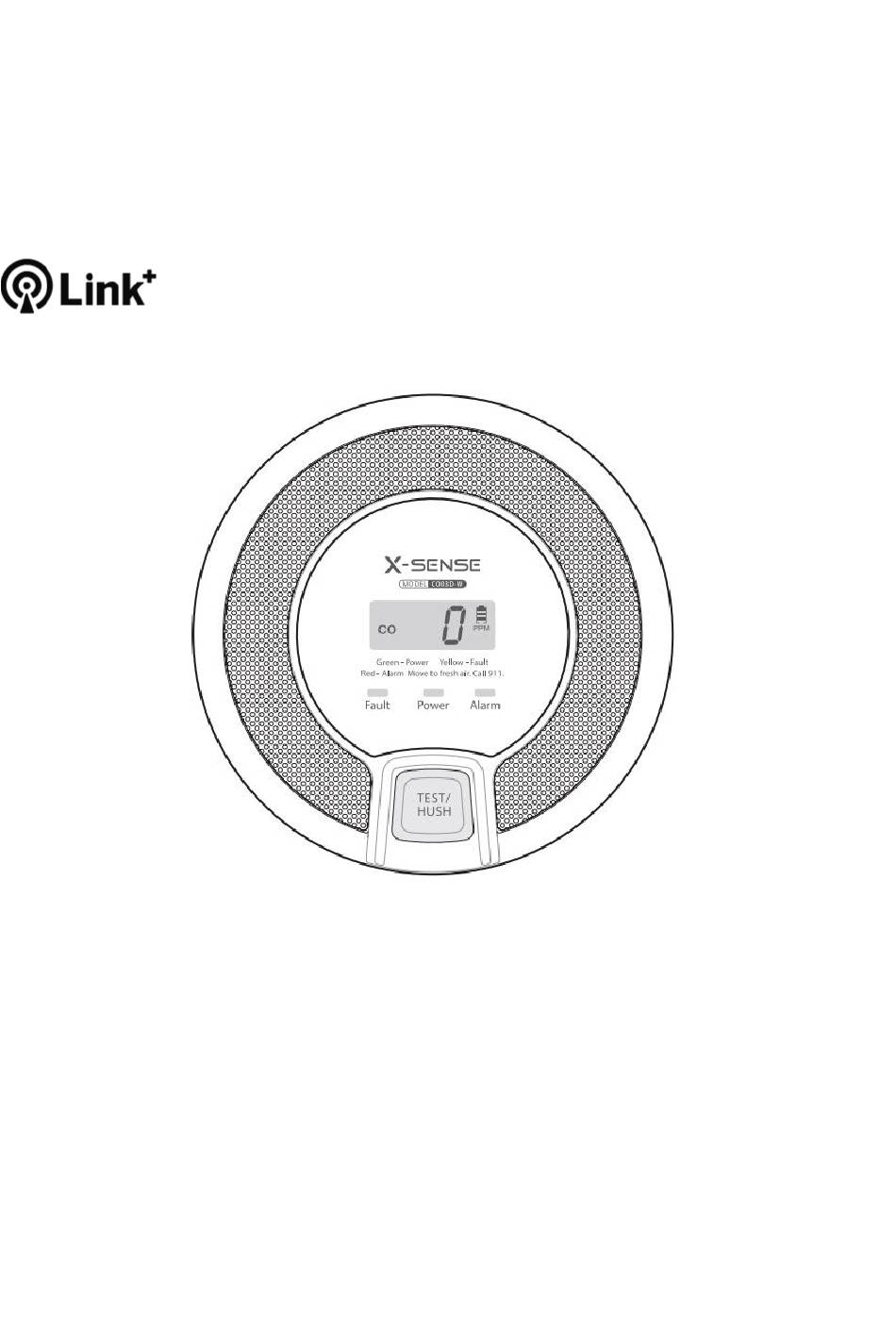

X-SENSE
CO03D-W
Wireless Interlinked Carbon Monoxide Alarm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Link+ CO03D-W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for x-sense Link+ CO03D-W

Summary of Contents for x-sense Link+ CO03D-W

  • Page 1 X-SENSE CO03D-W Wireless Interlinked Carbon Monoxide Alarm...
  • Page 2 This user manual contains important information regarding the operation of your X-Sense carbon monoxide alarm. Ensure you read this user manual fully before installing and operating the alarm and store it in a safe place for future reference. If you are installing this alarm for use by others, you must leave this manual (or a copy of it) with the end user.

  • Page 3: Package Contents

    Package Contents 1 × CO Alarm 3 × 1.5 V AA Batteries 2 × Screws 2 × Anchor Plugs 1 × User Manual 2 × Carbon Monoxide Safety Stickers Product Features LCD Display Fault/Low Battery Indicator (Yellow LED) Alarm Indicator (Red LED) Power Indicator (Green LED) Buzzer TEST/HUSH Button...
  • Page 4 TEST/HUSH Button The TEST/HUSH button is used to test the unit's electronics and to silence the unit during an alarm. When testing the alarm (which should be done weekly), press the test button and you will hear a short beep, indicating that the alarm has entered the test mode.

  • Page 5: Low Battery Warning

    WARNING THIS DEVICE IS DESIGNED TO PROTECT INDIVIDUALS FROM ACUTE EFFECTS OF CARBON MONOXIDE EXPOSURE. IT MAY NOT FULLY SAFEGUARD INDIVIDUALS WITH SPECIFIC MEDICAL CONDITIONS. IF IN DOUBT, CONSULT A MEDICAL PRACTITIONER. Low-Battery Warning If the battery is low, the unit will chirp once, and the yellow LED indicator will flash every 60 seconds to indicate that the battery needs replacement.
  • Page 6 Choose one multi-pack as your base network and connect the other multi-packs to it. NOTE: The following instructions regarding wireless interconnection are applicable to the X-Sense Link wirelessinterlinked alarms only.
  • Page 7 2. Test all wireless alarms to ensure they are interconnected before installation. 3. A maximum of 24 wireless alarms can be interconnected on the same network. 4. The model can only be interconnected with other X-Sense Link wireless interlinked alarms.

  • Page 8: How To Disconnect

    If your X-Sense Link CO03D-W is interconnected to other X-Sense wireless alarms, we recommend that every individual CO alarm be tested during the weekly test. Test a single CO alarm...

  • Page 9: Installation Positioning

    Installation Positioning Ideally, a carbon monoxide alarm should be installed in every room containing a fuel-burning appliance, and one in every bedroom. However, if the number of carbon monoxide alarm available is limited, the following guidelines should be considered when choosing the best places to install an alarm(s): If there is an appliance in a bedroom, a CO monitor should be installed.
  • Page 10 Figure 1: Installation in a room with a fuel-burning appliance Figure 1: In rooms with sloped ceilings, the CO alarm should be located at the high side of the room 2. Installing the CO Alarm in a Bedroom or Room Without a Fuel-Burning Appliance (See Figure...

  • Page 11: Locations To Avoid

    Mount the CO alarm relatively close to the breathing zone of the occupant.  Install the alarm such that the three LED indicators are viewable when the occupant is near the alarm.  WARNING: Do not use the CO alarm on an intermittent basis or as a portable detector for the leakage of combustion products from fuel burning appliances or chimneys.

  • Page 12: Installation Method

    Where the air is turbulent, such as near ceiling fans, heat vents, air conditioner vents, fresh air return vents, or open windows. Excessive air flow may prevent any CO from reaching the sensors. In direct sunlight. 10. Near large metal surfaces or where there are lots of cables or wires that can cause interference. 11.
  • Page 13 A CO concentration ranging from 4 quick beeps Dangerous Unit that 30 to 999 ppm has been present for repeating every detects CO CO concentration is detected, a certain time period. The blue 5.8 seconds. and has reached the alarm backlight is lit, and the red LED initiates an status.
  • Page 14 Test all Continuous Initiatingunit. The red LED indicator flashes interconne beeping until Hold down the TEST/HUSH rapidly. cted units you release the button on one unit in the TEST/HUSH network. button. The red and green LEDsflash Other interconnected alarms sequentially. in the network.

  • Page 15: Alarm Mode

    Alarm Mode X-Sense Link wireless interlinked alarms can be interconnected such that any unit that senses dangerwill cause all other units in the interconnected network to alarm. 1. If the Initiating Unit Is Triggered by CO: When one CO alarm is triggered in the interconnected network, the unit will beep 4 times every 5.8 seconds, paired with a red LED flashing indicator.

  • Page 16: What To Do When The Co Alarm Sounds

    -4 to 140° F (-20 to 60° C), 5% to 95% RH (non-condensing) Silence Duration About 9 minutes Operating Frequency 915 MHz Maximum Number of Interconnected 24 wireless units (only compatible with X-Sense wireless Units alarms) Transmission Range Over 820 ft (250 m) in open air NOTES 1.

  • Page 17: Battery Replacement

    Never use detergents or solvents to clean the alarm. Chemicals can permanently damage or temporarily contaminate the sensor. Avoid spraying air fresheners, hair spray, paint or other aerosols near the alarm. Do not paint the unit. Paint may clog the openings to the sensing chamber and prevent the unit from operating properly.

  • Page 18: Troubleshooting

    appliances, or other possible sources of incomplete combustion. The installation of a smoke alarm is required for an early warning of fire. CO alarms are not a substitute for life insurance. Though these CO alarms warn against increasing CO levels, we do not warrant or imply in any way that they will protect lives from CO poisoning.

  • Page 19: Environmental Protection

    Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with Local Authority or retailer for recycling advice. Manufacturer and Service Information X-Sense Innovations Co., Ltd. Address: B4-503, Kexing Science Park, 15 Keyuan Road, Shenzhen, 518057, CHINA Email: support@x-sense.com...
