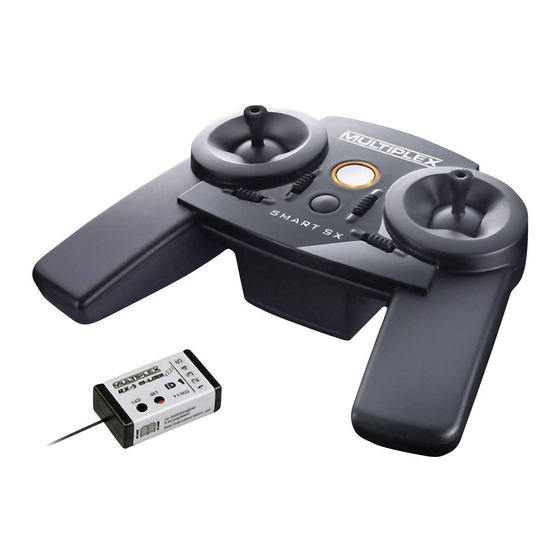

Multiplex SMART SX Manual

_________________________________________________________________________________________________________
1. C
ONTENTS
1. Contents
2. Quick-Start
3. Introduction
3.1 The SMART SX philosophy
3.2 Features of the SMART SX
4. Safety notes, other information
5. Set contents / Accessories
6. Specification
6.1 SMART SX transmitter
6.2 RX-5 light M-LINK receiver
7. Handling
7.1 Transmitter controls
7.2 Receiver controls
7.3 Transmitter aerial
7.4 Inserting dry / rechargeable cells
7.5 Voltage monitor / operating times
7.6 Binding
7.7 Channel assignment
7.8 Mode switching
7.9 Servo reverse
7.10 Unlocking, activating and disabling
the throttle function
7.11 Trims
7.12 Dual Rates
7.13 Fail-Safe
7.14 Auxiliary (AUX) channel
7.15 Range checking
7.16 Model memory (ID)
7.17 Installing the receiver in the model
7.18 The SMART SX as Pupil transmitter
7.19 Firmware update / settings for
future RR+ models
7.20 Installing aluminium sticks
7.21 Speech output of telemetry data
8. Advice and Service
9. Care and Maintenance
10. CE Conformity Declarations
11. FFC Warning Statements
12. IC Warning Statements
13. Guarantee / Liability Exclusion
14. Disposal
15. Fault-finding
Congratulations on purchasing your new radio control
system. We are delighted that you have selected the
MULTIPLEX SMART SX M-LINK. You are now the
owner of a superb system for the newcomer to the
hobby of radio-controlled modelling. We hope you
have many hours of fun and success with your new
equipment.
SMART SX
2. Q
UICK
16
1. Unpack the transmitter and receiver
16
Store the documents safely.
17
2. Insert the batteries
17
It is essential to maintain cor-
17
rect polarity (see adjacent illus-
tration). Reversed polarity may
18
ruin the transmitter and / or the
20
cells.
3. Binding
20
• Preparing the model
20
When binding is complete, the receiving system
21
immediately starts operating. Secure the model
21
carefully so that no damage can result if the propel-
21
ler should start turning.
21
• Prepare the transmitter
21
Hold the multi-function
22
button pressed in and
22
switch the transmitter on,
22
then release the button
22
again. The LED flashes
23
at a high rate.
23
• Prepare the receiver
Switch the receiver on
23
with the SET button held
24
pressed in; the receiver
24
LED now flashes at a
24
high rate.
24
24
If binding is successful, both LEDs revert to a slow
24
flashing rate.
26
4. Check the directions of servo rotation
26
• Model with ID receiver
The transmitter emits an audible signal when it de-
26
tects the receiver. No further adjustments are re-
26
quired.
27
• Model with normal M-Link receiver (light or teleme-
27
try)
27
All the control surfaces (servos) must respond to
the sticks in the correct direction; check and re-
27
verse the servos if necessary: move the correct
27 stick to one end-point and hold the multi-function
button pressed in for
27
three seconds: the ser-
vo now reverses, and
27
moves to the opposite
28
end-point.
28
5. Carry out a range check
It is important to check radio
range before the first flight:
hold the multi-function but-
ton pressed in for two sec-
onds
switching on, and the LED
glows constantly. The transmitter now generates great-
ly reduced power, and emits an audible warning signal.
Page 16
-S
TART
immediately after
