Summary of Contents for Discount Car Stereo BTA-FORD

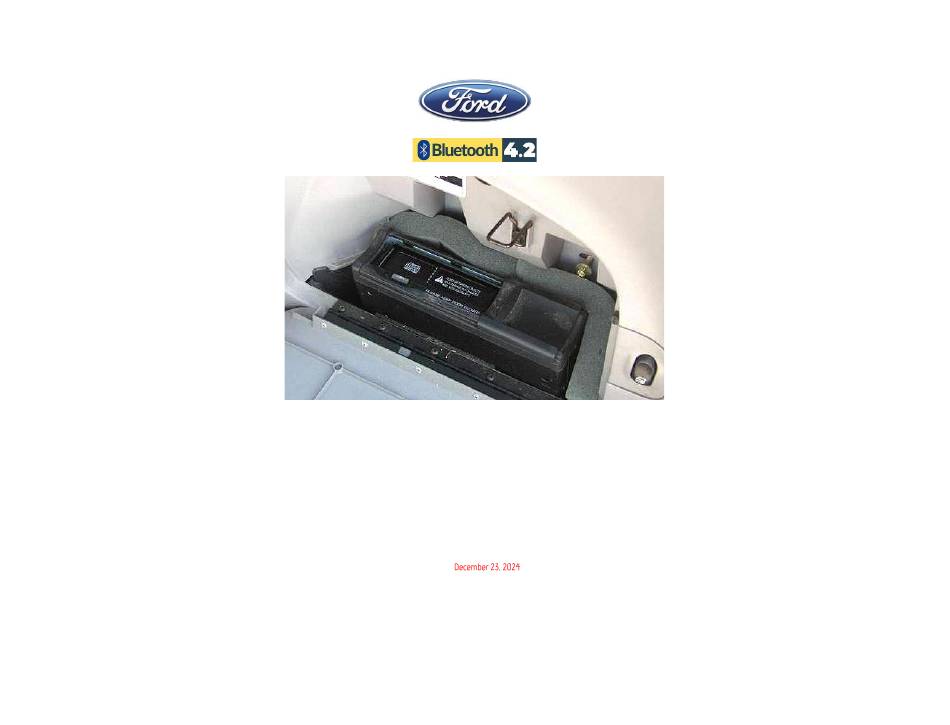

- Page 1 Courtesy of: DiscountCarStereo.com Serving the internet community since 1995 BTA-FORD MUSIC STREAMING INSTALL GUIDE FOR 1995-05 FORD, LINCOLN, MERCURY WITH REMOTE CD CHANGER Created August 16, 2024 Revised:...
-
Page 2: Installation
Introduction Portable audio products are everywhere, reflecting demand from active people all over the world to take their music on the road. The new BTA-FORD module supports any A2DP enabled smart to steam music applications including turn by turn directions, audio books, Apple music, Deezer and more directly into vehicles Fig. - Page 3 Fig. 4 Fig. 7 5. Connect installation harness 20-pin plug (See Fig. 3) to the radio 20-pin CD changer port vacated in step 3 (See Fig. 5) 7. Tap/splice install harness RED wire to 12V Accessory (switched) supply. We recommend GREEN/PURPLE wire on radio harness (See Fig. 8) Fig.
- Page 4 3. Snap header (See Fig. 13) to surface until flush (See Fig.14) Optional USB extension cable installation Note: 1. Optional 6 ft. USB dash mount extension cable is not required for operation, however it extends USB charging port (See Fig. 12) to dashboard, glovebox etc.
- Page 5 Pairing module Steaming operation Pairing varies among devices but basic steps are the same. This process is done upon initial install and will not have to be repeated Turn ignition and radio ON. (Module red LED should glow) Press the radio “CD” button. The CD should begin to play Turn Ignition and radio “ON”...
- Page 6 For additional support email support@discountcarstereo.com accessory wire. © 1995-Dec-24 Discount Car Stereo, Inc. All rights reserved. Information in this document is 11. Does the remote also control CD changer functions? subject to change without notice. Other products and companies referred to herein are The included remote is only able to control the select Bluetooth functions trademarks or registered trademarks of their respective companies or mark holders.
