Summary of Contents for Discount Car Stereo BTH-JAG97CD

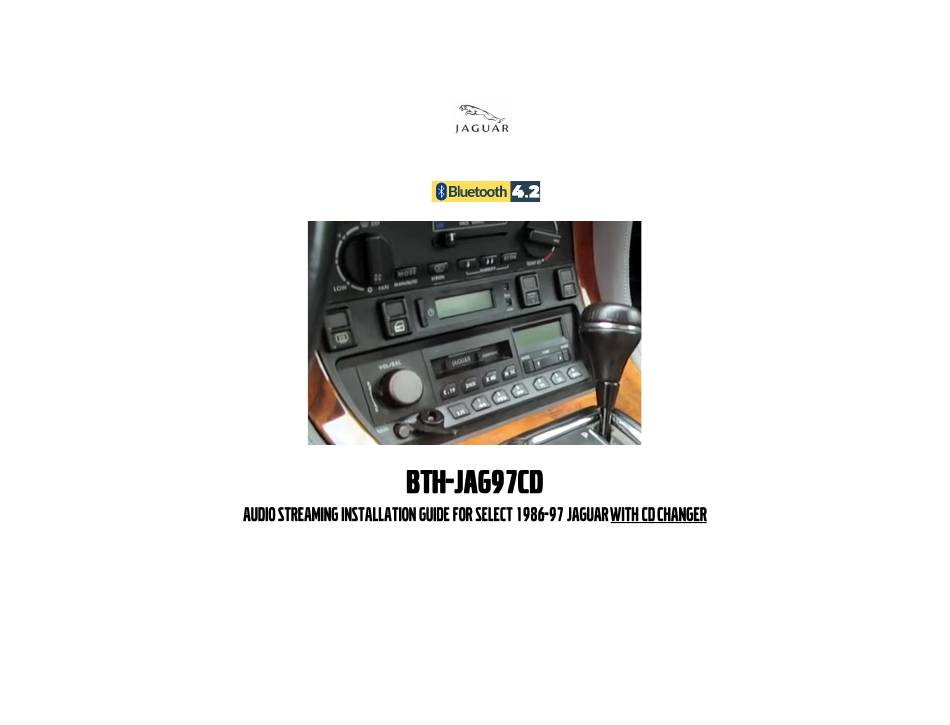

- Page 1 Courtesy of: DiscountCarStereo.com Serving the internet community since 1995 Created August 16, 2024 Revised: September 13, 2024...
- Page 2 Jaguar owners to stream audio books, Apple music, Deezer, turn by turn directions. USB charging (5V/2A) and CD changer retention. For the BTH-JAG97CD to work, vehicle must have a fully functioning CD Fig. 2 changer which remain connected and operational. If vehicle does not have a Connect 8-pin male plug from harness (See Fig.
- Page 3 12V accessory is available on radio main harness (plug) @ pin 9 (Light Connect installation harness 16-pin plug (See Fig. 6) to module 16-pin green/orange). Use voltmeter to test light to verify voltage socket (See Fig. 7) condition prior to finalizing install. Do not connect accessory wire to 12V battery (always on) Fig.
-
Page 4: Usb Charging
USB- charging Pairing The BTH-JAG97CD module includes a USB charging port (See Fig. 5) rated 5V/ Pairing process varies among devices but basic steps are the same. This 2A charging current. If you decide to use it, simply plug in the USB charging process is done upon initial install and will not have to be repeated. -
Page 5: Bluetooth Operation
Press “TAPE/CD” button on radio. YES; if the CD changer in trunk or hatch is functional, the BTH-JAG97CD is 3. Launch streaming application on audio device able to provide a streaming and retain use of the CD changer. - Page 6 For additional questions email support@discountcarstereo.com © 1995- Sep-24 Discount Car Stereo. All rights reserved. Information in this document is subject to change without notice. Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.
