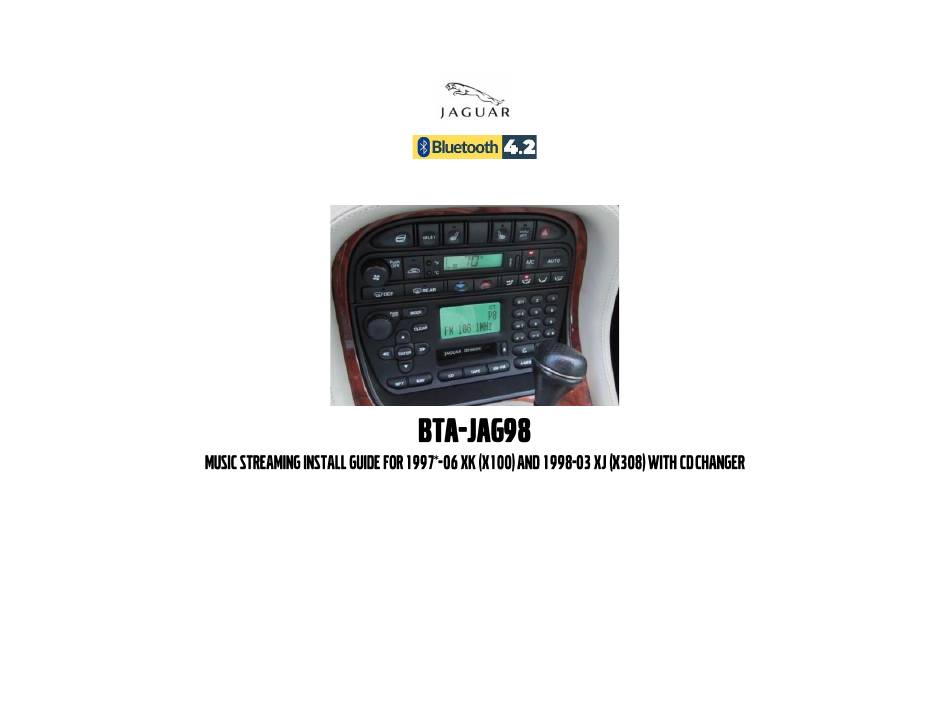

- Page 1 Courtesy of: DiscountCarStereo.com Serving the internet community since 1995 Created August 16, 2024 Revised: September 23, 2024...
-
Page 2: Installation
PRODUCT SAFETY & DISCLAIMER 2. To remove frame: READ ALL INSTRUCTIONS CAREFULLY BEFORE INSTALLING, FAILURE TO DO SO MAY CAUSE Remove (2) 7mm bolts on right and left side (See Fig. 1A, 1B) PERSONAL INJURY OR DAMAGE TO PRODUCT AND/OR PROPERTY Remove (2) 7mm bolts from top (See Fig. - Page 3 Fig. 3 Female connector 7. Insert factory male plug (See Fig. 4) to harness female connector (See Fig. 3). Make this connection by aligning both arrow markings and Fig. 1B push-inwards to connect (Use extreme caution when making this 3. Pull out the inner frame. connection and avoid twisting) 4.
- Page 4 9. Insert Add-a-fuse to vehicles fuse box positions F5 (XJ/R) or F3, F4, F5, F11, F13 (XK/R) (Or any capable or supplying 12V when ignition key is in ACC/ON positions only) Note: If aforementioned fuse position is occupied; remove said fuse and insert to vacant slot on Add-a-fuse circuit.
- Page 5 Optional USB extension cable installation Please note: Because this module installs in trunk/hatch; we highly recommend optional USB dash mount extension cable (6 ft.) to extends USB charging port (See Fig. 12) to inside vehicle cabin etc. USB port supports software updates and charging only.
- Page 6 Pairing Pairing process varies among devices but basic steps are the same. This process is done upon initial install and will not have to be repeated. Turn Ignition and radio “ON” Settings, Wireless & Networks, Bluetooth 2. On A2DP device: Go to Settings 3.
- Page 7 Steaming operation Frequent ask questions & troubleshooting Turn ignition and radio ON. (Module Red LED should glow) Can I pair more than one device to the BTA-JAG98? Press the radio “CD” button. YES; pairing multiple devices is possible, however only one device is able to connect at a time.
- Page 8 10. Only one side plays, or radio does not respond to “CD” button. What 13. Bluetooth ID name is not showing up on my device. What must I check? could be causing this? One reason for module ID to not display on smart device is because module - Check that factory CD plug (See Fig.
- Page 9 For additional support email support@discountcarstereo.com © 1995-Sep-24 Discount Car Stereo, Inc. All rights reserved. Information in this document is subject to change without notice. Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.
