Summary of Contents for Discount Car Stereo BTA-CTS

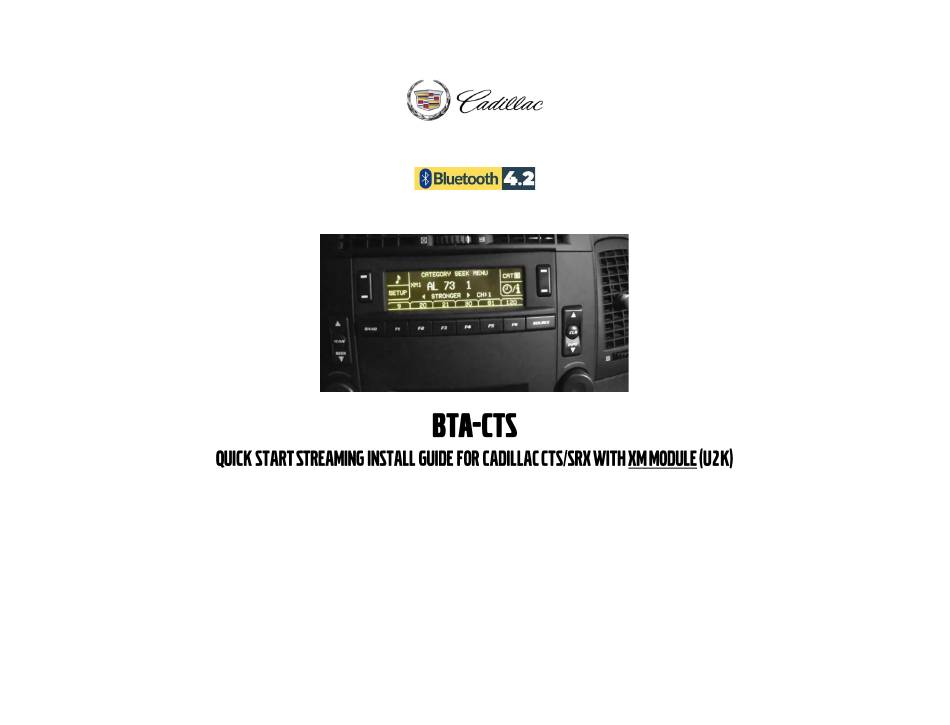

- Page 1 Courtesy of: DiscountCarStereo.com Serving the internet community since 1995 created August 16, 2024 revised: September 24, 2024...
- Page 2 A2D-CTS) music streaming module allows these vehicles owners to stream music applications from Smartphone, Tablet, Kindle etc. through the factory radios XM port. For the BTA-CTS module to work, the compatible vehicle must have an XM tuner module (expired or active subscription).
- Page 3 Connect 16-pin plug from harness (See Fig. 7) to 16-pin socket on Pull radio forward and locate 8-pin gray plug (See Fig. 4) module (See Fig. 8) Fig. 4 Fig, 7 Press gray plug release tab to disconnect from radio (See Fig. 4) Connect gray plug to 8-pin ISO connector (black) on harness (See Fig.
- Page 4 Fig. 10 Fig. 12 USB cable Warning: Jack may be left freestanding, but to be mounted, ensure panel is less than 4mm thick otherwise the AUX shaft may not protrude enough to engage with nut. If necessary, use dremel, sander etc. to thin panel or choose alternate mounting location.
-
Page 5: Operation
Pairing Operation Pairing process varies among devices but basic steps are the same. This Turn ignition and radio “ON” process is done upon initial install and will not have to be repeated. 2. Press “BAND” or “XM” softkey until XM1 or XM2 is displayed 3. - Page 6 BTH-CTS 8. Does the remote also control XM radio functions? © 1995-Sep-24 Discount Car Stereo, Inc. All rights reserved. Information in this document is subject to change without notice. Other products and companies referred to herein are The included remote is only able to control the select Bluetooth trademarks or registered trademarks of their respective companies or mark holders.
