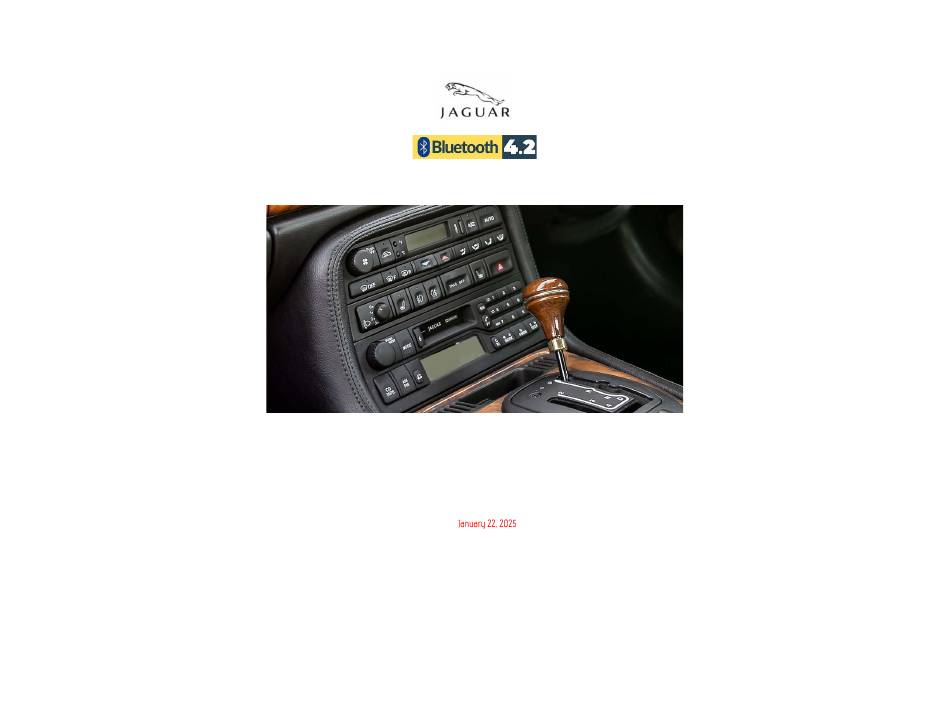

- Page 1 Courtesy of: DiscountCarStereo.com Serving the internet community since 1995 BTA-JAG98 MUSIC STREAMING INSTALL GUIDE FOR 1997*-06 XK (X100) AND 1998-03 XJ (X308) WITH CD CHANGER Created August 16, 2024 Revised:...
-
Page 2: Installation
Functioning CD auto changer in trunk or hatch Introduction Portable audio products are everywhere, reflecting demand from active people all over the world to take their music on the road. The new BTA-JAG98 (formerly A2D-JAG98) module supports any A2DP enabled smart to steam music Fig. 1 applications including turn by turn directions, audio books, Apple music, Deezer and more directly into vehicles audio system via the CD changer port. - Page 3 Fig. 3 Female connector 7. Insert factory male plug (See Fig. 4) to harness female connector (See Fig. 1B Fig. 3). Make this connection by aligning both arrow markings and push- inwards to connect (Use extreme caution when making this 3.
- Page 4 9. Insert Add-a-fuse to vehicles fuse box positions F5 (XJ/R) or F3, F4, F5, F11, F13 (XK/R) (Or any capable or supplying 12V when ignition key is in ACC/ON positions only) Note: If aforementioned fuse position is occupied; remove said fuse and insert to vacant slot on Add-a-fuse circuit.
- Page 5 Optional USB extension cable installation Please note: Because this module installs in trunk/hatch; we highly recommend optional USB dash mount extension cable (6 ft.) to extends the module built-in USB charging port (See Fig. 12) inside the cabin etc. USB port supports software updates and charging only.
- Page 6 Pairing Pairing varies among devices but basic steps are the same. This process is done upon initial install and will not have to be repeated Turn ignition and radio “ON” The module RED LED (See Fig. 12) glows solid Fig. 12 2.
-
Page 7: Feature Comparison Chart
Feature comparison chart Steaming operation Turn ignition and radio ON. (Module red LED should glow) Press the radio “CD” button. Expect CD playback unless magazine is Feature BTA-JAG98 BTH-JAG98 BTH-JAG98R empty. Requires CD changer ✓ ✓ ✓ Retains CD playback ✓... - Page 8 Without starting a debate about wired vs. wireless; we will answer based our connector) and flex (bend) the “horse shoe-shaped” pin holder tab upward own experience: The BTA-JAG98 sounded great in our 2002 XJR with Alpine or as seen in Fig. 17. Reconnect and if issue remain, repeat this step if Premium system.
- Page 9 •We recommend professional installation For additional support email support@discountcarstereo.com © 1995-Jan-25 Discount Car Stereo, Inc. All rights reserved. Information in this document is subject to change without notice. Other products and companies referred to herein are Fig. 18 trademarks or registered trademarks of their respective companies or mark holders.
