Item # 0000 000 000
Model # FLS71008

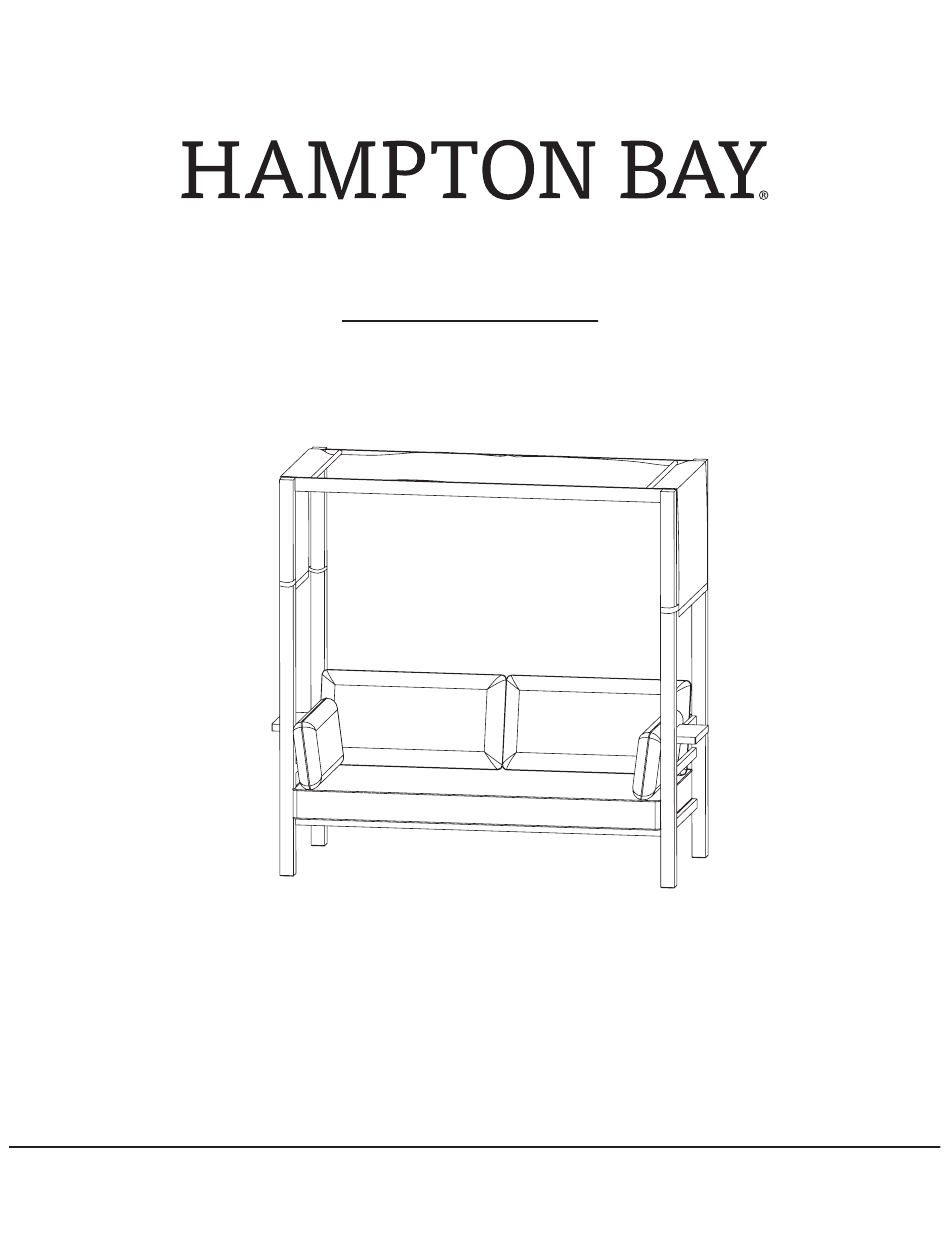

USE AND CARE GUIDE
CANYON DAYBED WITH ARM SHELF
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HOMEDEPOT.CA
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this daybed. We strive to continually
create quality products designed to enhance your home. Visit us onlineto see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Related Manuals for HAMPTON BAY CANYON FLS71008
Summary of Contents for HAMPTON BAY CANYON FLS71008
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this daybed. We strive to continually create quality products designed to enhance your home. Visit us onlineto see our full line of products available for your home improvement needs.
-
Page 2: Table Of Contents
Table of Contents Table of Contents........2 Pre-Assembly. -
Page 3: Warranty
Warranty 3 YEAR FRAME AND FABRIC LIMITED WARRANTY WHAT IS COVERED We warrant the frame to be free of manufacturing defects to the original purchaser for three years, and the fabric to have three year limited warranty. WHAT IS NOT COVERED It remains the customer’s responsibility for freight and packaging charges to and from our service center. -
Page 4: Package Contents
Pre-Assembly (continued) PACKAGE CONTENTS Quantity Part Description Canopy Left Arm Right Arm Top Frame Back Seat Arm Shelf Back Cushion Pillow Seat Cushion... -
Page 5: Assembly
Assembly Connecting the Seat, the Back and the Top Frame to the Left Arm Place the left arm (B) on a soft surface. Attach the seat (F) to the left arm (B) using M6x30 combination bolts (BB). Attach the back (E) and the top frame (D) to the left arm (B) using M6x20 combination bolts (AA). Do not tighten all bolts at this step. - Page 6 Assembly (continued) Connecting the Arm Shelves to the Left Arm and the Right Arm Attach the arm shelves (G) to the left arm(B) and the right arm(C) using M6x50 combination bolts (CC). Do not tighten all bolts at this step. NOTE: Loosely tighten all the bolts using the hex wrench (DD).
- Page 7 Assembly (continued) Placing the Canopy Through the Top Frame Tube Place the canopy (A) through the top frame, as shown below. Putting the Seat Cushion, the Back Cushions and the Pillows to the Assembled Daybed Turn the daybed right side up. Put the seat cushion (J), the back cushions (H) and the pillows (I) to nish the assembly of the daybed.
-
Page 8: Care And Cleaning
Care Care and Cleaning For best results, clean the frame and cushions with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate. Do not clean with abrrasive materials, bleach or solvents. Keep the daybed out of fire, extreme heat, freezing conditions, and inclement weather as in rain, hail, sleet, snow, or wind. - Page 9 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HOMEDEPOT.CA Retain this manual for future use. For certification use only...
