Model # FRA80665-ST
USE AND CARE GUIDE
LADY LAKE WOVEN 7-PIECE DINING SET
Questions, problems, missing parts? Before returning to the store
call Hampton Bay Customer Service.
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-877-527-0313
HOMEDEPOT.CA
THANK YOU
We appreciate the trust and con dence you have placed in Hampton Bay through the purchase of this dining set. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Related Manuals for HAMPTON BAY LADY LAKE FRA80665-ST
Summary of Contents for HAMPTON BAY LADY LAKE FRA80665-ST

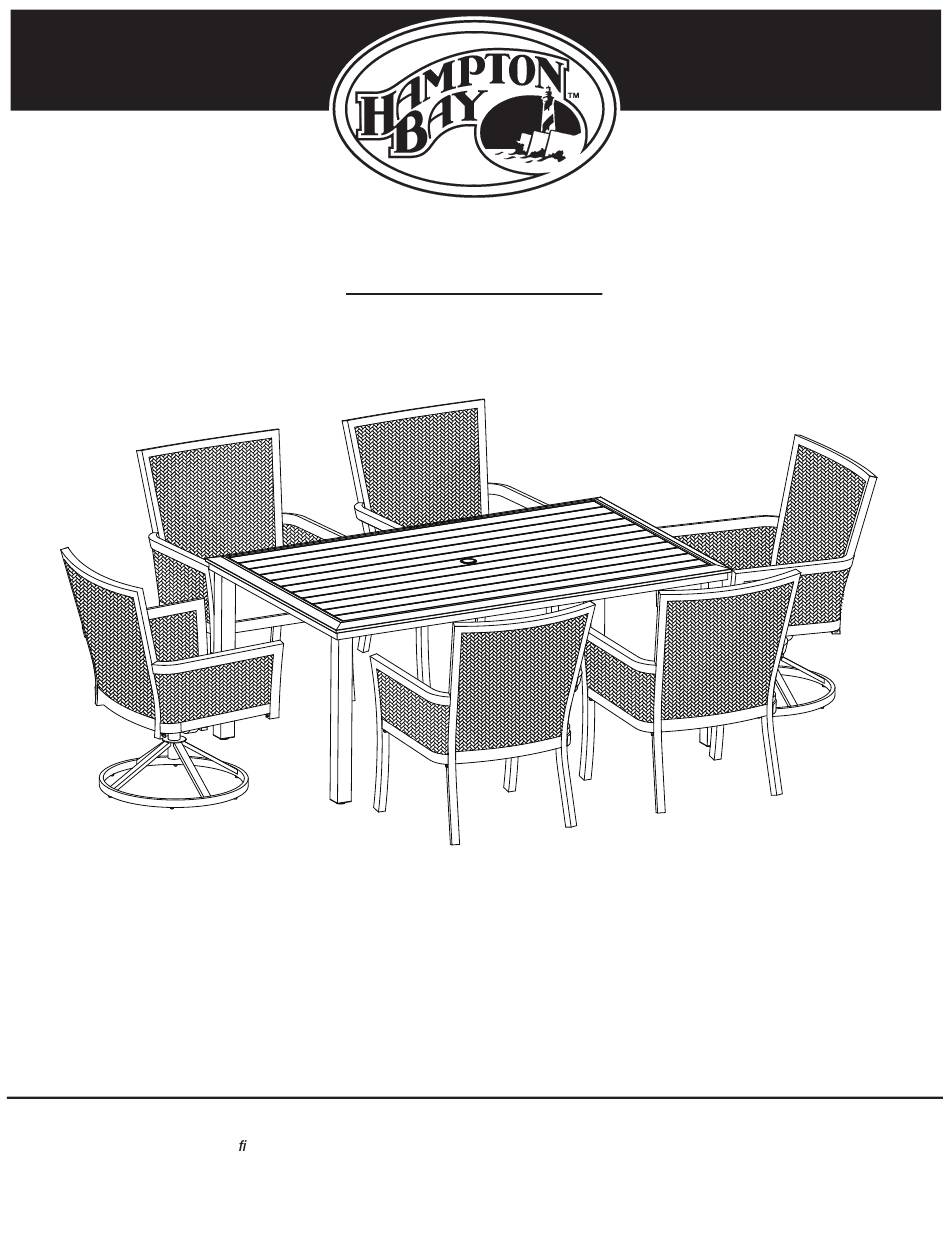

- Page 1 THANK YOU We appreciate the trust and con dence you have placed in Hampton Bay through the purchase of this dining set. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
-
Page 2: Table Of Contents
Table of Contents Table of Contents ............2 Pre-Assembly ..............3 Planning Assembly ..............3 Safety Information ............2 Hardware Included ..............3 Product Caution ..............2 Stationary Chair Package Contents ......... . . 4 Safety Warnings ..............2 Swivel Chair Package Contents ..........5 Warranty ................ -
Page 3: Pre-Assembly
Pre-Assembly PLANNING ASSEMBLY Read all instructions before assembly. To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard. NOTE: More than one person may be required to assemble this product. HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity... -
Page 4: Stationary Chair Package Contents
Pre-Assembly (continued) STATIONARY CHAIR PACKAGE CONTENTS Part Description Quantity Stationary chair frame Right panel Left panel Seat cushion Lumbar pillow... -
Page 5: Swivel Chair Package Contents
Pre-Assembly (continued) SWIVEL CHAIR PACKAGE CONTENTS Part Description Quantity Right panel Left panel Swivel chair frame Swivel base Seat cushion Lumbar pillow HOMEDEPOT.CA Please contact 1-877-527-0313 for further assistance. - Page 6 Pre-Assembly (continued) TABLE PACKAGE CONTENTS Part Description Quantity Table top Table leg Umbrella ring...
-
Page 7: Stationary Chair Assembly
Stationary Chair Assembly Connecting the left panel to the stationary chair frame Place the stationary chair frame (A) on a soft surface. Insert the left panel (C) to the chair frame (A), as shown below. Repeat this step for the right panel (B) NOTE : Loosely tighten all the bolts using the hex wrench (KK). - Page 8 Stationary Chair Assembly (continued) Securing the left panel Secure the left panel (C) to the stationary chair frame (A) using M6x18 bolts (AA) and M6 washers (EE). Repeat this step for the right panel (B). NOTE : Loosely tighten all the bolts using the hex wrench (KK).
-
Page 9: Tightening The Bolts
Stationary Chair Assembly (continued) Tightening the bolts Once all of the bolts are in place, fully tighten the bolts. Turn the chair right side up. Ensure all connections are secure before use. Place the seat cushion (F) and the lumbar pillow (G) on the chair. HOMEDEPOT.CA Please contact 1-877-527-0313 for further assistance. -
Page 10: Swivel Chair Assembly
Swivel Chair Assembly Connecting the left panel to the swivel chair frame Place the swivel chair frame (D) on a soft surface. Insert the left panel (C) to the chair frame (D), as shown below. Repeat this step for the right panel (B). NOTE : Loosely tighten all the bolts using the hex wrench (KK). - Page 11 Swivel Chair Assembly (continued) Securing the left panel Secure the left panel (C) to the swivel chair frame (D) using M6x18 bolts (AA) and M6 washers (EE). Repeat this step for the right panel (B). NOTE : Loosely tighten all the bolts using the hex wrench (KK). HOMEDEPOT.CA Please contact 1-877-527-0313 for further assistance.
- Page 12 Swivel Chair Assembly (continued) Connecting the swivel base to the swivel chair frame Attach the swivel base (E) to the assembled chair seat (D) by inserting M8x35 hex bolts (CC) through the metal sheet (HH), the assembled chair seat (D), the swivel base (E), M8 washers (FF), spring washers (GG), and into M8 nuts (II), as shown below. Connect the swivel base (E) to the plate (1) on the assembled chair seat (D) by inserting M8x30 hex bolts (BB), through the metal sheet (HH), the plate (1), the swivel base (E), M8 washers (FF), spring washers (GG), and into M8 nuts (II).
- Page 13 Swivel Chair Assembly (continued) Tightening the bolts Once all of the bolts are in place, fully tighten the bolts. Turn the chair right side up. Ensure all connections are secure before use. Place the seat cushion (F) and the back cushion (G) on the swivel chair. HOMEDEPOT.CA Please contact 1-877-527-0313 for further assistance.
- Page 14 Table Assembly Connecting the table legs to the table top Place the table top (H) upside down on a soft surface. Attach the table legs (I) to the table top (H) using M6x45 hex bolts (DD), spring washers (GG) and M8 washers (FF), as shown below.
-
Page 15: Care And Cleaning
Table Assembly (continued) Tightening the bolts Once all of the bolts are in place, fully tighten the bolts. Turn the table right side up. Ensure all connections are secure before use. Insert the umbrella ring (J) into the table top (H). Care and Cleaning For best results, clean the dining set with a damp cloth and dry thoroughly. - Page 16 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service. 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1- 877-527-0313 HOMEDEPOT.CA Retain this manual for future use.
