Item # 1004 308 542
Model # FCS60610R-ST-BC
USE AND CARE GUIDE

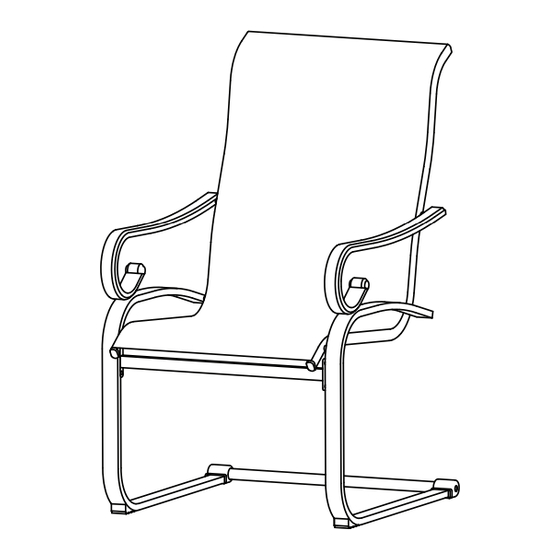

CRESTRIDGE 6PK PADDED SLING DINING CHAIR - CONLEY BLUE SLING
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
We appreciate the trust and conidence you have placed in Hampton Bay through the purchase of this pergola. We strive to continually create quality
products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Related Manuals for HAMPTON BAY FCS60610R-ST-BC
Summary of Contents for HAMPTON BAY FCS60610R-ST-BC
- Page 1 THANK YOU We appreciate the trust and conidence you have placed in Hampton Bay through the purchase of this pergola. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
-
Page 2: Table Of Contents
Table of Contents Table of Contents........2 Pre-Assembly. -
Page 3: Warranty
Warranty 3 YEAR FRAME AND 2 YEAR FABRIC LIMITED WARRANTY WHAT IS COVERED We warrant the frames to be free of manufacturing defects to the original purchaser for three years, and a two year limited warranty for the fabric. WHAT IS NOT COVERED It remains the customer’s responsibility for freight and packaging charges to and from our service center. -
Page 4: Hardware Included
Pre-assembly (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity M6x15 Combination Bolt 24+1 M6x30 Combination Bolt 24+1 M6x25 Bolt 12+1 M8x30 Combination Bolt 12+1 Hex Wrench PACKAGE CONTENTS Part Description Quantity Sling Bucket Right Arm Left Arm Connector Bar Support Bar... -
Page 5: Assembly
Assembly Connecting The Sling Bucket, Connector Bar, And Support Bar To The Right Arm Place the right arm (B) on a soft surface. Attach the sling bucket (A) to the right arm (B) using M6x30 combination bolts (BB) and an M8x30 combination bolt (DD), as shown below. Attach the connector bar (D) to the right arm (B) using M6x15 combination bolts (AA). - Page 6 Assembly (continued) Securing The Support Bar Turn the chair right side up. Tighten the support bar (E) to the two chair arms (B&C) using M6 x25 bolts (CC). Do not fully tighten all bolts at this step. Tightening All Bolts Once all of the bolts are in place, fully tighten all the bolts using the hex wrench (EE).
-
Page 7: Care And Cleaning
Care Care and Cleaning For best results, clean the frame and fabric with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate. Do not clean with abrrasive materials, bleach, or solvents. Store the chair in a dry sheltered place when not in use. - Page 8 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use. For certification use only...
