Item # 1001 581 647
Model # FCS60610RD-ST
USE AND CARE GUIDE

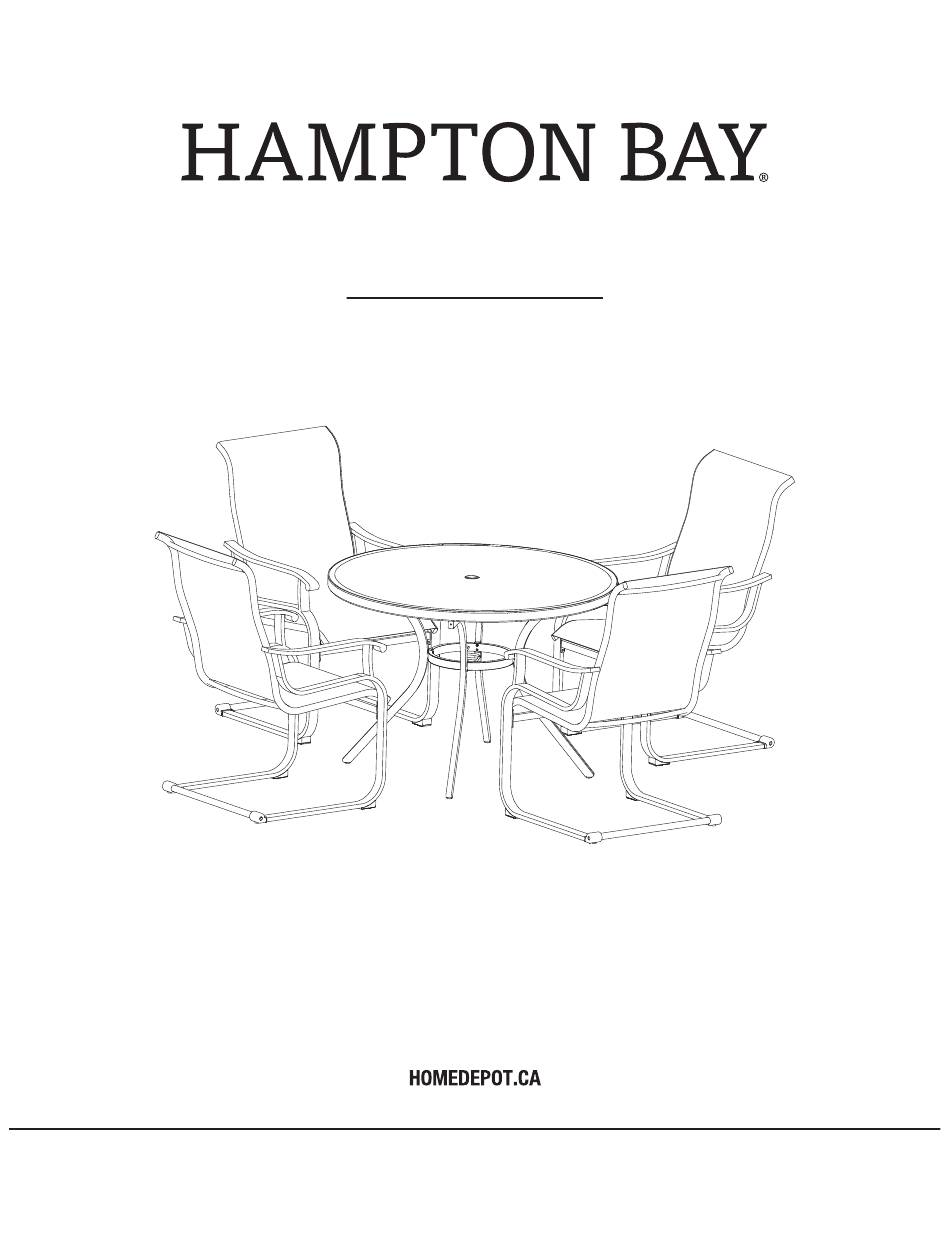

SLATEFORD 5PC DINING SET
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this set. We strive to continually create quality
products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HAMPTON BAY SLATEFORD FCS60610RD-ST
Summary of Contents for HAMPTON BAY SLATEFORD FCS60610RD-ST
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this set. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
-
Page 2: Table Of Contents
Table of Contents Table of Contents........2 Pre-Assembly. -
Page 3: Warranty
Warranty 3 YEAR FRAME AND 2 YEAR FABRIC LIMITED WARRANTY WHAT IS COVERED We warrant the frames to be free of manufacturing defects to the original purchaser for three years, and a two year limited warranty for the fabric. WHAT IS NOT COVERED It remains the customer’s responsibility for freight and packaging charges to and from our service center. -
Page 4: Hardware Included
Pre-assembly (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity M6x15 Combination Bolt 24+2 M6x25 Combination Bolt M6x30 Combination Bolt M6x25 Bolt M8x30 Combination Bolt Hex Wrench CHAIR PACKAGE CONTENTS Part Description Quantity Sling Bucket Right Arm Left Arm Connector Bar Support Bar... - Page 5 Pre-assembly (continued) TABLE PACKAGE CONTENTS Part Description Quantity Table Top Table Leg Leg Connector HOMEDEPOT.CA Please contact 1-855-HD-HAMPTON for further assistance. .
-
Page 6: Chair Assembly
Chair Assembly Connecting the Sling Bucket, Connector Bar and Support Bar to the Right Arm NOTE: Loosely tighten all bolts using the hex wrench (FF). Place the right arm (B) on a soft surface. Attach the sling bucket (A) to the right arm (B) using M6x30 combination bolts (CC) and M8x30 combination bolt (EE). Attach the connector bar (D) to the right arm (B) using M6x15 combination bolts (AA). - Page 7 Chair Assembly (continued) Securing the Support Bar NOTE: Loosely tighten all bolts using the hex wrench (FF). Turn the chair right side up. Tighten the support bar (E) to the two chair arms (B & C) using M6x25 bolts (DD). Do not tighten all bolts at this step.
- Page 8 Table Assembly Attaching the Table Legs to the Table Top NOTE: Loosely tighten all bolts using the hex wrench (FF). Place the table top (F) upside down on a soft surface. Attach the table legs (G) to the table top (F) using M6x15 combination bolts (AA). Do not tighten all bolts at this step.
-
Page 9: Care And Cleaning
Table Assembly (continued) Tightening the Bolts Once all of the bolts are in place, fully tighten all the bolts using hex wrench (FF). Ensure that all connections are secure. Care Care and Cleaning For best results, clean the frame and fabric with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate. - Page 10 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON Retain this manual for future use. For certification use only...
