Item #0000 000 000
Model #FRS80865BL-ST1T
USE AND CARE GUIDE

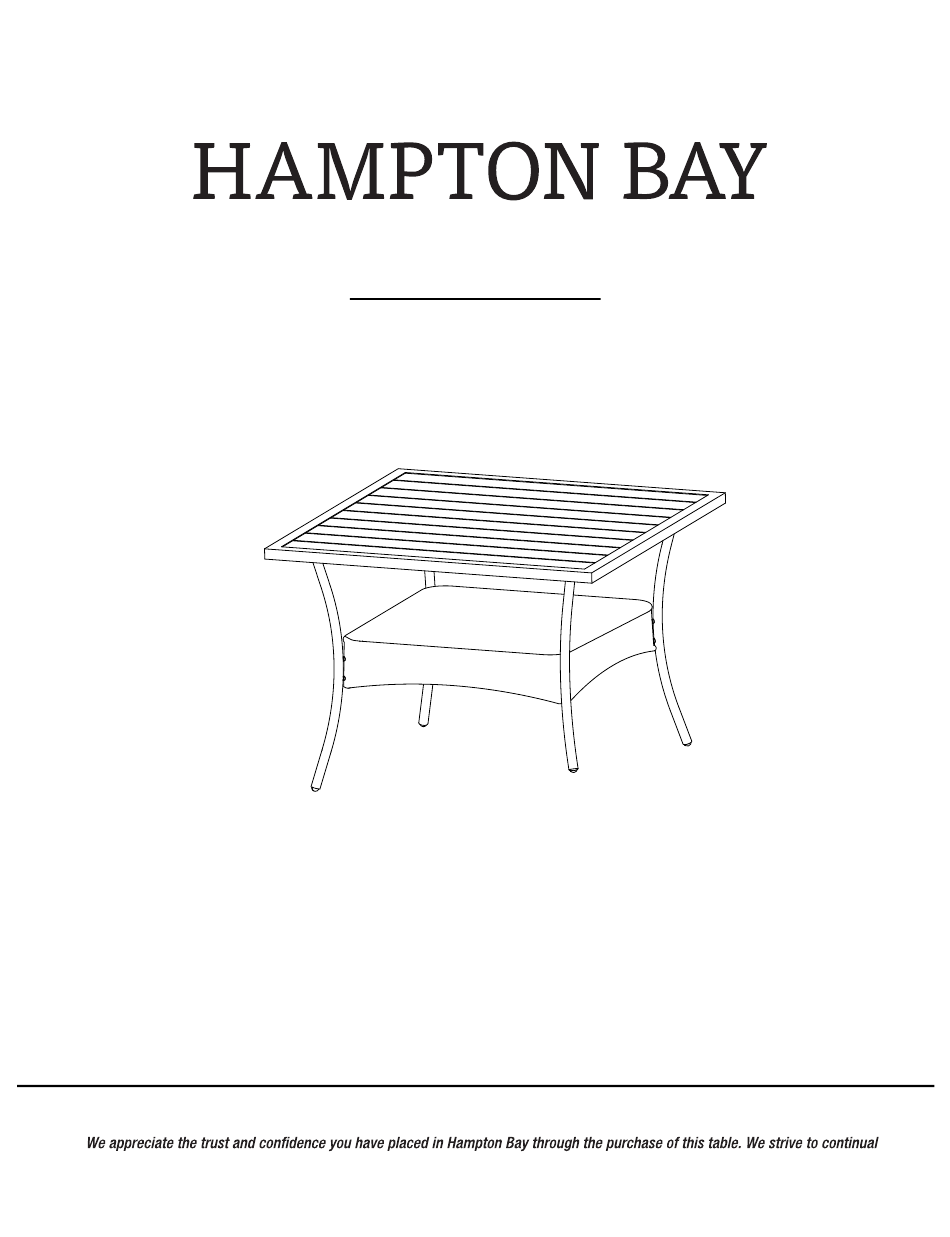

BEACON PARK CHOW DINING TABLE
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HOMEDEPOT.CA
THANK YOU
ly
create quality products designed to enhance your home. Visit us onlineto see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HAMPTON BAY BEACON PARK CHOW FRS80865BL-ST1T
Summary of Contents for HAMPTON BAY BEACON PARK CHOW FRS80865BL-ST1T
- Page 1 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HOMEDEPOT.CA THANK YOU create quality products designed to enhance your home. Visit us onlineto see our full line of products available for your home improvement needs. Thank you for choosing Hampton Bay!
- Page 2 Table of Contents Table of Contents ............2 Pre-Assembly ..............3 Important Safety Instructions ........2 Planning Assembly ..............3 Save These Instructions ............2 Hardware Included ..............3 Read All Instructions Before Use ..........2 Package Contents ..............4 Warranty ................
- Page 3 Warranty 2 YEAR LIMITED WARRANTY WHAT IS COVERED We warrant the frames to be free of manufacturing defects to the original purchaser for two WHAT IS NOT COVERED It remains the customer’s responsibility for freight and packaging charges to and from our service center. This warranty does not cover s warranty.
- Page 4 Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Table top Table leg Shelf...
- Page 5 Assembly ATTACHING THE TABLE LEG TO THE TABLE TOP Place the table top (A) upside down on a soft surface. Attach the table legs (B) to the table top (A) using M6x20 combination bolts (AA). Do not fully tighten the bolt at this step. NOTE : Loosely tighten all bolts using the hex wrench (CC).
- Page 6 Assembly (continued) ATTACHING THE SHELF TO THE TABLE LEG Attach the shelf (C) to the table legs (B) using M6x30 combination bolts (BB). Do not fully tighten the bolts at this step. NOTE : Loosely tighten all bolts using the hex wrench (CC).
- Page 7 Assembly (continued) CHECKING THE TABLE Once all of the bolts are in place, fully tighten the bolts using the hex wrench (CC). Turn the table right side up. Ensure all connections are secure before use. Care and Cleaning For best results, clean the table with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate.
- Page 8 1-855-HD-HAMPTON HOMEDEPOT.CA For certi cation use only Factory ID # FWS80533A...
