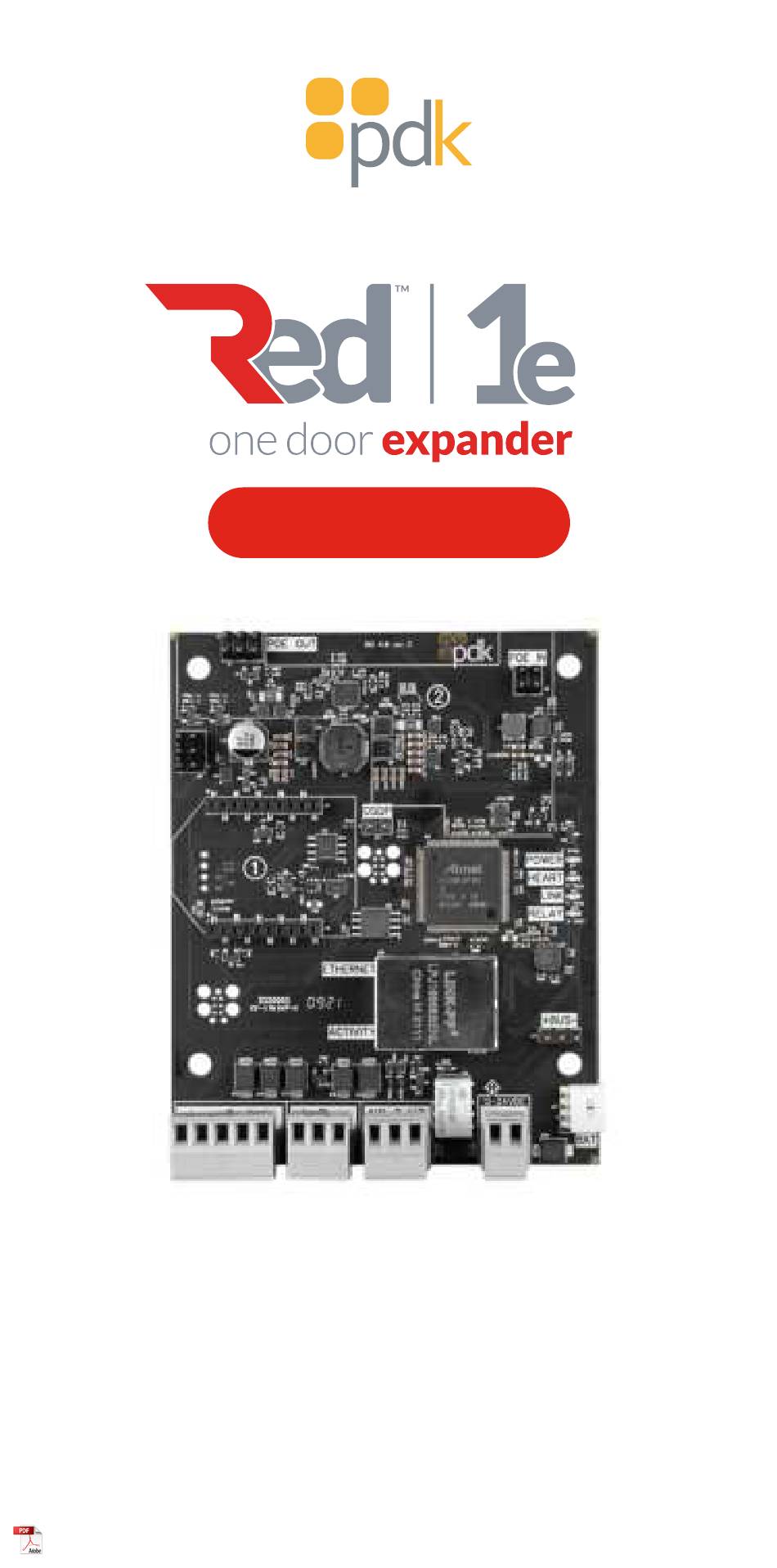

- Page 1 Quick Start Guide View the user manual here: prodatakey.zendesk.com PN : R1E www.prodatakey.com 801.317.8802 Copyright © 2022 ProdataKey Inc. All rights reserved. Pdk, Pdk io, and the Red logos are trademarks of ProdataKey Inc. REV 12022022...
- Page 2 1. Mounting the Power Supplies Power Supply Power Supply Board Board TRIGGER EOL + AUX – RESET SUPERVISED TRIGGER EOL + AUX – RESET SUPERVISED Backup Backup Battery Battery Mount Line up the power supplies with the top mounting brackets in the enclosure. Using the supplied screws, fasten the power supplies to the enclosure.
- Page 3 2. Mounting the Expander Board TRIGGER EOL + AUX – TRIGGER EOL + AUX – RESET RESET SUPERVISED SUPERVISED Expansion Expansion Expansion Board Board Board Expansion Expansion Expansion Board Board Board Mount Select your desired mounting location within the enclosure. Line up the expander board with the desired mounting brackets.
- Page 4 3. Reader Connection Red 1 Expander OSDP POWER HEART LINK Reader RELAY OSDP 0 1 L 0 1 L 12-24VDC 12-24VDC 0 1 L OSDP Wiring Reader - The reader is mounted at the door with a 22/5 or 22/6 wire running to the door controller.
- Page 5 4. Input A / DPS Connection DPS Contact Double DPS Contact DPS (Door Position Sensor) - The DPS is mounted on the door frame with a 22/2 wire running from the DPS to the controller. Wire the DPS to the controller as shown above.
- Page 6 5. Input B / REX Connection 0 1 L 12-24VDC If using a powered REX, run to any 12VDC output on controller. Maglock Maglock - When installing a Maglock, it is typical to install a REX (request to exit) at the door for free egress. Run an 18/2 wire from the maglock to the controller and REX as shown.
- Page 7 6. Locking Relay Diode - The provided diode must be installed when using a strike. Install at the strike with the gray stripe on positive and the black on negative. - Used for maglocks (or strikes in fail-safe configuration). Connect the negative (-) of the maglock or strike to NC on the controller.
- Page 8 Ethernet - All Red controllers come with a built-in RJ45 connection for network connectivity. Once connected, the Red controller is Self-Discoverable from pdk.io using IPV6. Alternatively, you may use IPV4 or assign a static IP using pdk.io if desired. POE OUT...
- Page 9 8. Power Connection TRIGGER EOL + AUX – RESET SUPERVISED AC Power 120VAC 60Hz Powering Board - Connect unswitched AC power (120VAC 60Hz) to terminals marked [L, G, N]. L to hot, N to neutral, G to ground. Use 14 AWG or larger for all power connections.
- Page 10 Controllers accept a Wiegand input, including biometric readers and keypads. OSDP readers are supported by using the included jumper (see OSDP reference guide). Contact pdk support if assistance is needed. - All equipment must meet appropriate UL certifications. UL 294 Compliance For UL-listed installations, all cable runs must be less than 30 meters (98.5’)
- Page 11 OSDP Reference Guide What is OSDP - Open Supervised Device Protocol (OSDP) is an access control communications standard developed by the Security Industry Association to improve interoperability among access control and security products. OSDP brings heightened security and improved functionality. It is more secure than Wiegand and supports AES-128 encryption.
