Summary of Contents for Avidsen Elia SMART 2

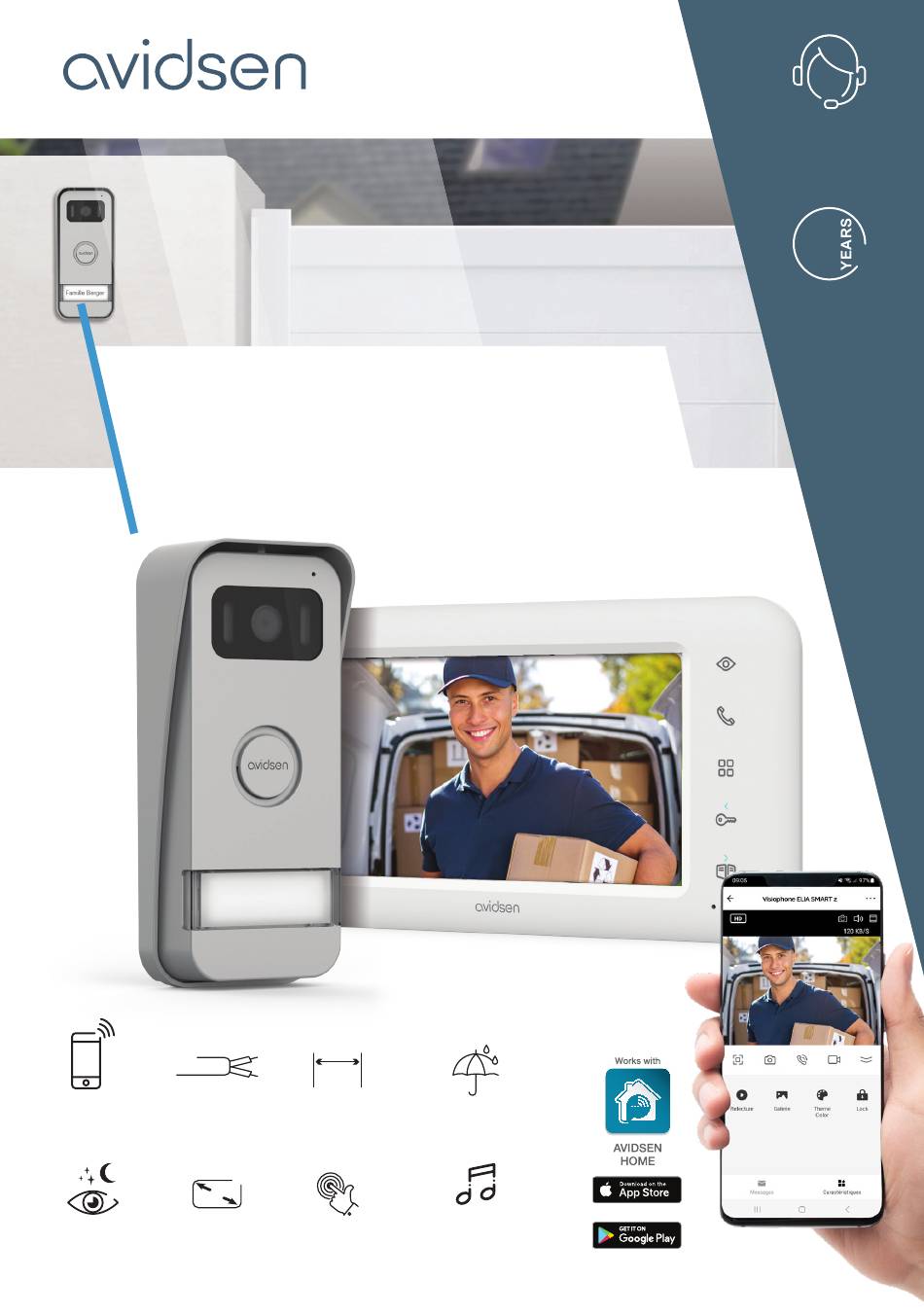

- Page 1 PHONE SUPPORT WARRANTY Élia SMART 2 CONNECTED VIDEOPHONE Ref.112302 100m Connected Connection Range Weather- 2-wire connection resistant iOS 12.0 min. Night Screen Touch Number vision size buttons of melodies Android 6.0 min. www.avidsen.com...
- Page 2 CONTENTS...
-
Page 3: Table Of Contents
A - SAFETY 3 - OPENING AN ELECTRIC LOCK INSTRUCTIONS AND AUTOMATIC CONTROL SYSTEM (OPTIONAL) 1 - INTRODUCTION 4 - MONITOR SETTINGS 2 - MAINTENANCE AND CLEANING E. CONNECTED OPERATION 16 3 - RECYCLING 1 - INSTALLING THE MOBILE APP AND CREATING AN B - PRODUCT ACCOUNT DESCRIPTION... -
Page 5: A - Safety Instructions
A - SAFETY INSTRUCTIONS • The cable between the monitor and intercom 1 - INTRODUCTION panel must not be extended. Avoid junctions (insulating screw joints, soldered joints, etc.). This videophone pairs two modules: a video Your videophone requires a WiFi connection to the receiver-monitor and an easy-to-install and use Internet for the connected functions to work. -
Page 6: B - Product Description
B - PRODUCT DESCRIPTION 1 - KIT CONTENTS Monitor Screws (4 for the monitor, 3 for the intercom panel) Intercom panel Hexagon screwdriver Monitor wall bracket Mains adapter Dowels (4 for the monitor, 3 for the intercom panel) Intercom panel snap-on terminal blocks 2 - MONITOR 7″... -
Page 7: Intercom Panel
B - PRODUCT DESCRIPTION 3 - INTERCOM PANEL Protective hood Microphone Lens Infrared lighting Loudspeaker Call button Name holder Removable connection terminal blocks 4 - WALL BRACKET The monitor is designed to be fixed to the wall. A wall bracket and the necessary fasteners are included. 5 - MAINS ADAPTER A 230 Vac 50 Hz/17 Vdc 1.5 A mains adapter for powering the monitor is included in the kit. -
Page 8: C - Installation
C - INSTALLATION The recommended installation height for the intercom panel is about 160 cm from the ground and 150 cm from the floor for the indoor unit. 50cm 70° 160cm 150cm NOTE: For obvious safety reasons, the connections must only be made after shutting off the power supply. 1 - INTERCOM PANEL INSTALLATION Attach the intercom panel hood to your support using the screws and wall plugs suited to the support (the screws and plugs supplied are suitable for solid walls). -
Page 9: Monitor Installation
C - INSTALLATION Put on the name label. 2 - MONITOR INSTALLATION Attach the wall mount to the wall using the screws and wall plugs suited to the support (the screws and plugs supplied are suitable for solid walls). After connecting the monitor (refer to the “connections” paragraph), fit the monitor onto its support. -
Page 10: Connections
C - INSTALLATION 3 - CONNECTIONS • Do not increase the number of insulating screw joints or connectors on the connecting wire between the intercom panel and the monitor. • Keep the connecting wire between the intercom panel and the monitor more than 50 cm away from any electromagnetic interference (230 V cable, WiFi device, microwave ovens, etc.). -
Page 11: Connection Between The Monitor And The Intercom Panel
C - INSTALLATION The intercom panel terminal blocks are removable for easier assembly. Please note: the terminal blocks must be installed in the right direction. Incorrect installation may lead to random operation and loss of certain functions. 3.1 - CONNECTION BETWEEN THE MONITOR AND THE INTERCOM PANEL Monitor Intercom panel IMPORTANT: connect terminal blocks 3 and 4 directly to the opening/closing contact of the automatic control system... -
Page 12: D - Using The Product
D - USING THE PRODUCT 1 - IDENTIFYING AND SPEAKING TO VISITORS 3 - OPENING AN ELECTRIC LOCK AND AN AUTOMATIC CONTROL SYSTEM (OPTIONAL) The visitor presses the intercom panel’s call button: If the device is equipped with an electric lock and/ or an automatic control system (see “Connections”... -
Page 13: Monitor Settings
D - USING THE PRODUCT Ring volume: 4 - MONITOR SETTINGS If the screen is off, wake up the product using one of the following touch buttons: Browse the menu and its sub-menus by pressing the buttons. To identify a visitor discreetly or simply to look outside, press the button. - Page 14 D - USING THE PRODUCT 4.2.1 - Connectivity: 4.2.2 Video settings: Reset Reset WiFi: Product status on the WiFi network: connected Brightness setting: or not connected. SSID: WiFi network to which the product is connected. UUID: Universal Unique Identifier. Software version: Software version. WIFI : disconnect SSID : UUID : syzh6991 a31e5571c5...
- Page 15 D - USING THE PRODUCT Contrast setting: Press to select the item to be changed and and/or to modify it. Press to confirm the change. 4.2.3 Reset settings: Reset Press to select product reset. Then use the and/or buttons to select the tick. Press confirm reset.
-
Page 16: Connected Operation
E. CONNECTED OPERATION Your Elia Smart 2 videophone has Internet connectivity Once you have entered all the information, click on the and uses the free AvidsenHome app for Android and Get verification code button. In a few seconds, you will receive a confirmation... -
Page 17: Connecting The Videophone
E. CONNECTED OPERATION then press Terminé (Finished). The application automatically detects new products. 2 - CONNECTING THE VIDEOPHONE If you have more than one item to pair (plugs, cameras, thermostat, others), switch on only one item at a time. The following information may vary depending on app updates. - Page 18 E. CONNECTED OPERATION Select your 2.4 GHz or 5 GHz WiFi network (note: 2.2 - CONNECTION VIA THE MENU your smartphone must be connected to the same WiFi network to which the videophone will be connected), The following information may vary depending on app enter your network password and press Suivant updates.
-
Page 19: Using The Avidsenhome App With The Elia Smart Videophone
F. USING THE AVIDSENHOME APP WITH THE ELIA SMART VIDEOPHONE Select your WiFi network (note: your smartphone must be connected to the same WiFi network to which the videophone will be connected), enter your network password and press SUIVANT (NEXT). Please wait while the connection procedure takes place. - Page 20 F. USING THE AVIDSENHOME APP WITH THE ELIA SMART VIDEOPHONE The AvidsenHome app allows you to remotely During a call, you are notified on all smartphones control your videophone and the one or more entries connected to the account to which your videophone is connected to it.
-
Page 21: G - Faq
G. FAQ Symptoms Possible causes Solutions Please contact the technical support You have an out-of-date or incompatible of your device’s manufacturer in version of Android on your device. order to obtain a recent Android version I can’t install the AvidsenHome app on my Google Play checks all the key Android device components needed to run the application... - Page 22 G. FAQ Re-pair your videophone. This will automatically delete it from your old account. If you want to share the videophone The videophone is already paired with with another smartphone, create a Pairing issues another user account new AvidsenHome account on the smartphone and use the “partage”...
-
Page 23: H - Technical And Legal Information
H. TECHNICAL AND LEGAL INFORMATION 1 - TECHNICAL CHARACTERISTICS MONITOR Screen Ultra-flat 7″ colour LCD Video standard PAL/NTSC Resolution 1024 x 600 Power supply Via 230 VAC 50 Hz/17 VDC 1.5 A mains adapter (included) Protection Short circuit and reverse polarity protection Connections Full 2-wire connection Connectivity... -
Page 24: Warranty
Avidsen undertakes to keep a stock of spare parts for this product throughout the contractual warranty period. - Page 25 Élia SMART 2 Avidsen 19 avenue Marcel Dassault - ZAC des Deux Lions 37200 Tours - France www.avidsen.com Photographs and illustrations non-binding/©AdobeStock.com/© Avidsen France 2025...
