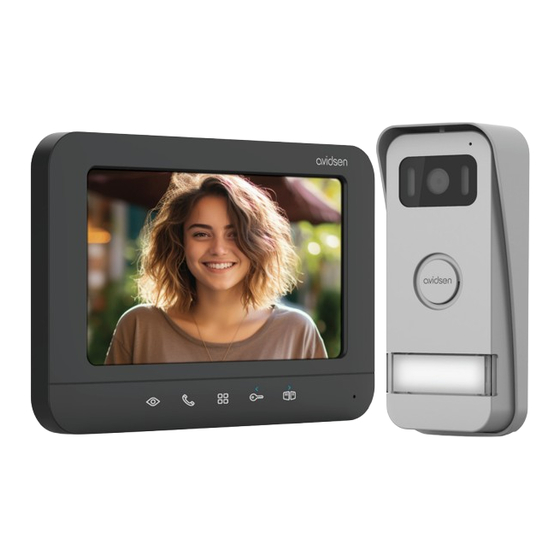

- Page 1 PRIMA VIDEO INTERCOM 2 CONNECTION WIRES Ref.112300 100m Weather- 2-wire Range Door resistant connection Check POLARITY PROTECT Night Screen Touch-sensitive Number vision size keys of melodies www.avidsen.com...
-
Page 3: Table Of Contents
CONTENTS A - SAFETY D - USING THE INSTRUCTIONS PRODUCT 1 - IDENTIFY AND SPEAK TO THE VISITOR 1 - INTRODUCTION 2 - ACTIVATE THE INTERCOM PANEL FROM THE 2 - MAINTENANCE AND CLEANING MONITOR 3 - RECYCLING 3 - OPENING AN ELECTRIC LOCK AND AN AUTOMATIC CONTROL SYSTEM (OPTIONAL) B - PRODUCT... -
Page 5: A - Safety Instructions
A - SAFETY INSTRUCTIONS 1 - INTRODUCTION 3 - RECYCLING This video intercom system pairs two modules: a This symbol means that devices no longer receiver-monitor and an easy-to-install and use in use should not be disposed of with intercom panel. household waste. -
Page 6: B - Product Description
B - PRODUCT DESCRIPTION 1 - CONTENTS OF THE KIT Monitor Screws (2 for the monitor, 3 for the intercom panel) Intercom panel Hex screwdriver Monitor wall bracket Mains adaptor Dowels (2 for the monitor, 3 for the intercom panel) Intercom panel snap-on terminal blocks 2 - MONITOR 8 10... -
Page 7: Intercom Panel
B - PRODUCT DESCRIPTION 3 - INTERCOM PANEL Protective hood Microphone Lens Infrared lighting Loudspeaker Call button Name holder Removable connection terminal blocks 4 - WALL BRACKET The monitor is designed to be fixed to the wall. A wall bracket and the necessary fasteners are included. 5 - MAINS ADAPTER A 230 VAC 50 Hz/17 VDC 1.5 A mains adapter for powering the monitor is included in the kit. -
Page 8: C - Installation
C - INSTALLATION The recommended installation height for the intercom panel is about 160 cm from the ground and 150 cm from the floor for the indoor unit. 50cm 70° 160cm 150cm NOTE: For obvious safety reasons, the connections must only be made after shutting off the power supply. 1 - INTERCOM PANEL INSTALLATION Attach the intercom panel hood to your support using the screws and wall plugs suited to the support (the screws and plugs supplied are suitable for solid walls). - Page 9 C - INSTALLATION Then screw the intercom panel to the hood with the screw provided. Put on the name label.
-
Page 10: Installing The Monitor
C - INSTALLATION 2 - INSTALLING THE MONITOR Attach the wall mount to the wall using the screws and wall plugs suited to the support (the screws and plugs supplied are suitable for solid walls). After connecting the monitor (refer to the “connections” paragraph), fit the monitor onto its support. 3 - CONNECTIONS •... -
Page 11: Connection Between The Monitor And The Intercom Panel
C - INSTALLATION Cable length Cross-section to use 0 to 50 m 0.75 mm 50 m to 100 m 1.5 mm Between the intercom panel and an electric strike plate (not included) Use a 12V/1.1A maximum electric strike plate with mechanical memory. For the connection between the intercom panel and the door release, use a cable of this kind: Cable length Cross-section to use... -
Page 12: D - Using The Product
D - USING THE PRODUCT 3 - OPENING AN ELECTRIC LOCK AND AN 1 - IDENTIFY AND SPEAK TO THE VISITOR AUTOMATIC CONTROL SYSTEM (OPTIONAL) The visitor presses the intercom panel’s call button: If the device is equipped with an electric lock and/ or an automatic control system (see “Connection”... -
Page 13: Monitor Settings
D - USING THE PRODUCT 4 - MONITOR SETTINGS With the screen on, press the button to display the following screen: Browse the sub-menus by pressing the buttons CON . COL . CALL . INCOME . Once in the RING sub-menu, press the button to RING . -
Page 14: E - Technical And Legal Information
E - TECHNICAL AND LEGAL INFORMATION 1 - TECHNICAL CHARACTERISTICS MONITOR Ultra-flat 7" colour LCD Screen PAL/NTSC Video standard 800 x 480 Resolution with 230 VAC mains adapter Power supply 50 Hz/17 VDC 1,5 A included Short circuit and reverse polarity protection Protection 2 connection wires Transmission system (audio and video) -
Page 15: Warranty
• The parts of this product must not be opened or repaired by any persons not employed by Avidsen undertakes to keep a stock of spare parts Avidsen. for this product throughout the contractual warranty • The warranty will be void if the device is tampered period. - Page 16 19 Avenue Marcel Dassault ZAC des Deux Lions - 37200 Tours - France Photographs and illustrations non-binding/©AdobeStock.com/© Avidsen France 2023...
