Avidsen Elia Solar Wave User Manual

Videophone

Hide thumbs

page of 20

/ 20
Bookmarks

Quick Links

Download this manual

PHONE

SUPPORT

WARRANTY

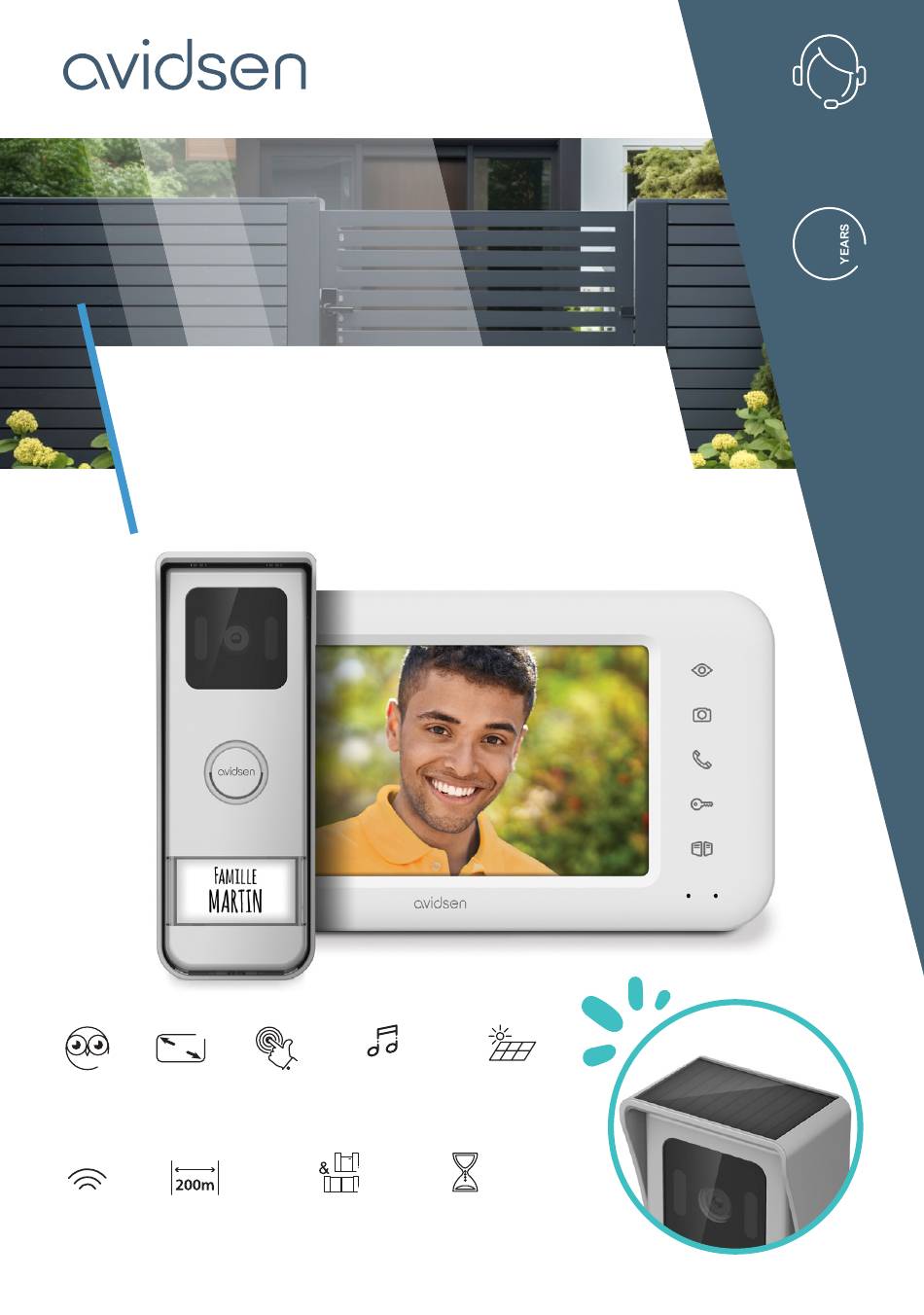

Élia Solar Wave

VIDEOPHONE

Ref.112296

solar-powered

Night

Screen

Touch-

Number

intercom panel

vision

size

sensitive

of melodies

buttons

Gate and

Designed

Wireless

Open

to last

connection

range

strike

compatible

* requires a transformer (optional)

www.avidsen.com

Need help?

Do you have a question about the Elia Solar Wave and is the answer not in the manual?

Questions and answers

Summary of Contents for Avidsen Elia Solar Wave

Page 1 PHONE SUPPORT WARRANTY Élia Solar Wave VIDEOPHONE Ref.112296 solar-powered Night Screen Touch- Number intercom panel vision size sensitive of melodies buttons Gate and Designed Wireless Open to last connection range strike compatible * requires a transformer (optional) www.avidsen.com...
Page 2 CONTENTS A - SAFETY C - INSTALLATION INSTRUCTIONS 1 - INSTALLING THE INTERCOM PANEL 1 - INTRODUCTION 1.1 - INITIAL INSTALLATION08 2 - MAINTENANCE AND INSTALLATION 1.2 - PAIRING/UNPAIRING THE SCREEN GUIDANCE WITH THE INTERCOM PANEL 3 - RECYCLING 1.3 - OUTDOOR INSTALLATION AND CONNECTION 2 - MONITOR INSTALLATION B - PRODUCT...
Page 3 4.2 - DOORBELL MENU AND SOUND VOLUME CONTROL 4.3 - PHOTO GALLERY 4.4 - ADVANCED SETTINGS MENU 4.5 - VIDEO GALLERY 5 - MEANING OF THE PRODUCT'S INDICATOR LIGHTS E - FAQ F - TECHNICAL AND LEGAL INFORMATION 1 - TECHNICAL CHARACTERISTICS 2 - WARRANTY 3 - HELP AND ADVICE 4 - PRODUCT RETURNS/AFTER-SALES...
Page 4 A - SAFETY INSTRUCTIONS 1 - INTRODUCTION Foundation wall -40 m This video intercom system pairs two modules: a Brick, concrete, concrete blocks -30 m receiver-monitor and an easy-to-install and use Lift or metal obstacle -20 m intercom panel. Metal cabinet -10 m Key features: Drywall or plasterboard lining...
Page 5 A - SAFETY INSTRUCTIONS Before installing your intercom, it is important to check the following points: • Do not install in cases of extreme humidity, temperatures, corrosion risk or dust. • Do not expose the camera lens to direct sunlight, rain or high humidity.
Page 6 B - PRODUCT DESCRIPTION 1 - KIT CONTENTS DC5V 6Vmax Monitor Mains/USB-C adapter Intercom panel Screwdriver for the security screw on the intercom panel Dowels (2 for the monitor, 4 for the intercom panel) Tool for pairing the screen with the intercom panel Screws (2 for the monitor, 4 for the intercom panel) 2 - MONITOR...
Page 7 B - PRODUCT DESCRIPTION 3 - INTERCOM PANEL DC5V DC5V 6Vmax 6Vmax Protective hood with integrated solar panel ON/OFF button Lens Connection terminals: DC5V and GND: for the solar panel Loudspeaker L1 and L2 for strike plate control G1 and G2 for automated entryway control Name holder and call button Battery charge indicator Microphone...
Page 8 NOTE: For obvious safety reasons, the connections must only be made after shutting off the power supply. Diagram: This diagram shows the different components involved in installing the Elia Solar Wave videophone, such as the intercom panel, monitor, mains adapter and any optional devices.
Page 9 C - INSTALLATION 1.2 PAIRING/UNPAIRING THE SCREEN WITH THE INTERCOM PANEL Before completing the installation, we recommend performing a function test. Pair the intercom panel with the screen, then place the intercom panel in your desired location. Ensure that communication between the intercom panel and the screen is properly established.
Page 10 C - INSTALLATION Next, use the provided tool to press and hold the pairing button (11) on the right side of the intercom panel until the image appears on the screen. The image should display within 5 seconds. Unpairing the screen from the intercom panel If you wish to unpair the screen from the intercom panel, follow the steps below.
Page 11 C - INSTALLATION 1.3.2 Wiring You can connect and use an electric strike plate with mechanical memory (not supplied) with your intercom panel. Between the monitor and the intercom panel (200 m maximum open range) To maintain optimal audio and video quality, it is recommended to install the screen as close as possible to the intercom panel.
Page 12 C - INSTALLATION 1.3.3 Installation of the intercom panel into its hood After making the connections on the intercom panel, put the intercom panel into the hood. Then screw the intercom panel to the hood with the screw provided. Put on the name label...
Page 13 C - INSTALLATION 2 - MONITOR INSTALLATION Connect the USB-C changer to the monitor. Plug the mains adapter into the mains supply. After connecting the monitor, attach the monitor to the wall. Attach the product to the wall using the screws and wall plugs (the screws and plugs included are suitable for walls made of solid material).
Page 14 D - USING THE PRODUCT 1 - IDENTIFYING AND SPEAKING TO VISITORS 3 - OPENING AN ELECTRIC LOCK AND AN AUTOMATIC CONTROL SYSTEM (OPTIONAL) The visitor presses the intercom panel's call button: Warning: the screen must be switched on and communication enabled before the dry contact and powered output controls can function.
Page 15 D - USING THE PRODUCT 4 - MONITOR SETTINGS Doorbell volume: press to select the item to be changed and and/or to modify it. Press Navigation left or up to confirm the change. Navigation right or down Voice volume: press to select the item to be changed and and/or...
Page 16 D - USING THE PRODUCT Menu for deleting photos and videos 4.5 VIDEO GALLERY Press to enter the menu. Delete all photos: press , select the tick using and/or , then press again. All photos will be deleted. Delete all videos: press , select the tick using and/or...
Page 17 E - FAQ Symptoms Solutions No indicator light on the screen Check the power supply to the device. No response from the intercom Check that the switch is turned ON. Charge the intercom panel when its call button is panel using a 5V USB transformer. pressed The intercom panel responds Repair the screen with the intercom panel.
Page 18 F. TECHNICAL AND LEGAL INFORMATION 1 - TECHNICAL CHARACTERISTICS MONITOR Screen 7" TFT-LCD colour screen Video standard PAL/NTSC Resolution 800 x 480 Power supply Via included 100/240VAC 50-60 Hz/5 VDC 2.0 A mains adapter Connections Wireless Operating range Temperature -10°C to +50°C, humidity up to 85%, non-condensing Number of melodies Dimensions 124 (H) x 218 (W) x 20 (D) mm...
Page 19 • The warranty does not cover damage caused by com. negligence, knocks or accidents.
Page 20 Élia Solar Wave Avidsen 19 avenue Marcel Dassault - ZAC des Deux Lions 37200 Tours - France Photographs and illustrations non-binding/©AdobeStock.com/© Avidsen France 2024...
