DUSK.COM
LIVING I BEDROOM I DINING
Up to 30 minutes
assembly time
This product is intended for domestic use only,not for commercial purposes.

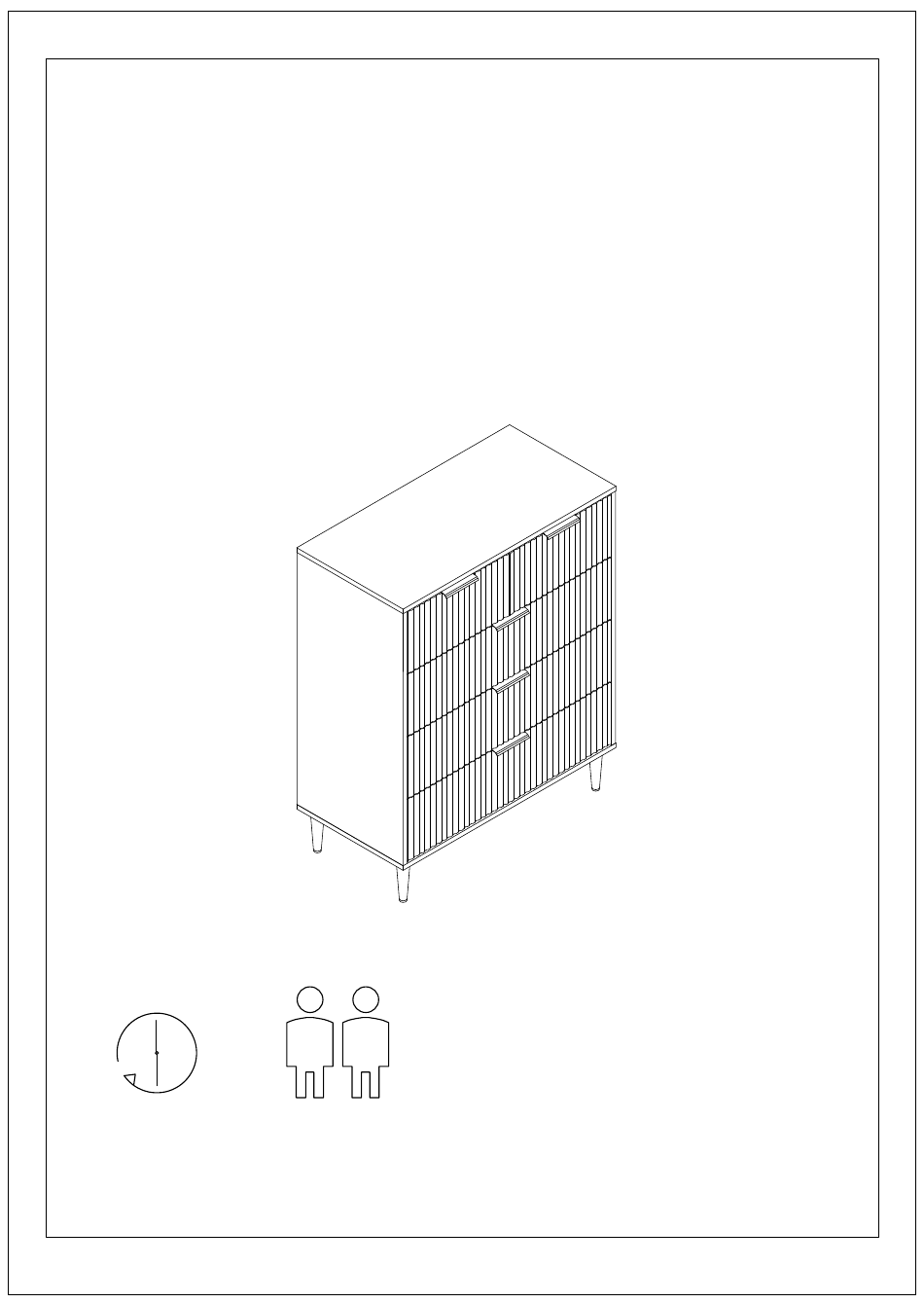

Evie Tall Chest
Two person
assembly
Range Name : EVIE
Box 1 Dimensions : W113xD51xH26.5cm
Product Dimension :W80xD40xH100cm
P-1-18
V-2.0
Advertisement
Related Manuals for DUSK Evie Tall Chest
Summary of Contents for DUSK Evie Tall Chest
- Page 1 DUSK.COM Range Name : EVIE LIVING I BEDROOM I DINING Box 1 Dimensions : W113xD51xH26.5cm Product Dimension :W80xD40xH100cm Evie Tall Chest Up to 30 minutes Two person assembly time assembly This product is intended for domestic use only,not for commercial purposes.
- Page 2 IMPORTANT ASSEMBLY TIP Before you begin, it's best to identify all of the parts and fittings to build your Evie Tall Chest frame. We advise laying these out on the floor to check you have everything, and to familiarise yourself with all of the parts and fittings before building.
-
Page 3: Parts List
Parts list P-3-18 V-2.0... - Page 4 Parts list Before you begin building your Evie Tall Chest,please take a moment to read through the instructions and make surethat you have all the relevant parts listed on the parts check list. Part Number Part Description Quantity Box No...
- Page 5 Fittings Please check you have all the fittings listed below with your product in box 1. Ø8x30mm Dowel M6*35mm Bolt Ø15x9.5mm Cam Lock M3.5*12mm Screw M3*14mm Screw 41pcs+2pcs extra 41pcs+2pcs extra 19pcs+1pc extra 10pcs+1pc extra 8pcs+1pc extra 3mm Allen Key M4*35mm Screw M5*40mm Screw 15x9mm Plastic Buckle...
- Page 6 1. Attach parts to the Top. A x 15 M6*35mm Bolt M4*14mm Screw Wall Bracket 15pcs 2. Attach centre supports to the middle panel. C x 2 F x 2 Ø15x9.5mm Cam Lock M4*35mm Screw Ø8x30mm Dowel 2pcs 3pcs P-6-18 V-2.0...
- Page 7 3. Attach frame to the Left side panel. B x 3 C x 3 Ø15x9.5mm Cam Lock Ø8x30mm Dowel 3pcs 3pcs 4. Attach frame to the Right side panel. C x 3 B x 3 Ø15x9.5mm Cam Lock Ø8x30mm Dowel 3pcs 3pcs P-7-18...
- Page 8 5. Attach frame to the Top. B x 8 C x 6 Ø15x9.5mm Cam Lock Ø8x30mm Dowel 8pcs 6pcs P-8-18 V-2.0...
- Page 9 6. Assemble the back panels. P-9-18 V-2.0...
- Page 10 7. Attach frame to the bottom panel. G x 6 C x 4 3mm Allen Key Ø8x30mm Dowel M5*40mm Screw 4pcs 6pcs P-10-18 V-2.0...
- Page 11 8. Attach the legs to the frame. K x 16 M4*14mm Screw 16pcs 9. Assem ble the drawers. D x 10 A x 26 J x 5 M6*35mm Bolt M3.5*12mm Screw Handle 26pcs 10pcs 5pcs P-11-18 V-2.0...
- Page 12 10. Assemble the drawers. F x 20 M x 3 B x 3 Ø15x9.5mm Cam Lock Ø6x30mm Dowel M4*35mm Screw 3pcs 3pcs 20pcs 11. Assemble the drawers. P-12-18 V-2.0...
- Page 13 12. Assemble the drawers. B x 23 O x 20 M x 3 Cover 20pcs Ø15x9.5mm Cam Lock Ø6x30mm Dowel 23pcs 3pcs P-13-18 V-2.0...
- Page 14 Assemble the drawers in the Chest. P-14-18 V-2.0...
- Page 15 14.Make sure the drawers are in correct position, even and parallel, then attach the plastic buckles. E x 8 I x 8 M3*14mm Screw 15x9mm Plastic Buckle 8pcs 8pcs P-15-18 V-2.0...
- Page 16 15.Make sure the drawers are in correct position,even and parallel. P-16-18 V-2.0...
- Page 17 16. F i x th e L- sh aped B rac k e t to th e wall. Ø6x30mm Wall Plug M4*35mm Screw P-17-18 V-2.0...
- Page 18 17. Assemble the drawers in the Chest. P-18-18 V-2.0...
