DUSK.COM
LIVING I BEDROOM I DINING
Up to 30 minutes
assembly time
This product is intended for domestic use only,not for commercial purposes.

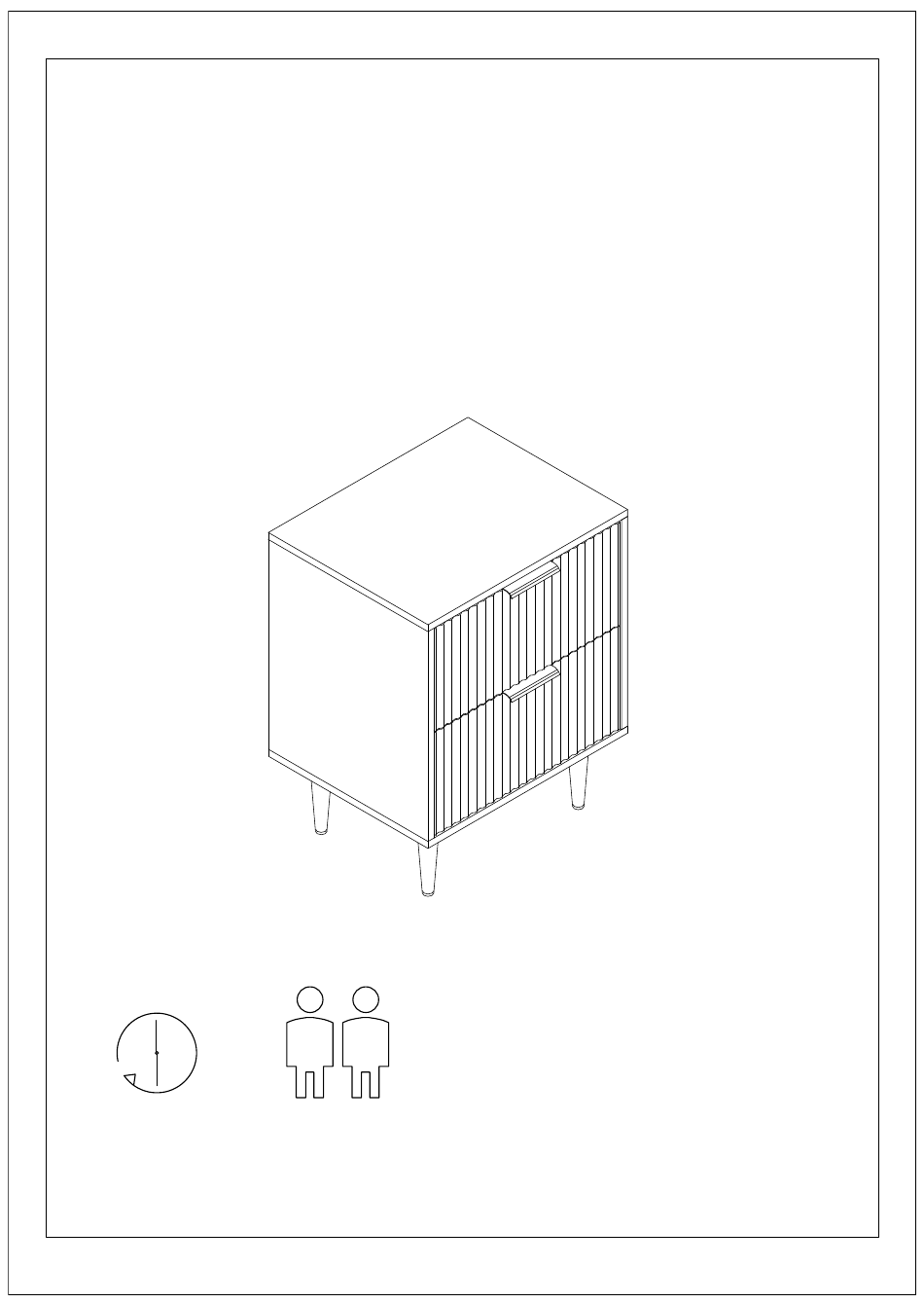

Evie Bedside
Two person
assembly
Range Name : EVIE
Box 1 Dimensions : W75.5xD55xH19.5cm
Product Dimension : W50xD40xH63.5cm
P-1-10
V-2.0
Advertisement
Related Manuals for DUSK Evie Bedside
Summary of Contents for DUSK Evie Bedside
- Page 1 DUSK.COM Range Name : EVIE Box 1 Dimensions : W75.5xD55xH19.5cm LIVING I BEDROOM I DINING Product Dimension : W50xD40xH63.5cm Evie Bedside Up to 30 minutes Two person assembly time assembly This product is intended for domestic use only,not for commercial purposes.
- Page 2 IMPORTANT ASSEMBLY TIP Before you begin, it's best to identify all of the parts and fittings to build your Evie Bedside frame. We advise laying these out on the floor to check you have everything, and to familiarise yourself with all of the parts and fittings before building.
-
Page 3: Parts List
Parts list Before you begin building your Evie Bedside,please take a moment to read through the instructions and make surethat you have all the relevant parts listed on the parts check list. Part Number Part Description Quantity Box No Left Side Panel... - Page 4 Fittings Please check you have all the fittings listed below with your product in box 1. M6*35mm Bolt Ø8x30mm Dowel M3.5*12mm Screw M3*14mm Screw Ø15x9.5mm Cam Lock 12pcs+1pc extra 12pcs+1pc extra 8pcs+1pc extra 4pcs 4pcs 3mm Allen Key M4*35mm Screw M5*40mm Screw 15x9mm Plastic Buckle Handle...
- Page 5 1.Attach Parts to the bedside top. A x 4 M6*35mm Bolt M4*14mm Screw Wall Bracket 4pcs 2.Attach left and right side panels to the bedside top. B x 4 C x 4 Ø8x30mm Dowel Ø15x9.5mm Cam Lock 4pcs 4pcs P-5-10 V-2.0...
- Page 6 3.Assemble the back panel. 4.Attach bottom panel to the Frame. G x 6 C x 4 3mm Allen Key Ø8x30mm Dowel M5*40mm Screw 4pcs 6pcs P-6-10 V-2.0...
- Page 7 5.Attach legs to the Frame. K x 16 M4*14mm Screw 16pcs 6.Assemble the Drawers. A x 4 D x 2 F x 4 N x 4 B x 4 Ø15x9.5mm Cam Lock 8pcs M6*35mm Bolt M3.5*12mm Screw M4*35mm Screw Handle Cover P-7-10 8pcs...
- Page 8 7.Assemble the drawers in the Bedside. 8.Manually adjust the frame slightly to ensure the drawersare in the correct position, even and parallel beforeattaching the plastic buckles. P-8-10 V-2.0...
- Page 9 9.Attach the plastic Buckles. I x 4 E x 4 M3*14mm Screw 15x9mm Plastic Buckle 4pcs 4pcs 10.Take out the drawer. P-9-10 V-2.0...
- Page 10 11.Fix the L-shaped Bracket to the wall. Ø6x30mm Wall Plug M4*35mm Screw 12.Assemble the drawers in the Bedside. P-10-10 V-2.0...
