DUSK.COM
LIVING | BEDROOM | DINING
V2.0
This product is intended for domestic use only,not for commercial purposes.

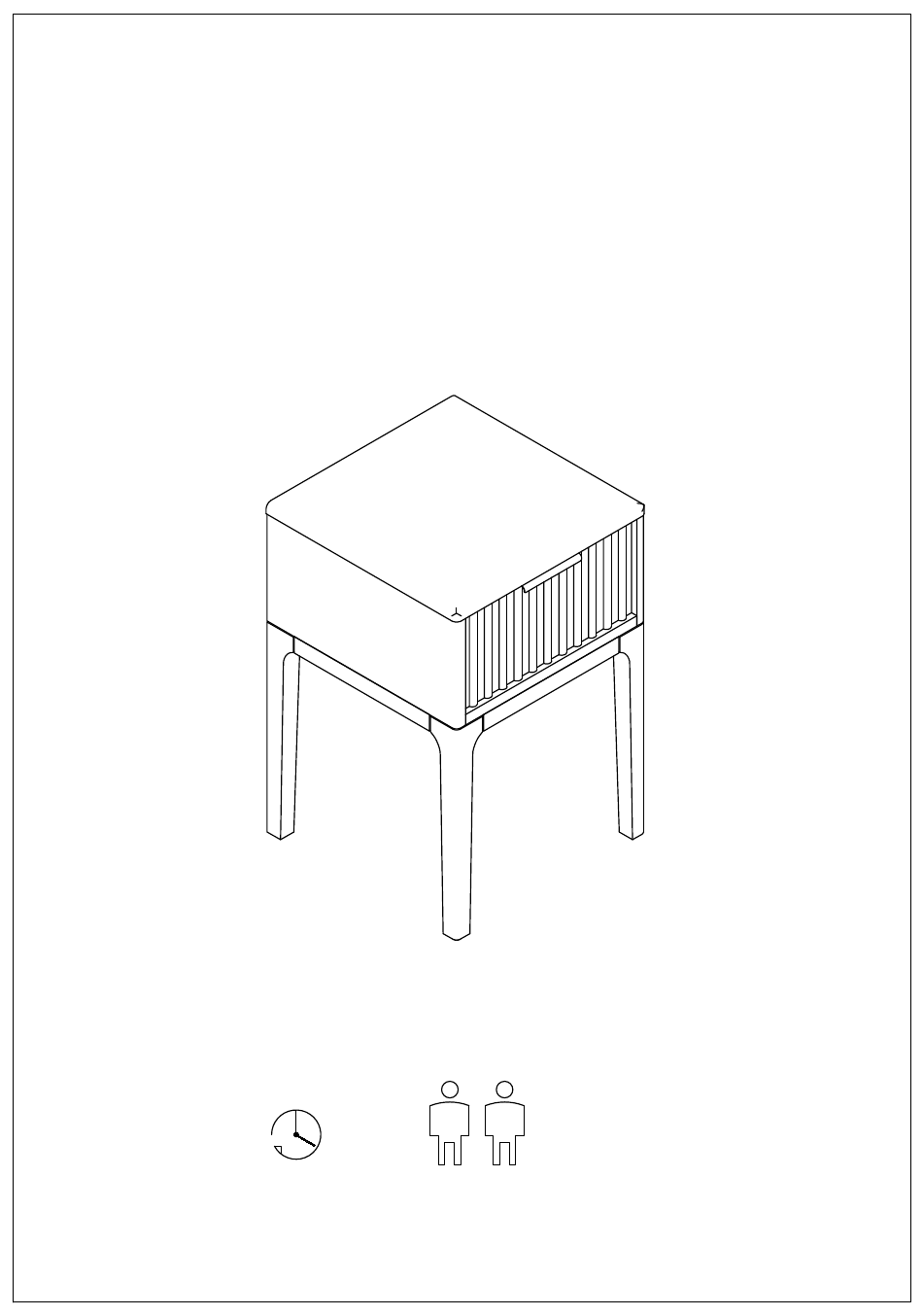

Elena Nightstand
Up to 20 minutes
assembly time
Range Name: Elena
Box 1 Dimensions: W47
Product Dimensions: W40
Two person
assembly
D47
H39(cm)
×
×
×
×
D40
H60(cm)
P-1-7
Advertisement
Table of Contents
Related Manuals for DUSK Elena Nightstand
Summary of Contents for DUSK Elena Nightstand
- Page 1 Box 1 Dimensions: W47 H39(cm) × × LIVING | BEDROOM | DINING × × Product Dimensions: W40 H60(cm) Elena Nightstand V2.0 Up to 20 minutes Two person assembly time assembly This product is intended for domestic use only,not for commercial purposes. P-1-7...
-
Page 2: Safety And Care
IMPORTANT ASSEMBLY TIP Before you begin, it's best to identify all of the parts and fittings to build your Elena Nightstand frame.We advise laying these out on the floor to check you have everything, and to familiarise yourself with all of the parts and fittings before building. - Page 3 Parts list P-3-7...
-
Page 4: Parts List
Parts list Before you begin building your Nightstand, please take a moment to read through the instructions and make sure that you have all the relevant parts listed on the parts check list. Part Number Part Description Quantity Box No Box 1 Frame Box 1... - Page 5 Step 1. Take out the drawer. down Step 2 . Attach Legs to the frame. × × × NB: Do not tighten the bolts. M6 45mm Bolt Ø6 Flat Washer Ø6 Spring Washer M4 Allen key 4pcs 4pcs 4pcs P-5-7...
- Page 6 Step 3. Attach legs to the frame. × NB: Tighten all the bolts in step 2 and step 3 M6 35mm Bolt M4 Allen key 4pcs Step 4. Fix the L-shaped Bracket to the wall. × × Ø6 30mm Wall Plug M4 35mm Screw P-6-7...
- Page 7 Step 5. Assemble drawer in the nightstand . û ü P-7-7...
