Evie Wardrobe
Two person
assembly
Range Name : EVIE
Box dimensions : 177x65.5x20cm
P-1-22

Advertisement

loading
Need help?

Need help?

Do you have a question about the Evie EVI-WWO-WAR and is the answer not in the manual?

Questions and answers

Summary of Contents for DUSK Evie EVI-WWO-WAR

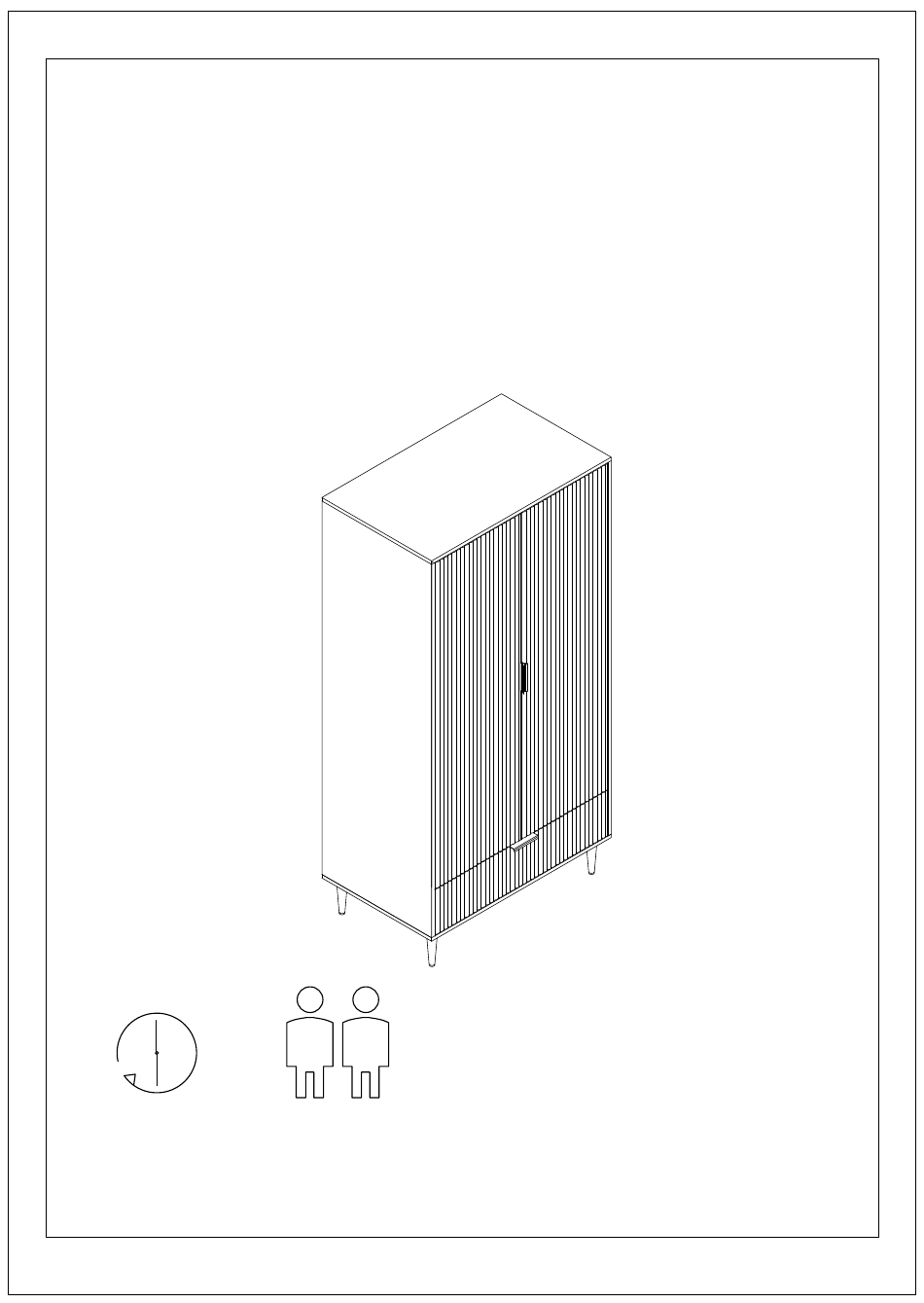

  • Page 1 DUSK.COM Range Name : EVIE LIVING I BEDROOM I DINING Box dimensions : 177x65.5x20cm Evie Wardrobe Up to 30 minutes Two person assembly time assembly This product is intended for domestic use only,not for commercial purposes. P-1-22...
  • Page 2 IMPORTANT ASSEMBLY TIP Before you begin, it's best to identify all of the parts and fittings to build your Evie Wardrobe frame. We advise laying these out on the floor to check you have everything, and to familiarise yourself with all of the parts and fittings before building. TOP TIP We recommend that you assemble the Evie Wardrobe in the room you'd like it to be located.
  • Page 3: Parts List

    Parts list Evie Wardrobe Before you begin building your , please take a moment to read through the instructions and make surethat you have all the relevant parts listed on the parts check list. Part Number Part Description Part Number Part Description Quantity Quantity...
  • Page 4 Fittings Please check you have all the fittings listed below with your product. M6*35mm Bolt Ø15x9.5mm Cam Lock Ø8x30mm Dowel M3.5*12mm Screw M3*14mm Screw 23pcs+2pcs extra 23pcs+2pcs extra 20pcs+2pcs extra 20pcs+2pcs extra 12pcs+1pc extra 3mm Allen Key 15x9mm Plastic Buckle Handle M4*35mm Screw M5*40mm Screw...
  • Page 5 Parts list P-5-22...
  • Page 6 Slides Must Be Separated Before Assembly. After Separated, Set Aside Until Needed for Assembly. Pay attention when connecting ! The sliding module must be at the front end. STEP 1 : Extend Slide Slide Part S Mount Lever Slide Part T STEP 2: Push Lever UP Push lever for the left of drawer , press the lever for the right of drawer .
  • Page 7 1. Attach slide part S to the left and right side panel. D x 6 A x 17 S x 2 M6*35mm Bolt M3.5*12mm Screw Slide 17pcs 6pcs 2pcs P-7-22...
  • Page 8 2. Attached center support and shelf panel to the left side panel. B x 5 C x 5 Ø15x9.5mm Cam Lock Ø8x30mm Dowel 5pcs 5pcs P-8-22...
  • Page 9 3. Attach the right side panel to the frame. C x 5 B x 5 Ø15x9.5mm Cam Lock Ø8x30mm Dowel 5pcs 5pcs P-9-22...
  • Page 10 4. Attach the frame to the Top. C x 6 B x 7 Ø15x9.5mm Cam Lock Ø8x30mm Dowel 7pcs 6pcs P-10-22...
  • Page 11 5. Assemble the back panel. P-11-22...
  • Page 12 6. Attach the bottom panel to the frame. C x 4 G x 6 3mm Allen Key Ø8x30mm Dowel M5*40mm Screw 4pcs 6pcs P-12-22...
  • Page 13 7. Attach the legs to the frame. K x 16 M4*14mm Screw 16pcs P-13-22...
  • Page 14 8. Attach the plastic buckle the frame E x 12 I x 12 15x9mm Plastic Buckle M3*14mm Screw 12pcs 12pcs P-14-22...
  • Page 15 9. Attach the srews to the frame. R x 12 M3*14mm Screw 12pcs P-15-22...
  • Page 16 10. Assemble the Clothes poles. Q x 2 D x 4 Clothes Tray Clothes Poles M3.5*12mm Screw 4pcs 2pcs P-16-22...
  • Page 17 11. Attach parts to the door and drawer front U x 12 D x 6 J x 3 A x 6 V x 6 Hinge Handle M4*14mm Screw M6*35mm Bolt M3.5*12mm Screw 6pcs 6pcs 3pcs 12pcs 6pcs P-17-22...
  • Page 18 12. Attach parts to the frame. U x 24 P x 4 M4*14mm Screw Cover 24pcs 4pcs P-18-22...
  • Page 19 13. Assemble the drawer. F x 4 Ø15x9.5mm Cam Lock M4*35mm Screw Ø6x30mm Dowel 4pcs 14. Assemble the drawer. P-19-22...
  • Page 20 15. Assemble the drawer. B x 5 O x 4 Ø6x30mm Dowel Cover Ø15x9.5mm Cam Lock 4pcs 5pcs 16. Attach the slide part T to the drawer. D x 4 T x 2 Orbit M3.5*12mm Screw 4pcs 2pcs P-20-22...
  • Page 21 17. Assemble the drawer to the Wardrobe. P-21-22...
  • Page 22 18. Fix the L-shape Bracket to the wall. Ø6x30mm Wall Plug Wall Bracket M4*35mm Screw M4*14mm Screw P-22-22...
