NATHAN JAMES Iris 72020 Manual

Storage cabinet
Hide thumbs

Advertisement

Quick Links

Download this manual

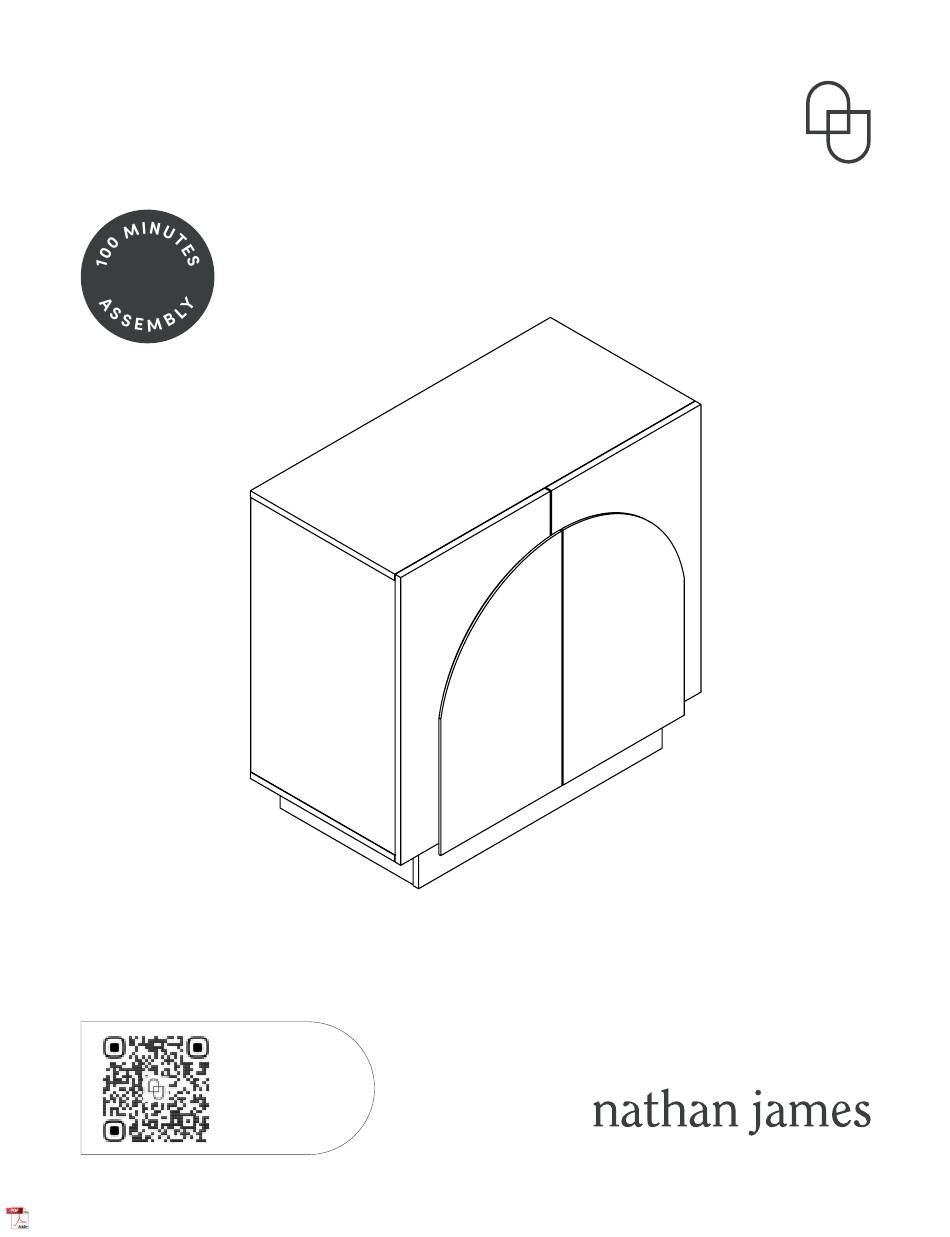

Let's build the
Iris Storage Cabinet
SKU 72020
100
Scan me!
Free Lifetime
Warranty
23-0904-VN

Advertisement

loading
Need help?

Need help?

Do you have a question about the Iris 72020 and is the answer not in the manual?

Questions and answers

Related Manuals for NATHAN JAMES Iris 72020

Summary of Contents for NATHAN JAMES Iris 72020

  • Page 1 Let’s build the Iris Storage Cabinet SKU 72020 Scan me! Free Lifetime Warranty 23-0904-VN...

  • Page 2: What's Included

    What’s included Ok, let’s get rolling Description Top Panel Right Side Panel This should be easy, just follow our instructions and you will be back to Netflix in no time. Left Side Panel Left Back Panel Estimated time for assembly Right Back Panel 100:00 Bottom Panel...
  • Page 3 The goods IMPORTANT 1. Do not tighten bolts / screws completely until all bolts / screws are lined up and inserted into holes. 2. Do not over tighten screws and bolts to avoid stripping.
  • Page 4 What’s included Description M6*35mm Cam Bolt 15*12mm Cam Lock 8*30mm Wooden Dowel 1/4**32mm Hex Button Head Bolt Flat Washer Allen key M4*35mm Screw 1/4**50mm Hex Button Head Bolt Barrel Nuts Hinge M4*14mm Screw Shelf Pin Wall Anchor M4*12mm Screw Anti-lip Bracket Door Catch Plate M3*15mm Screw Magnetic Catch...
  • Page 5 Step 1 Let’s get this thing fired up! Start by putting Cam Bolts (1) into the Top Panel (A), Right Side Panel (B), Left Side Panel (C), and Bottom Panel (F), in the holes indicated below. Secure the Anti-Tip Bracket (15) to the Top Panel (A) using the M4*12mm Screw (14).
  • Page 6 Step 2 Grab your screwdriver for this step! Use the Cam Locks (2) and Wooden Dowels (3) to secure the Left Back Panel (D) to the Left Side Panel (C). See the following page for a quick guide on how to use cam locks!
  • Page 7 How to use Did you know? Cam locks are used to join two panels together, cam locks usually the edge of one to the flat side of another. First, your cam bolt (or cam pin) will need to be properly inserted into the flat side of the board. Important Note: Only tighten the cam bolt until it is secure.
  • Page 8 Step 3 Don’t put your screwdriver away quite yet! Use the Cam Locks (2) and Wooden Dowels (3) to secure the Right Back Panel (E) to the Right Side Panel (B) Flip back to Page 7 if you need a refresher on how to use cam locks.
  • Page 9 Step 4 Now secure the panels (B) and (E) from Step 3 to the Top Panel (A). Tighten to 75%!
  • Page 10 Step 5 No, this isn’t Deja Vu! Now secure the (D) and (C) panels to the Top Panel (A). Tighten to 75%!
  • Page 11 Step 6 Secure the Magnetic Catches (18) to the Top Front Stretcher (N) using the M3*15mm Screws. Then, secure the Top Front Stretcher (N) to the unit with the Cam Locks (2) and M4*35mm Screws (7).
  • Page 12 Step 7 This is the last step with cam locks, we promise! Join the Bottom Panel (F) to the unit you’ve assembled so far using the Wooden Dowels (3) and Cam Locks (2).
  • Page 13 Step 8 Get the Bottom Panel (F) secured using the Flat Washers (5) and Hex Button Head Bolts (8) - be sure to line them up correctly with the Barrel Nuts (9).
  • Page 14 Step 9 You are halfway done! Join the Base Back Panel (I) to the Base Left Side Panel (J) together using a Flat Washer (5) and Hex Button Head Bolt (4) and Wooden Dowels (3). Tighten to 75%!
  • Page 15 Step 10 Attach the Base Right Side Panel (H) to the Base Back Panel (I) using a Flat Washer (5) and Hex Button Head Bolt (4) and Wooden Dowels (3). Tighten to 75%!
  • Page 16 Step 11 You’re a pro at this by now! Attach the Base Front Panel (G) to Part (J) and (H) using a Flat Washer (5) and Hex Button Head Bolt (4) and theWooden Dowels (3). Tighten to 75%!
  • Page 17 Step 12 Use four Wooden Dowels (3) to join the assembled panel pieces to the unit from Step 8.
  • Page 18 Step 13 Secure using the Flat Washers (5) and Hex Button Head Bolts (4). Once everything is lined up and partially secured, go ahead and re-tighten all previous connections to 100% tighten.
  • Page 19 Step 14 Shut the front door - you’re only five steps away from being done. Speaking of doors - grab the Left (K) and Right (L) doors and secure the four Hinges (10) onto them. Secure the Door Catch Plate (16) to the tops of the doors, too!
  • Page 20 Step 15 It’s all coming together! Secure the doors to the unit by the Hinges using the M4*14mm Screws (11).
  • Page 21 Is your cabinet door looking crooked or unevenly spaced? Then you’ve come to the right place. Follow the illustrations below to get your cabinet door aligned and ready for action.
  • Page 22 Step 16 Place the Shelf Pins (12) at your desired shelf height and carefully slide the Shelf (M) to rest on top of the pins.
  • Page 23 Step 17 Time for the finishing details! Wobbly or unlevel? Adjust feet until stable!
  • Page 24 Is your cabinet door looking crooked or unevenly spaced? If you’re still having trouble lining everything up, your next step should be to try to adjust the feet slightly to square up the cabinet & doors. Follow the illustrations below: If the right door appears to be hanging low, you can adjust the adjustable leveler on the front right until the door is better aligned.
  • Page 25 Step 18 Safety first! Start by drilling a hole in the wall using a 1/4” drill bit and pushing a Wall Anchor (13) into the hole. Then, secure the storage unit to the wall by screwing in a M4*35mm Screw (7) through the Anti-Tip Bracket you installed all the way back from Step 1 and into the Wall Anchor (13).
  • Page 26 No heartburn, when we handle the return Give us a call 1-866-619-1004 or shoot us a message at help@nathanjames.com we will issue you a free replacement with zero hassle. Our way Their way Give us a call Re-package item Replacement Schedule pick up Track package Replacement...

  • Page 27: Proper Use

    Any modifications will present the risk of creating significant safety Nathan James and its parent companies cannot issues which NJ will not be responsible for. be held legally responsible for any injuries or death resulted from failure to follow instructions or improper use of this product.
  • Page 28 If you are happy with your product, tell your friends and family about us or even better leave us a review online. Spreading the word gives us the opportunity to make more people happy and keep our prices low for your next purchase. Brooklyn Burdon Founder, Nathan James...
