Summary of Contents for Redarc BCDCX12025

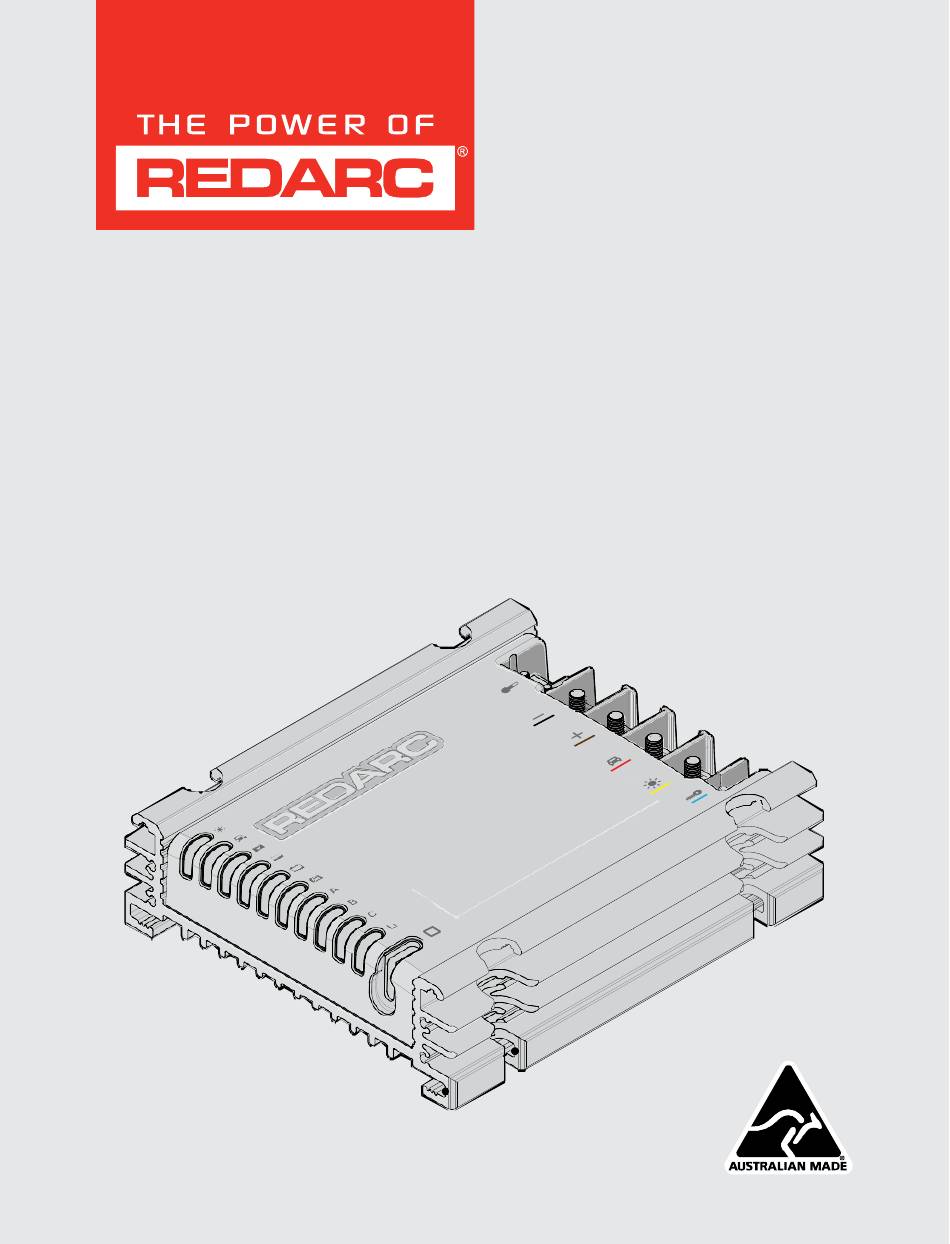

- Page 1 BCDCX MODELS: BCDCX12025 BCDCX12050...
- Page 2 BCDCX The BCDCX is the next generation of In-vehicle charging technology. Incorporating the latest 4-stage adaptive charging profile, a refined MPPT algorithm and the ability to monitor and upgrade via the RedVision ® App, the BCDCX puts the power in your hands and in your auxiliary battery. Get the Free Get the Free Configurator App...
- Page 3 CONTENTS WARNINGS & SAFETY INSTRUCTIONS ..4 OPERATION ..........22 Start Battery Recovery ..........22 PRODUCT OVERVIEW ......... 5 Maximum Charge Current Setting ......23 Kit Contents ..............5 Profile Select Setting ..........23 Status LEDs ..............6 Green Power Priority ..........24 Control Button .............
- Page 4 Do not operate the system Phosphate battery, only use batteries that feature an inbuilt unless you have read and understood this manual. REDARC battery management system which includes cell balancing, recommends that the BCDCX referenced in this manual be under and over voltage protection.
- Page 5 PRODUCT OVERVIEW KIT CONTENTS Terminal Inputs Main Unit Status LEDs Control Button 4x Mounting Holes 2 m (6.6') Temperature M5 Flanged Nyloc M3 Flanged Nyloc Sensor Cable Locking Nuts Locking Nuts Product Overview | 5...
- Page 6 STATUS LEDS The Main Unit displays the status and operations of your system, this can be altered and controlled via the ® Control Button and/or the RedVision App. Charge Solar and Charge Control Vehicle Input Stage Profile Button Indicator Indicators Indicators VEHICLE AND SOLAR INDICATORS The Solar and Vehicle LEDs will be on when the input is available and in use.
- Page 7 CONTROL BUTTON The BCDCX Control Button is used to operate the BCDCX once your installation is complete. The Button is used to cycle through and enter into each mode. Press the Button for ≤ 1 second to cycle into the next mode and hold for ≥...
- Page 8 SYSTEM PLANNING WHAT YOU WILL NEED Appropriate cables, lugs and heatshrink for auxiliary, start battery, common ground, solar and vehicle ignition (if required) connections (see below and page Fuses for auxiliary and start battery (see page Appropriate tools and consumables, including a suitable crimping tool, screwdriver, hex-head tool, power drill, common fasteners, cable cutters, pliers and cable ties.
- Page 9 NOTE: The auxiliary output cable should be no more than 1.5 m (4.9') in length. The BCDCX12025 and BCDCX12050 can carry peak currents up to 30 / 55 A. To carry this current effectively it is important to select the cable gauge based on the length of cable run required. Refer to the table below for appropriate cable sizes.
- Page 10 CONSIDERATIONS PRIOR TO INSTALLATION CABLE MANAGEMENT During installation, ensure there is adequate spacing around the Main Unit to allow for strain-relief and cable management once cabling is complete. See page 17 for further information. COMMON GROUND Consider that the common ground connection and all components in your setup must share a common electrical ground for correct system operation.
- Page 11 BASIC SETUP Temperature Sensor Ground Auxiliary Auxiliary Battery MIDI Fuse (and holder) Start BCDCX12025 – 40A BCDCX12050 – 60A MIDI Fuse (and holder) Vehicle Ignition Solar Start Battery The BCDCX must be installed in the following order: 1. Mounting the Main Unit (page 12).
- Page 12 INSTALLATION — MOUNTING MOUNTING REQUIREMENTS The Main Unit can be installed in the engine bay of a vehicle, along a chassis rail or in the cabin of the vehicle. Mount as close as possible to the auxiliary battery. There should be no more than 1.5 m (4.9') of cable length between the Main Unit and auxiliary battery.
- Page 13 They are suitable for the selected mounting surface and; They have a clearance-fit through the mounting holes on the Main Unit. REDARC recommend mounting the Main Unit using four M6 fasteners and suitable tools based of the type of fasteners selected. Washers are not required for mounting.
- Page 14 Before making any connections to the Main Unit, assemble each cable with the appropriate sized lug using heatshrink as demonstrated below. REDARC recommend using heatshrink as it protects the cable and lug connection from harsh environments, sharp cutting edges and abrasion.
- Page 15 CABLE CONNECTIONS AUXILIARY BATTERY CABLE Connect to the auxiliary battery positive (+) Fuse terminal. Mount a MIDI fuse no more than 100 mm (3.9") away from the battery terminal. Auxiliary Battery COMMON GROUND Connect to a ground point, such as a ground stud on the metal of the bodywork.
- Page 16 SOLAR CABLE Connect to either a 12 V or 24 V solar panel. Ensure that the solar panel ground is connected to the common ground on the vehicle. IMPORTANT: Connect to unregulated solar panel/s only. Fixed Solar Panel/s 12 V 24 V Portable Solar Panel/s 12 V...
- Page 17 STRAIN-RELIEF AND CABLE MANAGEMENT PROTECT AND SECURE THE CABLES Secure the cables to a fixed point close to the Main Unit, cable ties, cable clips and P-clips are recommended. Flexible conduit can be used to manage and protect cabling running in the same direction. An example is shown below.
- Page 18 GET THE REDVISION CONFIGURATION APP ® Get the RedVision Configurator App Download the free REDARC RedVision ® Configurator App to Configure the ® settings of the BCDCX using your smartphone via Bluetooth The Configurator App and its interactions with the BCDCX have not been tested on all smartphone models. Visit the application pages with your App store to view compatibility details.
- Page 19 EDIT A CONFIGURATION ® 1. Open the RedVision Configurator App. 2. From the Choose System screen, tap Open Configuration 3. From the list, choose the configuration you want to edit. 4. Edit the configuration as required to suit your setup — remember to tap Save each time you make a change.
- Page 20 SYSTEM TESTING System testing is an important step to confirm the end-user experience of the configured system. Identifying and correcting errors is important before the system is operational and on-the-road. ® 1. Download and install the RedVision App. 2. Open the App and check that each connected device appears and functions as intended. 3.
- Page 21 SUBSEQUENT CONNECTIONS ® Once the smartphone has been paired with the BCDCX, it will automatically reconnect when the RedVision App is opened and the BCDCX is selected — Tap the Menu icon at the top right, then select the BCDCX from the list of devices.
- Page 22 OPERATION The BCDCX Control Button has five modes. To cycle between modes, a momentary push (≤ 1 second push) of the Control Button will change the colour of the flashing LED, indicating a move to the next mode. To enter a mode, press and hold the Control Button (>...
- Page 23 A momentary push (≤ 1 second push) will increase the current setting in increments of 10%. To confirm the maximum charge current push and hold the Control Button. 100% BCDCX12025: 25A BCDCX12050: 50A PROFILE SELECT SETTING NOTE: Refer to the charging specifications stated by the battery manufacturer, before selecting the profile for your installation.
- Page 24 GREEN POWER PRIORITY Green Power Priority is a automatic function that defines the order that input sources are prioritised. The BCDCX will always take as much power available from the solar input before supplementing from other sources. This lightens the load on your vehicle and maximises the collection of free solar energy.
- Page 25 SPECIFICATIONS GENERAL SPECIFICATIONS Weight 950 g (33.5 oz) Dimensions 165 × 146 × 44 mm (6.5" × 5.75" × 1.7") 27.5mm 27.5mm 44mm (1.7") (1.1") (1.1") 18mm (0.7") 110mm (4.3") 6.5 mm 12mm (0.26') 165mm (6.5") (0.5") Specifications | 25...
- Page 26 ELECTRICAL SPECIFICATIONS BCDCX12025 BCDCX12050 Continuous Current Rating 25 A 50 A Maximum Current Rating 30 A 55 A 40 A 60 A Vehicle Input and Output Fuse Rating (not supplied, FK60 (not supplied, FK60 recommended) recommended) Maximum Power 400 W...
- Page 27 COMPLIANCE AND STANDARDS Standards IP Rating IP68/IP69K FCC ID 2BAH6-BCDCX01 IC ID 30290-BCDCX01 Internal Transmission Notice 1. WARNING: Any changes or modifications not expressively approved by the grantee could void the user's authority to operate this equipment. 2. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 28 WARRANTY LIMITED WARRANTY For full warranty terms and conditions, visit the Warranty page of the REDARC website: www.redarcelectronics.com/warranty Australia, New Zealand & Europe North America REDARC Electronics Pty Ltd REDARC Corporation 23 Brodie Road (North), c/o Shallco, Inc. Lonsdale SA 5160 308 Component Dr.
- Page 29 REDARC®, RedVision® and THE POWER OF REDARC® are trademarks of Redarc Electronics Pty Ltd. | The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by REDARC is under license. | Other trademarks and trade names are those of their respective owners. | Copyright...
- Page 30 Tech Support 1300 REDARC (1300-733-272) Australia +61 8 8322 4848 New Zealand +64 9 222 1024 UK & Europe +44 (0)20 3930 8109 +1 (704) 247-5150 Canada +1 (604) 260-5512 Mexico +52 (558) 526-2898 redarcelectronics.com INST185-1...
