- Page 1 BCDC ® Dual Input Multi-Stage In-Vehicle Battery Charger MODEL: BCDC1220 ƒ BCDC1220-IGN ƒ...
-
Page 2: Table Of Contents
CONTENTS 1 PRODUCT OVERVIEW ���������������������������������������������������������� 2 WARNINGS AND SAFETY INSTRUCTIONS ���������������������� 3 SPECIFICATIONS ������������������������������������������������������������������ 4 PRODUCT FUNCTION ���������������������������������������������������������� 4.1 Display Panel ����������������������������������������������������������������� 4.2 Charging Process ��������������������������������������������������������� 4.3 Turn On/Off Thresholds ������������������������������������������������ 5 INSTALLATION ���������������������������������������������������������������������� 5.1 Install Location �������������������������������������������������������������� 5.2 Cable sizing �������������������������������������������������������������������... -
Page 3: Product Overview
Charger is installed as per these installation instructions. REDARC recommends that the Charger be installed by a suitably qualified person. Disclaimer: REDARC accepts no liability for any injury, loss or property damage which may occur from the improper or unsafe installation or use of its products. - Page 4 2. Do NOT alter or disassemble the Battery Charger under any circumstances. All faulty units must be returned to REDARC for repair. Incorrect handling or reassembly may result in a risk of electric shock or fire and may void the unit warranty.
-
Page 5: Specifications
3 SPECIFICATIONS Part Number BCDC1220 and BCDC220-IGN Continuous Current Rating 20 A Vehicle Input Fuse Rating 40 A (Not Supplied) REDARC FK40 recommended Output Fuse Rating Output Power 300 W 9 to 32 VDC ⎓ DC Input Voltage Range Output Battery Type... -
Page 6: Product Function

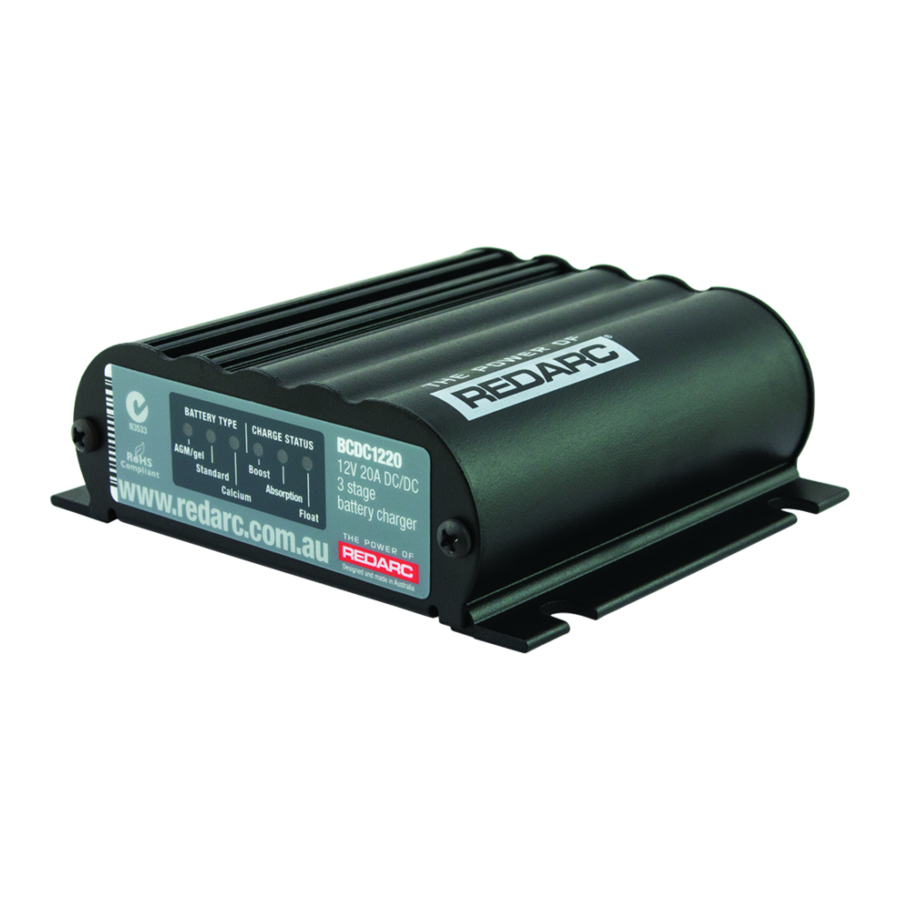

The BCDC1220(-IGN) is a three-stage, 12 V, 20 A DC-DC Battery Charger that operates from an input of either 12 V or 24 V nominal. The input voltage of the BCDC1220 can be above, below or equal to the output voltage, making it ideal for charging from a 24 V vehicle or charging an auxiliary 12 V battery where the distance from the main battery may cause a significant voltage drop. -
Page 7: Charging Process
CHARGING PROCESS BOOST The Boost stage maintains a constant current until the battery voltage reaches its Absorption Voltage. The current in Boost stage may vary during operation in order to maintain safe operating temperature, or to limit the difference between input and output voltages. ABSORPTION The Charger will then move to Absorption stage which maintains a constant voltage level for a predetermined period of time or until the current being drawn by the output battery drops to less... -
Page 8: Turn On/Off Thresholds
TURN ON/OFF THRESHOLDS 24 V BCDC1220 & 12 V BCDC1220 BCDC1220-IGN BCDC1220-IGN Input Open 12.9 V 12.0 V With Ignition Turn ON above Circuit Low voltage Turn OFF above 12.7 V 11.9 V With Ignition conditions Turn OFF Input Loaded... -
Page 9: Installation
Unit will de-rate output current. NOTE: Appropriate connections must be made to the wires with a continuous current rating of at least 20 A for the BCDC1220(-IGN). Failure to do so may cause damage to the Unit and vehicle. CABLE SIZING Below is a table outlinging the required cable size for a given cable install length. -
Page 10: Fusing
The wires on the BCDC1220 and BCDC1220-IGN Unit carry peak currents of up to 30 Amps and it is important to make a good, low resistance, electrical connection that will not degrade over time. -
Page 11: Auxiliary Battery Positive - Brown Wire
Figure 5: Ensuring a good wiring connection Crimp both wires to the butt splice using Solder the wires to the butt splice. Ensure that single-indent type crimpers. Fold the cable over a good connection is made. before inserting into the butt-splice as required. Keep heatshrink away until after soldering is Single-indent crimpers should also be used on complete and has cooled. -
Page 12: Charge Profile Selection - Orange Wire
CHARGE PROFILE SELECTION — ORANGE WIRE Connect the ORANGE wire to set the Maximum output voltage to suit your selected Charge Profile. Figure 8: Setting the Maximum Voltage (ORANGE wire) PROFILE A Leave the ORANGE wire disconnected to set the Maximum voltage to 14.6 V*. PROFILE B Connect the ORANGE wire to Common Ground to set the Maximum voltage to... -
Page 13: Input Positive - Red Wire
Alternatively, the BLUE 'input trigger' wire can be connected to the vehicle ignition. NOTE: To charge from a 24 V alternator, the BLUE input trigger wire must be connected to the vehicle ignition. Figure 10: BCDC1220 BLUE wire with the 12 V or 24 V Starter Battery 12 V Starter Battery Connect the BLUE wire to vehicle ignition. -
Page 14: Typical Setups
5.10 TYPICAL SETUPS REDARC recommends that the Charger be installed by a suitably qualified person. Figure 12: BCDC1220 12 V Starter Battery Installation BCDC1220 INPUT Load Fuse 30 A Fuse 30 A Fuse Auxiliury Start Charging Pro le Select Battery Battery... - Page 15 Figure 14: BCDC1220 and BCDC1220-IGN 24 V Installation BCDC1220 & BCDC1220-IGN INPUT 20 A Load Fuse Fuse 30 A Fuse Start To vehicle Battery ignition Auxiliury Charging Battery Pro le Select (refer to page 12) Start Battery All ground Loads points must be...
-
Page 16: Frequently Asked Questions
6 FREQUENTLY ASKED QUESTIONS The BCDC1220(-IGN) turns on at 12.9 V (12 V) and OFF at 12.7 V (11.9 V), but it can also operate down to 9 V, explain? The BCDC1220(-IGN) will turn OFF for a split second every 100 seconds to measure the unloaded voltage at the battery. -
Page 17: Warranty
23 Brodie Road (North), Lonsdale South Australia 5160, Australia Design and specifications are subject to change without notice | Copyright © REDARC Electronics Pty Ltd� All rights reserved� REDARC®, THE POWER OF REDARC®, and BCDC® are trademarks of REDARC Electronics Pty Ltd�... - Page 18 NOTES...
- Page 20 Tech Support 1300 REDARC (1300-733-272) Australia +61 8 8322 4848 New Zealand +64 9 222 1024 UK & Europe +44 (0)20 3930 8109 +1 (704) 247-5150 Canada +1 (604) 260-5512 Mexico +52 (558) 526-2898 redarcelectronics.com WARBCDC1220-8 EN...
