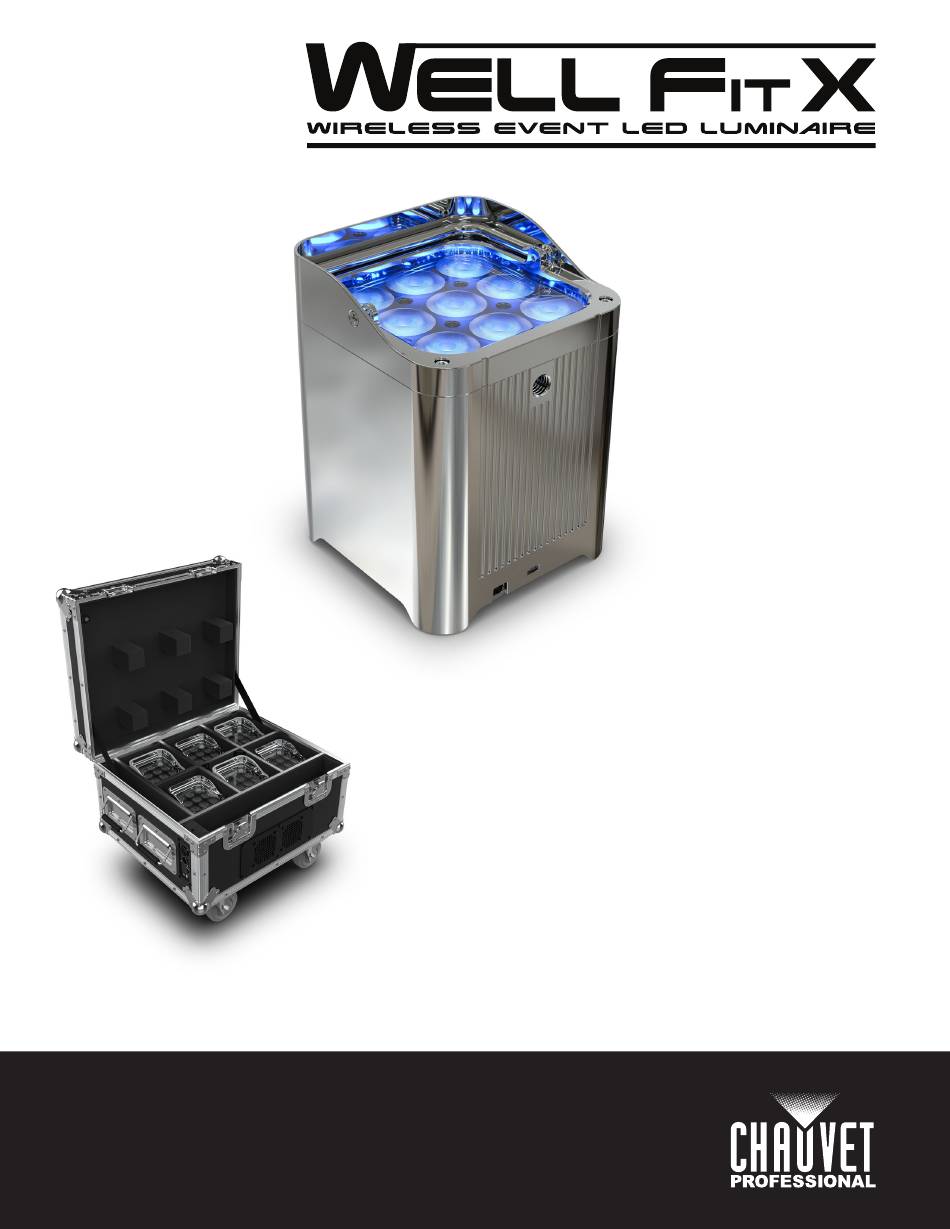

- Page 1 User Manual Model ID: WELLFITXX6...
-
Page 2: Edition Notes
Edition Notes The WELL Fit X X6 User Manual includes a description, safety precautions, installation, programming, operation, and maintenance instructions for the WELL Fit X X6 as of the release date of this edition. Trademarks Chauvet, Chauvet Professional, the Chauvet logo, WELL and WELL Fit are registered trademarks or trademarks of Chauvet &... -
Page 3: Table Of Contents
Mounting ....................... Orientation......................12 Rigging ....................... 12 Procedure......................12 4. Operation ..................Control Panel Description ................Control Options ..................... Programming....................Home Screen ....................Control Panel Lock..................Passcode ......................13 Menu Map ..................... WELL Fit X X6 User Manual Rev. 2... - Page 4 RF Setting ......................21 RF Controller Operation ..................21 Error Codes....................5. Maintenance................Product Maintenance ..................Torque Measurements .................. Vacuum Test Measurements ................ 6. Technical Specifications ............Contact Us ..................Warranty & Returns..................WELL Fit X X6 User Manual Rev. 2...
-
Page 5: Before You Begin
Any reference to data or power connections in this manual assumes the use of Seetronic IP-rated cables. The term “DMX” used throughout this manual refers to the USITT DMX512-A digital data transmission protocol. WELL Fit X X6 User Manual Rev. 2... -
Page 6: Safety Notes
• In the event of a serious operating problem, stop using immediately. If this Chauvet product requires service, contact Chauvet Technical Support. WELL Fit X X6 User Manual Rev. 2... -
Page 7: Battery Charge Notes
Lithium-ion batteries continue to slowly discharge (self-discharge) when not in use or while in storage. Routinely check the battery’s charge status. • Store the battery at temperatures between 41 °F and 68 °F (5 °C and 20 °C). WELL Fit X X6 User Manual Rev. 2... -
Page 8: Fcc Statement Of Compliance
LEDs, contributing to shorter lifespans if always used at full intensity. The average LED lifespan is 40,000 to 50,000 hours. To extend LED lifespan, maintain proper ventilation around the product, and limit the overall intensity. WELL Fit X X6 User Manual Rev. 2... -
Page 9: Introduction
3 M12 threaded mounting hole 8 Charging case power in 13 USB type-C port 4 Kensington security slot 9 Foot latch button 14 External adapter power in 5 Safety cable pass-through 10 Foot 15 Indicator WELL Fit X X6 User Manual Rev. 2... -
Page 10: Product Dimensions
5.12 in 5.12 in 130 mm 130 mm 5.31 in 135 mm Charging Case Overview # Name 1 Power out 2 Power in 3 Fuse holder 4 Indicator 5 USB type-C port WELL Fit X X6 User Manual Rev. 2... -
Page 11: Charging Case Dimensions
18.43 in 468.1 mm 5.94 in 151 mm 12.2 in 310 mm 21.8 in 554 mm 11.02 in 280 mm 9.88 in 251 mm 13.39 in 340 mm 12.24 in 311 mm WELL Fit X X6 User Manual Rev. 2... -
Page 12: Setup
4. Screw the fuse holder cap back in place and reconnect power. Power Linking It is possible to power link WELL Fit X X6 charging cases. See the table below for the current draw at each voltage and frequency: 100 V, 60 Hz... -
Page 13: Remote Device Management
CRMX™ operation can be interrupted or inhibited by people or liquid masses, including water or snow, between the transmitter and receiver. For best results, keep the area between the transmitter and receiver clear of any liquid masses. WELL Fit X X6 User Manual Rev. 2... -
Page 14: Transmitter Configuration
CRMX™ operation can be interrupted or inhibited by people or liquid masses, including water or snow, between the transmitter and receiver. For best results, keep the area between the transmitter and receiver clear of any liquid masses. WELL Fit X X6 User Manual Rev. 2... -
Page 15: Usb Software Update
A steady, always on upgrade indicator light means the software update is finished. The USB port on the charging case supports up to 32GB capacity and only works with FAT32 file format. WELL Fit X X6 User Manual Rev. 2... -
Page 16: Mounting
The WELL Fit X has an M12 threaded mounting hole. The user can directly attach a mounting clamp (sold separately) to this mounting hole. Make sure the clamp is capable of supporting the weight of this product. For the Chauvet Professional line of mounting clamps, go to http://www.trusst.com/products. Mounting Diagram... -
Page 17: Operation
When the control panel lock is activated, the product will prompt for the passcode in order to access the menu. Enter the passcode as described below. Passcode When prompted, enter the following passcode: <UP>, <DOWN>, <UP>, <DOWN>, <ENTER>. It is not possible to change this passcode. WELL Fit X X6 User Manual Rev. 2... -
Page 18: Menu Map
Operation Menu Map Refer to the WELL Fit X X6 product page on www.chauvetprofessional.com for the latest menu map. Main Level Programming Levels Description Selects DMX address DMX Address 001–508 (highest channel restricted to personality chosen) 5 Ch 5-channel: RGBW, control... - Page 19 Turns off RF reception Link Links the fixture to a single RF controller RF Setting Public Allows the fixture to respond to all RF signals Group Group 1–4 Assigns a group for RF control WELL Fit X X6 User Manual Rev. 2...
-
Page 20: Dmx Configuration
To set the starting address in DMX mode: 1. Go to the DMX Address main level. 2. Select the starting address (001–512). Personality Highest Address Products per Universe 5 Ch 8 Ch 12 Ch WELL Fit X X6 User Manual Rev. 2... -
Page 21: Dmx Channel Assignments And Values
075 079 Linear dimmer curve* 175 249 Reserved for future use 080 084 Square dimmer curve* 250 255 No function 085 089 Inverse square dimmer curve* *Hold for 5 seconds WELL Fit X X6 User Manual Rev. 2... -
Page 22: Dmx Chart
161 210 Automatic program 4 211 255 Automatic program 5 (cycle 1–4) – – 11 Automatic program speed 000 255 Program speed, slow to fast 12 Control 000 255 See the Control Chart WELL Fit X X6 User Manual Rev. 2... -
Page 23: Standalone Configuration
Dimmer Speed Mode To set the dimmer speed: 1. Go to the Dimmer Mode main level. 2. Select the dimmer speed mode from Off (instant), Dimmer 1 (fastest), Dimmer 2, or Dimmer 3 (slowest). WELL Fit X X6 User Manual Rev. 2... -
Page 24: White Balance
Factory Reset To reset the product to factory default settings: 1. Go to the Factory Reset main level. 2. Select No (do not reset) or Yes (reset). WELL Fit X X6 User Manual Rev. 2... -
Page 25: Radio Frequency Configuration
Check the wire connection The thermistor is not welded properly Repair or replace the thermistor PCB Temperature shows The temperature control connector has 128°C Check the wire connector a short circuit WELL Fit X X6 User Manual Rev. 2... -
Page 26: Maintenance
Torque Rating (Kgf.cm) Torque Rating (lbf.in) Top cover 8.67962 Base plate 5.20777 Vacuum Test Measurements Use the IP Tester from Chauvet Professional to ensure the product has been reassembled correctly by following the information below: Parameters Values Method Positive Test pressure... -
Page 27: Technical Specifications
113 °F (45 °C) Convection Control DMX I/O Connector Channel Range Wireless Lumenradio CRMX™ 5, 8, or 12 Ordering Product Name Item Name Item Code UPC Number WELL Fit X X6 WELLFITXX6 03032042 781462223908 WELL Fit X X6 User Manual Rev. 2... -
Page 28: Contact Us
For warranty terms and conditions and return information, please visit our website. For customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration. For customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration. WELL Fit X X6 User Manual Rev. 2...
