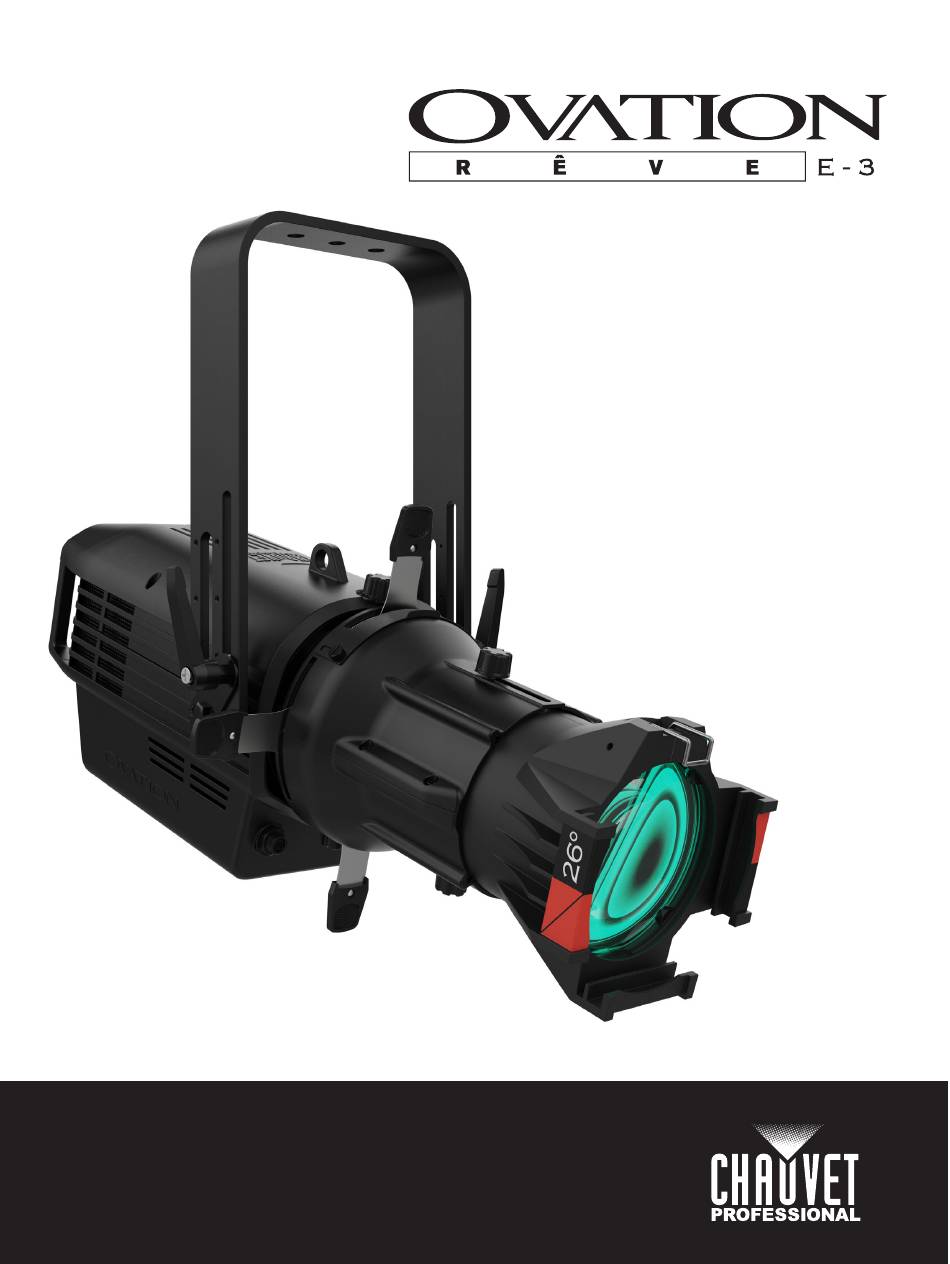

- Page 1 User Manual Model ID: OVATIONREVEE3...
- Page 2 Edition Notes The Ovation Rêve E-3 User Manual includes a description, safety precautions, installation, programming, operation, and maintenance instructions for the Ovation Rêve E-3. Trademarks Chauvet, the Chauvet logo, Ovation, and Ovation Rêve E-3 are registered trademarks or trademarks of Chauvet &...
-
Page 3: Table Of Contents
Table of Contents TABLE OF CONTENTS 1. Before You Begin ............... What Is Included ................... 1 Claims ......................1 Manual Conventions ..................1 Symbols ......................1 Safety Notes....................2 FCC Statement of Compliance ..............3 RF Exposure Warning for North America and Australia........ 3 Expected LED Lifespan................. - Page 4 Table of Contents Dimmer Curve ........................ Dimmer Profiles......................Color Calibration ......................LED Frequency ......................Fan Mode ........................Back Light ........................System Information ......................Virtual Color Wheel ..................19 Virtual Color Wheel Chart ....................Color Temperature Chart ....................Color Temperature DMX Chart ..................DMX Values ....................
-
Page 5: Before You Begin
Before You Begin 1. Before You Begin What Is Included • Ovation Rêve E-3 • Soft focus filter • Seetronic Powerkon IP65 power cable • Quick Reference Guide • Ovation metal gobo holder Claims Carefully unpack the product immediately and check the container to make sure all the parts are in the package and are in good condition. -
Page 6: Safety Notes
Before You Begin Safety Notes Read all the following safety notes before working with this product. These notes contain important information about the installation, usage, and maintenance of this product. This product contains no user-serviceable parts. Any reference to servicing in this User Manual will only apply to properly trained, certified technicians. -
Page 7: Fcc Statement Of Compliance
Before You Begin FCC Statement of Compliance This device complies with Part 15 Part B of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. -
Page 8: Introduction

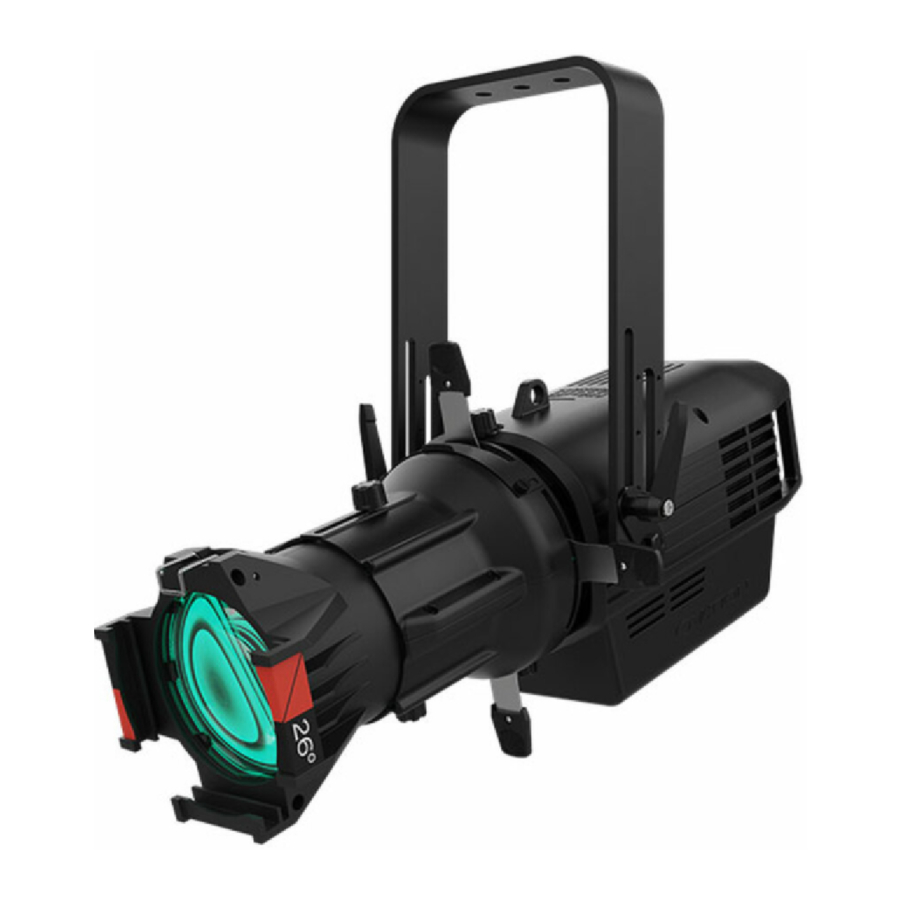

NTRODUCTION 2. Introduction Description Ovation Rêve E-3 is the brightest, multi-color LED ellipsoidal that also has the capability of producing perfectly tunable whites. It’s a new kind of epic story-telling machine that fuses the best of both worlds into one totally reimagined LED light source. Color Temperature presets ranging from 2800K to 8000K maintain outstanding brightness and a high quality of light, with an emulated “red shift”... -
Page 9: Product Overview
NTRODUCTION Product Overview Beam focus knobs (x2) Bracket adjustment knobs (x2) Control panel Framing shutters (x4) Menu buttons Power in 3- and 5-pin DMX in Fuse USB port Handle / Mounting Power out 3- and 5-pin bracket DMX out Safety loop Lens tube (sold separately) Ovation Rêve E-3 User Manual Rev. -
Page 10: Product Dimensions
NTRODUCTION Product Dimensions 19.75 in (501 mm) 20.44 in (519 mm) 26.83 in (681 mm) 10.71 in (272 mm) 13.07 in (332 mm) Ovation Rêve E-3 User Manual Rev. 7... -
Page 11: Setup
ETUP 3. Setup AC Power Each Ovation Rêve E-3 has an auto-ranging power supply that works with an input voltage range of 100 to 240 V~, 50/60 Hz. To determine the power requirements for each Ovation Rêve E-3, refer to the label affixed to the product or to the Technical Specifications chart in this manual. -
Page 12: Dmx Linking
ETUP DMX Linking The Ovation Rêve E-3 can be linked to a DMX controller using a 3- and 5-pin DMX connection. If using other DMX-compatible products with this product, it is possible to control each individually with a single DMX controller. DMX Personalities The Ovation Rêve E-3 uses a 3- and 5-pin DMX data connection for the 1Ch, 5Ch, 6Ch, 8Ch, 12Ch, 14Ch1, 14Ch2, 18Ch, and HSV DMX personalities. -
Page 13: Usb Software Update
ETUP USB Software Update The Ovation Rêve E-3 allows for software updates with a USB device using the built-in USB port. To update the software using a USB flash drive, do the following: 1. Power on the product, and plug the flash drive into the USB port. 2. -
Page 14: Mounting
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. For Chauvet Professional line of mounting clamps, go to: http://trusst.com/products/. Orientation Always mount this product in a safe position, ensuring that there is adequate room for ventilation, configuration, and maintenance. -
Page 15: Adjustable Yoke
ETUP Adjustable Yoke The Ovation Rêve E-3 comes with an adjustable yoke for mounting in low-clearance areas. To modify the height of the yoke, do the following: Loosen the bracket adjustment knobs on both sides of the fixture. On each side of the fixture, remove the two screws and loosen the bolt attaching the plate to the mounting bracket. -
Page 16: Soft Focus Filter
ETUP Soft Focus Filter The version 2 of the Ovation Rêve E-3 comes with the soft focus filter already pre-installed in the shutter barrel, in front of the shutter blades and is being held by four filter holders. • To remove the soft focus filter, gently squeeze and slide the filter out from under the four filter holders. •... -
Page 17: Operation
PERATION 4. Operation Control Panel Operation Button Function <MENU> Exits from the current menu or function Enables the currently displayed menu or sets the currently selected value in to the current <ENTER> function <UP> Navigates upward through the menu list or increases the numeric value when in a function Navigates downward through the menu list or decreases the numeric value when in a <DOWN>... -
Page 18: Menu Map
PERATION Menu Map Refer to the Ovation Rêve E-3 product page on www.chauvetprofessional.com for the latest menu map. Main Level Programming Levels Description Selects DMX address (*highest channel 001–512* Address restricted to personality chosen) Virtual Color Wheel Color Temperature 1-channel: dimmer Manual Color Mixer 5-channel: dimmer, virtual color wheel (VCW), color temperature, hue, gobo rotator... - Page 19 PERATION Main Level Programming Levels Description 2800K 2900K 3000K 3100K 3200K 3300K 3400K 3500K Dimmer 0–255 3600K 3700K 3800K 3900K 4000K 4100K 4200K 4300K Preset white color temperatures. 4400K Emulates a tungsten lamp at the Color 4500K specified color temperature. Refer to the Temperature Color Temperature Chart for specific...
- Page 20 PERATION Main Level Programming Levels Description SCurve Linear Dimmer Sets the dimmer curve Curve Square Inverse Square Linear dimmer Dimmer Dimming curves, from fast (Dimmer 1) to Mode Dimmer 1–3 slow (Dimmer 3) Deactivates color calibration Sets red LED maximum value Green Sets green LED maximum value Color...
-
Page 21: Standalone Configuration
PERATION Standalone Configuration Use standalone configuration to operate the product without a DMX controller. Virtual Color Wheel Go to the Virtual Color Wheel main level. Select Virtual Color Wheel. Select the desired gel color (see Virtual Color Wheel Chart). Select the desired output level (000–255). Color Temperature To select a color temperature, do the following: Go to the Virtual Color Wheel main level. -
Page 22: Dimmer Curve
PERATION Dimmer Curve To set the dimmer curve, follow the instructions below: Go to the Dimmer Curve main level. Select the desired option (SCurve, Linear, Square, or Inverse Square). Dimmer Profiles This setting determines how fast the output of the Ovation Rêve E-3 changes when the output value is modified. -
Page 23: Virtual Color Wheel
PERATION Virtual Color Wheel The Ovation Rêve E-3 includes a feature called the Virtual Color Wheel (VCW). This feature is available as a standalone control mode for manual use and as a control channel in select DMX personalities. More than 30 premixed colors, custom blended by Chauvet engineers, are available to call up for easier programming. -
Page 24: Color Temperature Chart
PERATION Color Temperature Chart Color Temperature Red Value Green Value Blue Value Amber Value Mint Value 2800K 2900K 3000K 3100K 3200K 3300K 3400K 3500K 3600K 3700K 3800K 3900K 4000K 4100K 4200K 4300K 4400K 4500K 4600K 4700K 4800K 4900K 5000K 5100K 5200K 5300K 5400K... -
Page 25: Dmx Values
PERATION DMX Values 18Ch / 14Ch1 / 14Ch2 / 12Ch 12Ch 14Ch1 14Ch2 18Ch Function Value Percent/Setting Dimmer 000 255 0–100% – Dimmer fine 000 255 0–100% 000 255 0–100% – Red fine 000 255 0–100% Green 000 ... -
Page 26: 8Ch / 6Ch / 5Ch / 1Ch
PERATION 8Ch / 6Ch / 5Ch / 1Ch Function Value Percent/Setting – Dimmer 000 255 0–100% – – 000 255 0–100% – – Green 000 255 0–100% – – Blue 000 255 0–100% – – Amber 000 ... -
Page 27: Technical Information
ECHNICAL 5. Technical Information Product Maintenance To maintain optimum performance and minimize wear, clean this product frequently. Usage and environment are contributing factors in determining the cleaning frequency. Clean this product at least twice a month. Dust build-up reduces light output performance and can cause overheating. -
Page 28: Technical Specifications
ECHNICAL PECIFICATIONS 6. Technical Specifications Dimensions and Weight Length Width Height Weight Fixture only 20.44 in (519 mm) 13.07 in (332 mm) 20.53 in (522 mm) 18.6 lb (8.4 kg) w/ 5° lens extended, yoke up 41.60 in (1056 mm) 14.17 in (360 mm) 21.42 in (544 mm) 26 lb (11.7 kg) w/ 10°... -
Page 29: Contact Us
Contact Us Contact Us General Information Technical Support Chauvet World Headquarters Address: 3360 Davie Rd. Voice: (844) 393-7575 Davie, FL 33314 Fax: (954) 756-8015 Voice: (954) 577-4455 Email: chauvetcs@chauvetlighting.com Fax: (954) 929-5560 Toll Free: (800) 762-1084 Website: www.chauvetprofessional.com Chauvet U.K. Address: Pod 1 EVO Park Email: UKtech@chauvetlighting.eu...
