Haworth ZODY II Installation Instructions

Chair back assembly

Advertisement

Quick Links

Tools Required
3/16"
5mm
PARTS
Chair Back
(upholster)
A
S310
(S310)
5mm
M8 x 20mm Cap Screw
FOR MESH BACK ASSEMBLY ONLY
Slide lumbar (B) between frame
1
and fabric as shown
B
A
CUSTOMER SERVICE PHONE: 1-800-426-8562

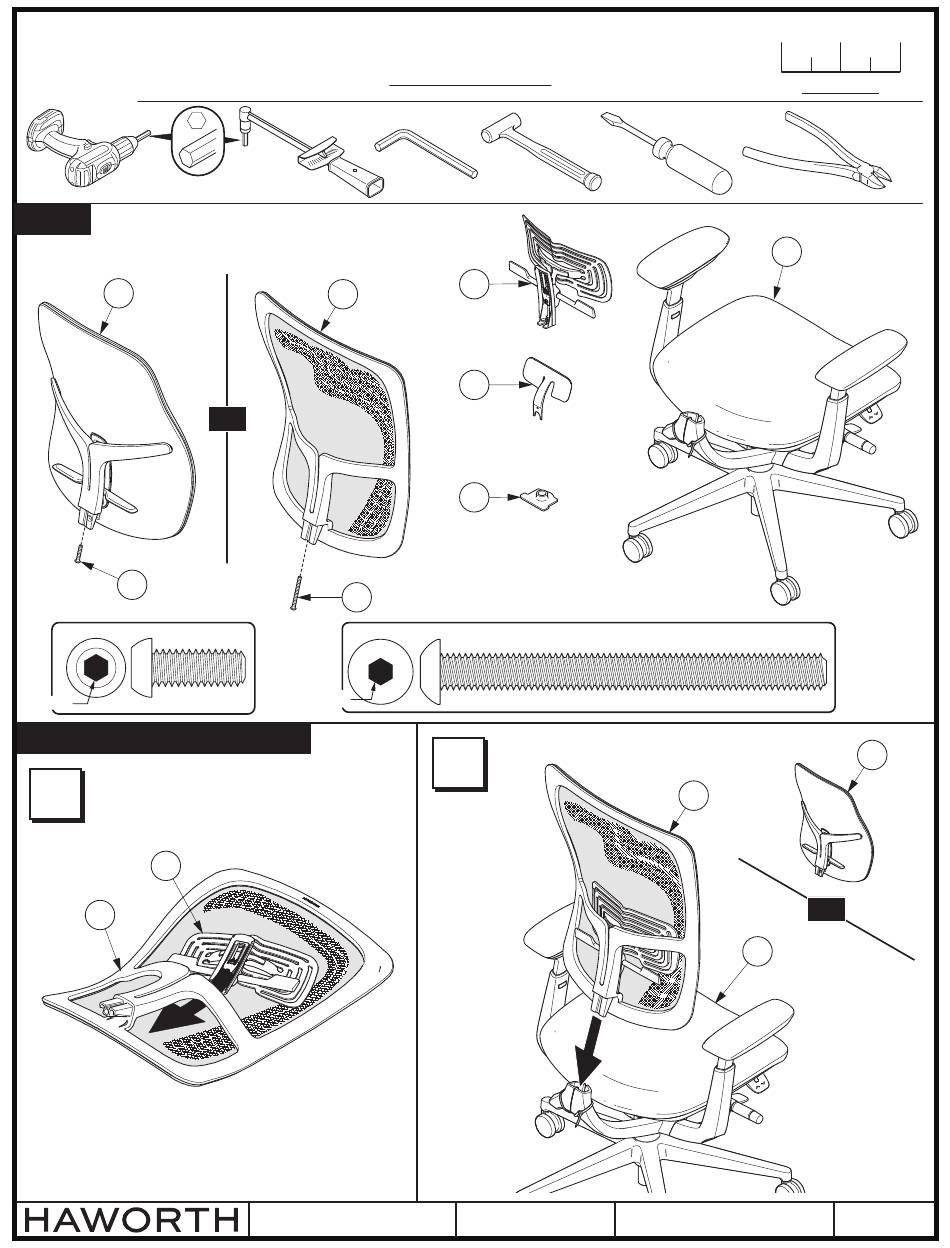

Chair Back Assembly
Installation Instructions
Torque Wrench
Chair Back
A
OR
S311
(S311)
3/16"
E.C.O. No:
5_32298
ZODY II / Zody LX
Chair Lumbar
(Optional)
B
Chair Pelvic
(Optional)
C
5/16-18
Nut
D
5/16 x 3" Button Head Screw
Insert chair back (A)
2
1 of 4
Page:
0
1/4
Scale 1 : 1
Chair Base
H
A
H
Part No:
6100-0249
1/2
1
1/4
A
OR
Rev:
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the ZODY II and is the answer not in the manual?

Questions and answers

Summary of Contents for Haworth ZODY II

  • Page 1 ZODY II / Zody LX Chair Back Assembly Installation Instructions Scale 1 : 1 Tools Required 3/16” Torque Wrench PARTS Chair Lumbar Chair Base Chair Back (Optional) (upholster) Chair Back Chair Pelvic (Optional) 5/16-18 S310 S311 (S310) (S311) 3/16” 5/16 x 3" Button Head Screw...
  • Page 2 Secure chair back (A) to base (H) 3/16” 5/16 x 3" Button Head Screw Torque = 8.5 N-m (75in-lbs) S311 NOTE: Upholstered back (Zody LX) does Zody II not use nut (D). Torque 8.5 N-m 3/16” S311 (75 in-lbs) Torque = 13.5 N-m (120in-lbs)
  • Page 3 CHAIR WITH LUMBAR - FOR MESH BACK ASSEMBLY ONLY Secure chair back (A) to base (H) Zody II Torque 8.5 N-m 3/16” S311 (75 in-lbs) (S311) 3/16” 5/16 x 3" Button Head Screw CHAIR WITH LUMBAR AND PELVIC - FOR MESH BACK ASSEMBLY ONLY...
  • Page 4 CHECK PELVIC - FOR MESH BACK ASSEMBLY ONLY Pull up on pelvic (C) NOTE: If pelvic (C) pulls out repeat STEP 5. CUSTOMER SERVICE PHONE: 1-800-426-8562 E.C.O. No: 5_32298 4 of 4 Rev: Page: Part No: 6100-0249...
