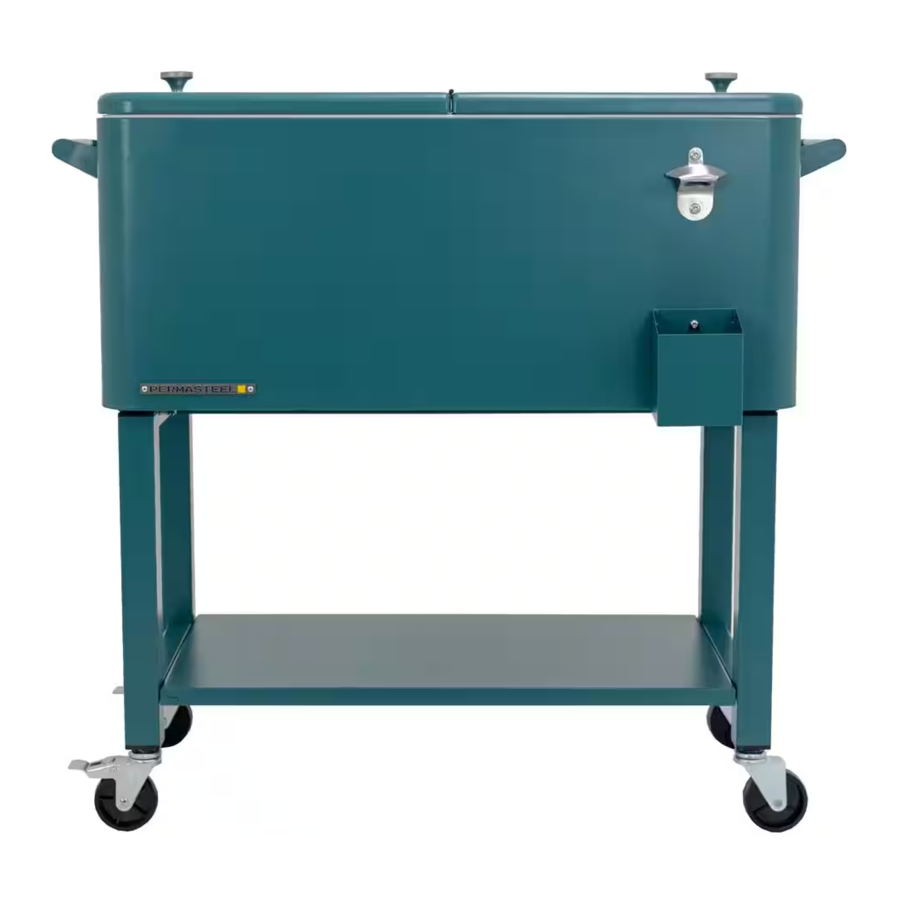

PERMASTEEL PS-223-80QT Manual

Parts List

If you are missing any parts or have damaged parts, please email us at info@youroutdoorkitchen.eu. For replacement parts, visit us at www.permasteel.life

Key	Description	Part Numbers	Qty
A	Lid Knob	20000500	2
B	Lid (Azure)	22302301	1
	Lid (Black)	22302302
	Lid (Teal)	22302320
	Lid (White)	22302322
C	Side Handle (Azure)	22302101	2
	Side Handle (Black)	22302102
	Side Handle (Teal)	22302120
	Side Handle (White)	22302122
	Side Handle (SS)	22302118
D	Body (Basin) (Azure)	22302001	1
	Body (Basin) (Black)	22302002
	Body (Basin) (Teal)	22302020
	Body (Basin) (White)	22302022
	Body (Basin) (SS)	22302018
E	Bottle Opener	20000100	1
F	Bottle Cap Catcher (Azure)	22302401	1
	Bottle Cap Catcher (Black)	22302402
	Bottle Cap Catcher (Teal)	22302420
	Bottle Cap Catcher (White)	22302422
	Bottle Cap Catcher (SS)	20502418
G	Leg Frame (Azure)	22302601	2
	Leg Frame (Black)	22302602
	Leg Frame (Teal)	22302620
	Leg Frame (White)	22302622
H	Bottom Shelf (Azure)	22302501	1
	Bottom Shelf (Black)	22302502
	Bottom Shelf (Teal)	22302520
	Bottom Shelf (White)	22302522
I	Cross Member (Azure)	22302701	1
	Cross Member (Black)	22302702
	Cross Member (Teal)	22302720
	Cross Member (White)	22302722
J	Caster	20000200	2
K	Caster with Brake	20000300	2
L	Drain Plug	20000400	1
AA	M6 x 13 Bolt	20005300	20
BB	M6 x 16 Bolt	20005500	4
CC	M6 x 13 Shoulder Bolt	20005400	2
DD	M4 x 32 Screw	20005100	2
	Manual	23309900	1

If you are missing any parts or have damaged parts, please email us at info@youroutdoorkitchen.eu. For replacement parts, visit us at www.permasteel.life

Hardware

The following hardware is provided in a poly bag.

M4x32mm Screw: 2 pcs
(Note: These screws are pre-attached to the lid knobs, please refer to step 7 below for more details.)

Tools

The following tools are required for assembly:

Allen wrench (provided)
Double open-end wrench (provided)
Phillips screwdriver (not provided)

Assembly Instructions

- Place the leg frames (G) on a clean and soft surface. Attach the bottom shelf (H) to the leg frames (G) with (4) M6x16mm bolts (BB) and tighten with the provided Allen wrench.
  Note: Do not fully tighten the bolts until the bottom shelf is aligned with the holes on the leg frames.
- Insert and thread the casters (J) into the leg frame (G) with the provided open end wrench.
- Insert and thread the casters with brake (K) into the other leg frame (G) with the provided open-end wrench.
- Attach the cross member (I) to the leg frames (G) using (6) M6x13mm bolts (AA) and fully tighten with the provided Allen wrench.
  Note: Fully tighten the screws left loose from step 1.
- The base assembly is now complete. Set aside the base until you are done with step 4.
- Please place the basin on a clean and soft surface before proceeding.
- Attach the side handles (C) to the body (D) using (12) M6x13mm bolts (AA), 6 bolts for each handle, and tighten with the provided Allen wrench.
- With the assistance of a helper, lift the basin assembly and place on top of the base assembly. Make sure the rubber inserts are placed inside the leg frame holes on the base assembly.
- Attach the bottle opener (E) to the body (D) using (2) M6x13mm bolts (AA) and tighten with the provided Allen wrench.
- Attach the cap catcher (F) to the body (D) using (2) M6x13mm shoulder bolts (CC).
- Note: The lid knobs (A) are pre-attached to the lid (B). Flip the lid upside down to reveal the lid knobs.
- Remove the knobs using a Phillips head screwdriver and re-assemble them on the lid right-side up.
- Attach the drainage plug (L) to the body (D). Tighten with the provided double open-end wrench.
- Be sure to install one rubber gasket on each side of the body basin and tighten the nut snugly with the provided wrench to prevent leaks.

Care & Maintenance

Manufacturer recommends the following care & maintenance:

Cooler must be drained of water and completely dried in and out with a soft-clean cloth after every use.
When the cooler is not in use for a prolonged period, it is recommended to store it in an enclosed dry area such as a storage shed or garage.
During the season when the cooler is frequently used, it is recommended to use a weather-proof cover to protect the cooler when not in use.
Periodically apply a light coat of automotive wax to the exterior of the cooler to protect & prolong the life & finish of the cooler.
We strongly recommend not rolling the cooler on rough surfaces such as pavers when the cooler is full with ice & drinks.
For further care & maintenance tips or questions, please email our customer service at info@youroutdoorkitchen.eu or visit us at www.permasteel.life

Hand tools only, use of power tools could damage the product.
Remove all components, hardware and tools from the box before assembly. Please separate all the hardware and be sure they match with "Hardware" list mentioned in this manual.
Please consider recycling all applicable packaging material.

Limited Warranty

If your Product is defective or otherwise requires parts, please email our Permasteel Customer Service at info@youroutdoorkitchen.eu or visit us at www.permasteel.life
