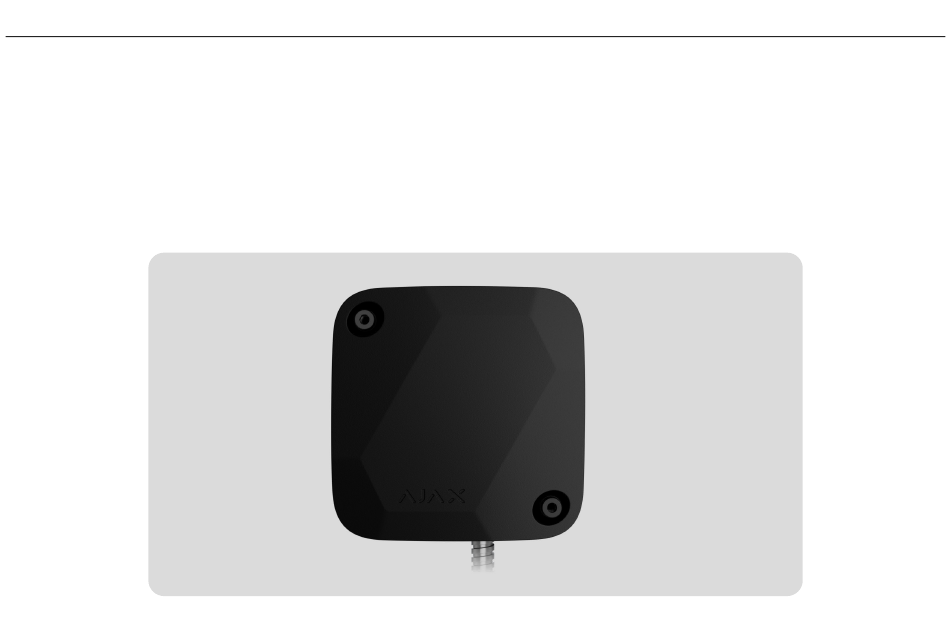

If the U/UTP cat.5 twisted pair cable is used for connection, the wired communication range can be up to 2,000 meters. Superior SeismoProtect G3 Fibra is a part of the Superior product line of devices. Only accredited Ajax Systems partners can sell, install, and administer Superior products.
Page 3
1. Screws for lid fixation. 2. Mounting plate.
Page 4
4. The place for the self-test device when Superior SeismoProtect G3 Fibra is mounted on metal surfaces with a mounting plate. 5. Marking for the welding joints on the mounting plate for installation on a metal surface.
Page 5
10. PCB contacts for drilling detection. 11. First tamper . It detects lid opening. 12. Fixing points. 13. Pogo pins for the enclosure drilling detection. 14. Connector for the self-test device. 15. LED indicator. 16. Fibra line terminal. 17. Perforated part. In case of flush mounting, you can remove it to route the cable out of the wall.
Page 6
18. Bubble level to check the inclination angle of the mount during installation. 19. Second tamper. It detects if Superior SeismoProtect G3 Fibra is detached from the surface or the mounting plate. Operating principle 00:00 00:12 Superior SeismoProtect G3 Fibra is a wired seismic detector with an additional shock sensor.
Page 7
, and notifies users and the monitoring company. All Superior SeismoProtect G3 Fibra alarms and events are recorded in the event feed of Ajax apps. Users and the security company know exactly where impact is detected. The notifications contain the name of a...
Page 8
The Ajax system can transmit alarms to the PRO Desktop monitoring app and the central monitoring station (CMS) in the formats of SurGard (Contact ID), SIA (DC- 09), ADEMCO 685, and other protocols Superior SeismoProtect G3 Fibra can transmit the following events:...
Page 9
1. Alarm when the device is detached from the surface. The device is fastened. 2. Lid tamper alarm. The lid tamper is recovered. 3. Seismic alarm. 4. Shock alarm. 5. Temperature rise alarm. Temperature is recovered. 6. Alarm when the lid integrity is broken. Lid integrity is restored. 7.
Page 10
You can find the device ID, loop (zone) number, and line number in the device states Selecting the installation site When choosing where to place Superior SeismoProtect G3 Fibra, consider the parameters that affect its operation: Fibra signal strength. The length of the cable used to connect the detector.
Page 11
Fibra signal strength is the ratio of undelivered or corrupted data packages to those expected over a specific time. The icon in the Devices tab in Ajax apps indicates the signal strength: Three bars — excellent signal strength. Two bars — good signal strength. One bar —...
Page 12
Superior SeismoProtect G3 Fibra can be connected at any point of the Fibra line. If the U/UTP cat.5 twisted pair cable is used for connection, the wired communication range can be up to 2,000 meters. Ajax systems support Beam, Ring, and Tree topologies.
Page 13
Verification using a calculator We have developed the Fibra power supply calculator to ensure that the project is designed correctly and the system will work in practice. The calculator helps to check the communication quality and cable length for wired Fibra devices when designing the system project.
Page 14
may lead to incorrect operation and loss of connection with the device. Tips for cable routing are available in the article Preparing cables for connection If you do not use bundled armored cable, some preparation is needed. Remove the insulating layer and strip the cable with a special insulation stripper. The ends of the wires inserted into the device terminals must be tinned or crimped with a sleeve.
Page 15
Joints or irregularities in the design of the protected surfaces can impair signal transmission. For example, doors with hinges should have a dedicated detector to ensure proper coverage.
Page 16
It is recommended that detectors be installed on each plane (walls, floor, ceiling) of the protected premises. If a single device cannot achieve the required coverage radius, several devices should cover the area so that their detection radii overlap by 0.5–1 m.
Page 17
The mounting plate can be used as a template for marking the drilling location. The central hole is used to fix the mounting plate. Install the plate with the corresponding anchor hole markings facing outward. 1. Drill the anchor hole. Use a drill to create a hole in the concrete surface with a diameter of 10 mm and a depth of at least 60 mm.
Page 18
4. Fix the mounting plate. Position the mounting plate over the anchor, then reinsert and tighten the M6×50 screw into the anchor to a torque of 8–10 Nm. 5. Position the self-test device. Place the self-test device in the designated hole on the mounting plate.
Page 19
8. Secure the self-test device. Fasten the self-test device to the dowel using the M4×12 H3 screw. 9. Remove the Superior SeismoProtect G3 Fibra lid and drill holes for the cable. When using the bundled armored cable, carefully break out the perforated part to bring the cable out.
Page 20
5–7 Nm. 11. Connect the self-test device. Feed the self-test device wire through the appropriate cutout in Superior SeismoProtect G3 Fibra and connect it to the detector’s connector. We recommend using high-quality tools and drills and working with caution to prevent the hole from moving off the markings.
Page 21
If the metal surface is flat and free of defects, you can skip using the mounting plate for installation. If the metal thickness at the installation site is less than 2.5 mm, welding the mounting plate is recommended. Before installation, remove the paintwork (if any) from the metal surface. Without the mounting plate With the mounting plate To install the device without the mounting plate:...
Page 22
4. Secure the self-test device. Fasten the self-test device. Choose screws based on the thickness of the metal surface. 5. Remove the Superior SeismoProtect G3 Fibra lid and make holes for the cable. When using the bundled armored cable, carefully break out the perforated part to bring the cable out.
Page 23
When tightening the screw, ensure that the screw edge is flush with the mounting plate. 7. Connect the self-test device. Feed the self-test device wire through the cutout in Superior SeismoProtect G3 Fibra and connect it to the detector’s connector.
Page 24
After completing all these installation steps, you can add the device to the hub. Do not install the detector 1. Outdoors. This can lead to false alarms and detector failure. 2. Inside premises where temperature and humidity values do not correspond to operating parameters .
Page 25
1. Turn off the lines power supply in the Ajax PRO app 1. Hub → Settings → Lines → Lines power supply. 2. Route the cable to connect Superior SeismoProtect G3 Fibra to the hub casing. Connect the wires to the required hub line.
Page 26
+24V — 24 V⎓ power terminal. A, B — signal terminals. GND — ground. 3. Run the cable from the hub to the detector enclosure through the hole you made. 4. Secure the cable with cable ties. 5. Connect the wires to the terminals according to the figure below. Be sure to follow the polarity and the order of connecting the wires.
Page 27
8. Turn on the lines power supply in the Ajax PRO app 1. Hub → Settings → Lines → Lines power supply. 9. Close the lid of Superior SeismoProtect G3 Fibra and fasten it with the anti- falling screw.
Page 28
Add the detector to the system Adding to the system Check the device compatibility before adding the detector to the system. Only verified partners can add and configure Superior devices in Ajax PRO apps Types of accounts and their rights Before adding the detector 1.
Page 29
6. Check the statuses in the Ajax app to ensure the space is disarmed and the hub is not starting an update. How to add Superior SeismoProtect G3 Fibra Two ways to add devices are available in the Ajax PRO app : automatically and manually.
Page 30
If the maximum number of devices (100 for Hub Hybrid (2G)) has already been added to the hub, you will receive an error notification while adding. Superior SeismoProtect G3 Fibra only works with one hub. When connected to a new hub, the detector stops exchanging data with the previous hub. When Superior SeismoProtect G3 Fibra is added to a new hub, it remains in the list of devices on the previous hub.
Page 31
Functionality testing Such tests are available for Superior SeismoProtect G3 Fibra: Fibra signal strength test — to determine the strength and stability of the signal at the device installation site. Detection zone test — to check how the device detects the impact and angle changes at the installation site.
Page 32
There is no connection with the hub via Fibra. The accelerometer is faulty. The seismic detector is faulty. Icons The icons display some Superior SeismoProtect G3 Fibra states. You can check them in Ajax apps in the Devices tab. Icon...
Page 33
The detector has detected a rapid temperature rise. The detector has detected that the temperature threshold has been exceeded. Superior SeismoProtect G3 Fibra is permanently deactivated. Learn more The device was not transferred to the new hub.
Page 34
The states include information about the device and its operating parameters. The states of Superior SeismoProtect G3 Fibra can be found in Ajax apps: 1. Go to the Devices tab. 2. Select Superior SeismoProtect G3 Fibra from the list. Parameter...
Page 35
Fibra is a protocol for transmitting events and alarms. Learn more The status of the connection between the hub and the detector: Online — the detector is connected to the hub. Connection via Fibra Offline — the detector has lost connection with the hub.
Page 36
Closed — the detector is installed on the mounting plate. The normal state of the enclosure. Detached from surface — the detector is removed from the mounting plate. Detached from surface and front lid open — the detector is removed from the mounting plate, and the integrity of the enclosure is compromised.
Page 37
Displays the status of the device’s deactivation setting: No — the device operates in normal mode and transmits all events. Lid only — the hub admin has disabled notifications of tamper triggering. Permanent deactivation Entirely — the hub admin has entirely excluded the detector from the system.
Page 38
Settings To change Superior SeismoProtect G3 Fibra settings, in the Ajax app: 1. Go to the Devices tab. 2. Select Superior SeismoProtect G3 Fibra from the list. 3. Go to Settings by tapping on the gear icon 4. Set the required parameters.
Page 39
The room name is displayed in the text of SMS and notifications in the events feed. When the option is disabled, the LED indicator of Alarm LED indication the detector does not notify of alarms or tamper triggering. The choice of mode depends on possible intruding actions: Seismic detector —...
Page 40
reinforced concrete structures, concrete walls, and partitions. Before selecting the sensitivity level, perform the detection zone test . If the detector fails to respond to shock in 5 out of 5 cases during the test, the sensitivity should be increased. Selecting the surface on which the device is installed to operate correctly: Glass...
Page 41
To test seismic detection, connect the self-test device. When the option is enabled, the system will notify Notify if temperature rapidly rises when the detector detects a rapid temperature rise. When the option is enabled, the system will notify Notify if lid integrity damaged if the lid is damaged.
Page 42
monitoring station when Superior SeismoProtect G3 Fibra detects shock. This setting is displayed if Device operating mode is set to Shock detector. When the option is enabled, the system will send an alarm to the user via Ajax app and to the monitoring station when Superior SeismoProtect G3 Fibra detects tilt.
Page 43
The test can be performed when Manual self-test the self-test device is connected to Superior SeismoProtect G3 Fibra. Opening the Superior SeismoProtect G3 Fibra User guide user manual in the Ajax app. Permanent deactivation With this setting, the user can disable events of the device without removing it from the system.
Page 44
No — the device operates in normal mode and transmits all events. Entirely — the device will not execute system commands or participate in automation scenarios, and the system will ignore device alarms and other notifications. Lid only — the system will ignore notifications of the triggering of the device tamper only.
Page 45
1. Go to the Devices tab. 2. Select Superior SeismoProtect G3 Fibra from the list. 3. Go to Settings by tapping on the gear icon 4. Go to the Manual self-test menu. To run the test, ensure that the self-test device is connected, the system is in disarmed mode, and another test is not in progress.
Page 46
When the self-test is completed, users and the CMS will receive a corresponding notification of the test results.
Page 47
Indication Indication Event Note Lights up green for about a The detector turns on as soon Switching on the detector. second. as the hub is powered up. Lights up green for a couple of Connecting the detector to the seconds until the detector is hub.
Page 48
Lights up green for about a Alarm/tamper triggering. second. Maintenance Check the detector’s functioning regularly. Clean the device enclosure of dust, cobwebs, and other contaminants as they emerge. Use soft, dry wipes suitable for equipment care. To clean the detector, do not use substances containing alcohol, acetone, petrol, or other active solvents.
Page 49
Warranty Warranty for the “Ajax Systems Manufacturing” Limited Liability Company products is valid for 2 years after the purchase. If the device does not operate properly, we recommend contacting support service first, as most technical issues can be resolved remotely.
