DoorProtect User Manual | Ajax Systems Support

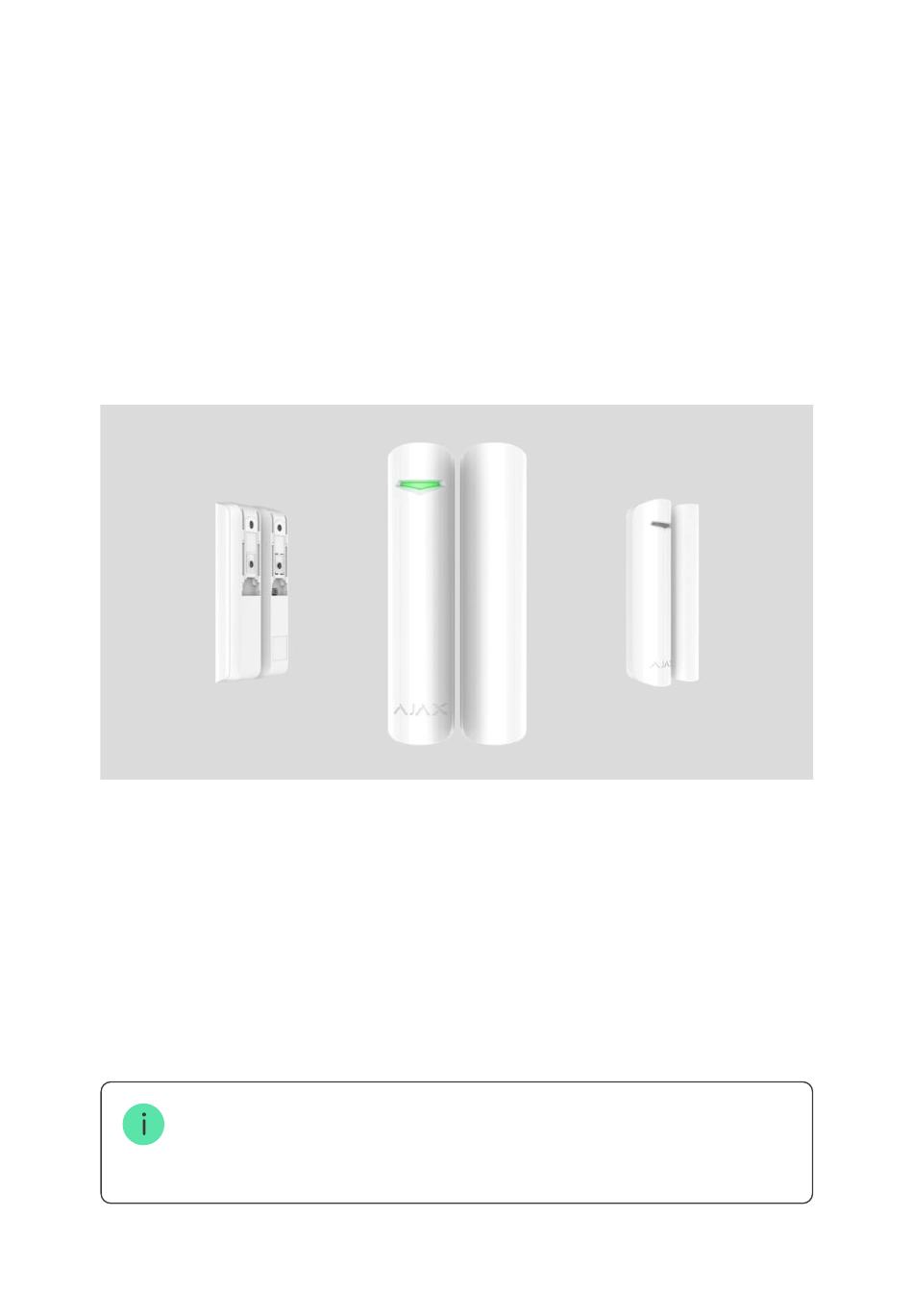

DoorProtect is a wireless door and window opening detector
designed for indoor use. It can operate up to 7 years from a pre-
installed battery and capable to detect more than 2 millions
openings. DoorProtect has a socket for connecting an external
detector.
https://support.ajax.systems/en/manuals/doorprotect/?_ga=2.166850040.754703337.1648293156-504169808.1647685641
DoorProtect User Manual
Updated January 24, 2022
The functional element of DoorProtect is a sealed contact reed relay. It
consists of ferromagnetic contacts placed in a bulb that form a
continuous circuit under the effect of a constant magnet.
26.03.2022 12.55
Side 1 af 26

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DoorProtect and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AJAX Systems DoorProtect

Summary of Contents for AJAX Systems DoorProtect

  • Page 1 DoorProtect has a socket for connecting an external detector. The functional element of DoorProtect is a sealed contact reed relay. It consists of ferromagnetic contacts placed in a bulb that form a continuous circuit under the effect of a constant magnet.

  • Page 2: Functional Elements

    1,200 m in the line of sight. Using the uartBridge ocBridge Plus integration modules, DoorProtect can be used as part of third party security systems. The detector is set up via Ajax apps for iOS, Android, macOS and Windows.

  • Page 3: Operating Principle

    8. Device switch 9. Tamper button Operating Principle DoorProtect consists of two parts: the detector with a sealed contact reed relay, and the constant magnet. Attach the detector to the door frame, while the magnet can be attached to the moving wing or sliding part of the door.
  • Page 4 26.03.2022 12.55 A small magnet works at a distance of 1 cm, and the big one — up to 2 After actuation, DoorProtect immediately transmits the alarm signal to the hub, activating the sirens and notifying the user and security company.
  • Page 5 DoorProtect User Manual | Ajax Systems Support 26.03.2022 12.55 2. Name the device, scan/write manually the QR Code (located on the body and packaging), and select the location room. 3. Select Add — the countdown will begin. 4. Switch on the device.
  • Page 6 DoorProtect User Manual | Ajax Systems Support 26.03.2022 12.55 For detection and pairing to occur, the detector should be located within the coverage area of the wireless network of the hub (at the same facility). The request for connection to the hub is transmitted for a short period of time at the moment of switching on the device.
  • Page 7 States The states screen contains information about the device and its current parameters. Find the DoorProtect states in the Ajax app: 1. Go to the Devices tab. 2. Select DoorProtect from the list.
  • Page 8 DoorProtect User Manual | Ajax Systems Support 26.03.2022 12.55 with the hub/range extender Connection OFine — the detector has lost connection with the hub/range extender Radio signal range extender connection status. ReX range extender name Displayed when the detector works via radio signal range extender Battery level of the device.
  • Page 9 DoorProtect User Manual | Ajax Systems Support 26.03.2022 12.55 disarm the security system after Night Mode Delay When Entering, sec entering the premises. What is delay when entering The time of Delay When Leaving in the Night mode. Delay when leaving (alarm...
  • Page 10 DoorProtect User Manual | Ajax Systems Support 26.03.2022 12.55 triggering on the device body. Entirely — the device is completely excluded from the system operation by the hub administrator. The device does not follow system commands and does not report alarms or other events.
  • Page 11 DoorProtect User Manual | Ajax Systems Support 26.03.2022 12.55 2. Go to the Devices tab. 3. Select DoorProtect from the list. 4. Go to Settings by clicking on the 5. Set the required parameters. 6. Click Back to save the new settings.
  • Page 12 DoorProtect User Manual | Ajax Systems Support 26.03.2022 12.55 If active, the detector will switch to the Arm in Night Mode armed mode when using the night mode The time of Delay When Entering in the Night mode. Delay when entering (alarm...
  • Page 13 DoorProtect User Manual | Ajax Systems Support 26.03.2022 12.55 sirens If active, added to the Alert with a siren if opening detected system are activated when the opening detected sirens If active, added to the Activate the siren if an external contact...
  • Page 14 DoorProtect User Manual | Ajax Systems Support 26.03.2022 12.55 without removing it from the system. Three options are available: No — the device operates normally and transmits all alarms and events Entirely — the device will not execute system commands or participate in...
  • Page 15 DoorProtect User Manual | Ajax Systems Support 26.03.2022 12.55 the building. NotiMcations are conMgured in two stages: setting up opening detectors and setting up sirens. Learn more about Chime Detectors settings 1. Go to the Devices menu. 2. Select the DoorProtect detector.

  • Page 16: Functionality Testing

    DoorProtect User Manual | Ajax Systems Support 26.03.2022 12.55 Indication Event Indication Note Lights up green for about Switching on the detector one second Detector connecting to Lights up for a few hub ocBridge seconds Plus uartBridge Lights up green for about...

  • Page 17: Installing The Detector

    26.03.2022 12.55 Installing the Detector Selecting the location Location of DoorProtect is determined by its remoteness from the hub and presence of any obstacles between the devices hindering the radio signal transmission: walls, inserted foors, large objects located within the room.
  • Page 18 The distance between the magnet and detector should not exceed 1 cm. When positioning the parts of DoorProtect in the same plane, use the big magnet. Its actuation threshold — 2 cm. Attach the magnet to the moving part of the door (window) to the right of the detector.
  • Page 19 Double-sided adhesive tape may be only used for temporary attachment. The tape will run dry in the course of time, which may result in falling of DoorProtect and actuation of the security system. Furthermore, the device may fail from a hit.
  • Page 20 DoorProtect User Manual | Ajax Systems Support 26.03.2022 12.55 attachment panel, you will receive a notiMcation. 3. Put the magnet on the attachment panel. Do not install the detector: 1. outside the premises (outdoors); 2. nearby any metal objects or mirrors causing attenuation or interference of the signal;...
  • Page 21 DoorProtect User Manual | Ajax Systems Support 26.03.2022 12.55 We recommend to install a wired detector at a distance not exceeding 1 meter — increasing the wire length will increase the risk of its damage and reduce the quality of communication between the detectors.
  • Page 22 If the external detector is actuated, you will receive a notiMcation. Detector Maintenance and Battery Replacement Check the operational capability of the DoorProtect detector on a regular basis. Clean the detector body from dust, spider web and other contaminations as they appear. Use soft dry napkin suitable for equipment maintenance.

  • Page 23: Tech Specs

    If the door opens 10 times a day and the ping interval is 60 seconds, then DoorProtect will operate up to 7 years from the pre-installed battery. Setting the ping interval of 12 seconds, you will reduce the battery life to 2 years.
  • Page 24 DoorProtect User Manual | Ajax Systems Support 26.03.2022 12.55 866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz Radio frequency band 905.0 – 926.5 MHz 915.85 – 926.5 MHz 921.0 – 922.0 MHz Depends on the region of sale.

  • Page 25: Complete Set

    DoorProtect User Manual | Ajax Systems Support 26.03.2022 12.55 Compliance with standards Complete Set 1. DoorProtect 2. SmartBracket mounting panel 3. Battery CR123A (pre-installed) 4. Big magnet 5. Small magnet 6. Outside-mounted terminal clamp 7. Installation kit 8. Quick Start Guide Warranty Warranty for the “AJAX SYSTEMS MANUFACTURING”...
