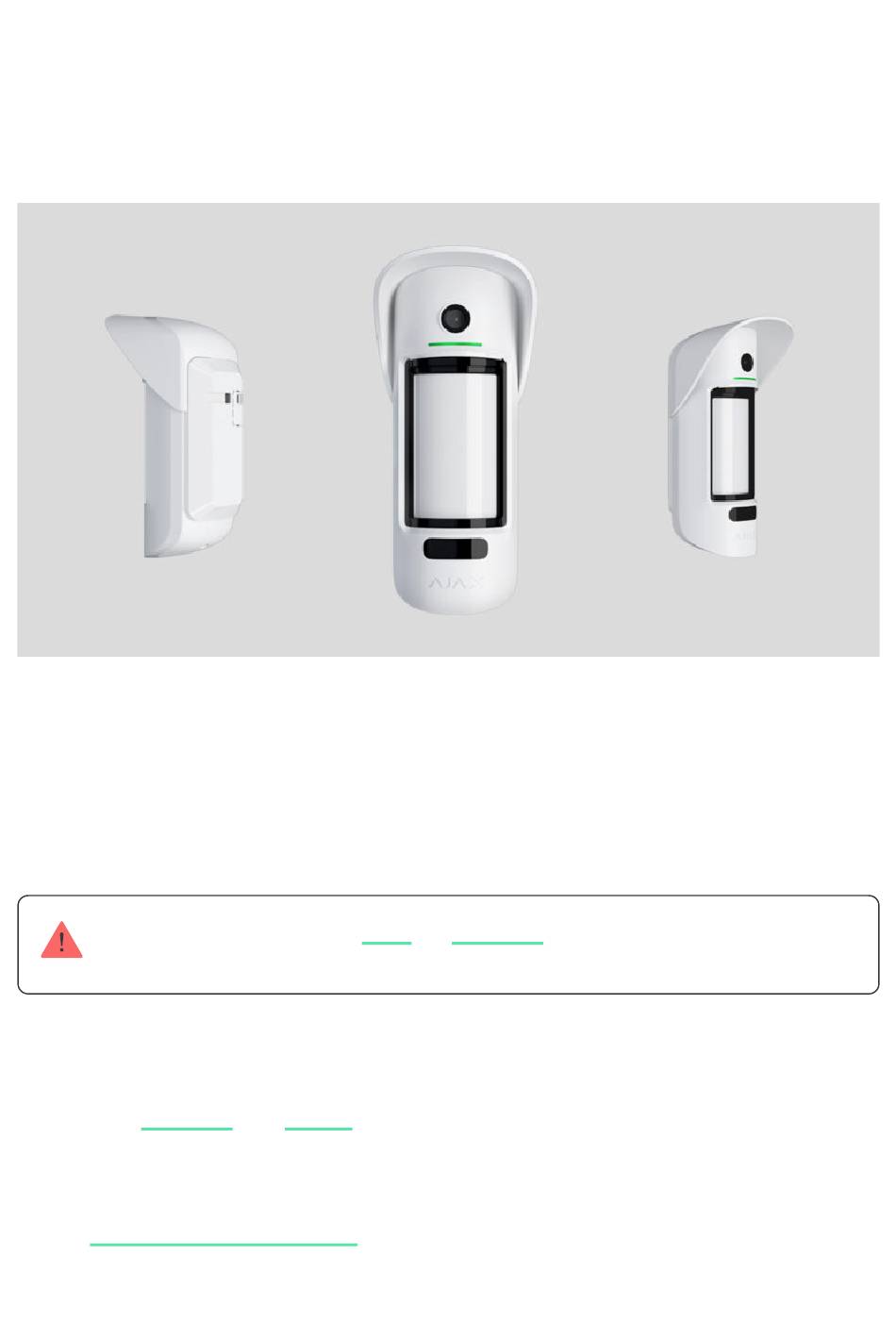

MotionCam Outdoor User Manual

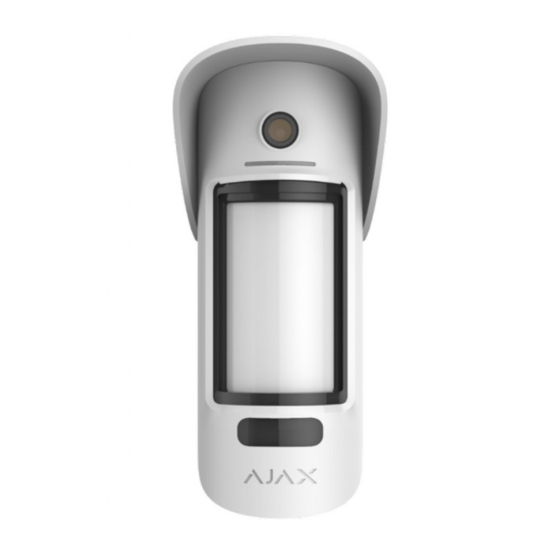

MotionCam Outdoor is a wireless outdoor motion detector with a camera for
alarm verification. Detects movement at a distance of 3 to 15 meters. Has anti-
masking protection, ignores animals when correctly configured and installed.
The detector only works with
range extenders, and ocBridge Plus and uartBridge integration modules is not supported!
MotionCam Outdoor works as part of the Ajax security system by connecting to
the hub via
Jeweller
range without obstacles is up to 1,700 meters.
Buy MotionCam Outdoor
Functional elements
Updated August 19, 2021
Hub 2
and
Wings
encrypted radio protocols. The communication
and
Hub 2 Plus
. Connecting to other hubs, ReX

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MotionCam Outdoor and is the answer not in the manual?

Questions and answers

Related Manuals for AJAX Systems MotionCam Outdoor

Summary of Contents for AJAX Systems MotionCam Outdoor

  • Page 1 Hub 2 Hub 2 Plus . Connecting to other hubs, ReX range extenders, and ocBridge Plus and uartBridge integration modules is not supported! MotionCam Outdoor works as part of the Ajax security system by connecting to the hub via Jeweller Wings encrypted radio protocols.
  • Page 2 1. Hood visor to protect camera and masking sensors from snow and rain 2. Camera 3. LED indicator 4. Motion detector lens 5. Infrared (IR) backlight for taking pictures in the dark 6. SmartBracket mounting plate. To remove the plate, slide it down The perforated part is necessary to trigger a tamper in case of any attempt to detach the detector from the surface.

  • Page 3: Operating Principle

    Operating principle 00:00 00:08 MotionCam Outdoor is an outdoor motion detector with a camera. IR sensors of the detector identify intrusions by detecting moving objects with temperatures close to that of the human body. Visual verification helps you instantly assess the situation, relieving users of unnecessary anxiety, and security companies —...
  • Page 4 Photo veri cation of alarms When the detector is triggered, the built-in MotionCam Outdoor camera can take 1 to 5 images with a resolution of 320 × 176 and up to 3 images with a resolution of 640 ×...

  • Page 5: Temperature Compensation

    640 × 352 Up to 20 seconds The table shows the delivery time for one photo when the signal strength between the hub and MotionCam Outdoor is 2–3 bars and the hub is connected via Ethernet. Temperature compensation The detector perceives a person and other objects as heat spots. The device monitors these heat spots and, if they move, signals an alarm.
  • Page 6 When set up and installed correctly, MotionCam Outdoor ignores animals up to 80 centimeters tall. The detector has two IR sensors and raises an alarm only when movement is detected by both sensors. If installed correctly, animals will only enter the detection zone of one of the detector’s sensors.
  • Page 7 of up to 10 centimeters from the lens) Painting over the detector lens Sticking over the lens or detector’s side The system informs the users and the monitoring station of the security company about masking. For additional protection and notification, enable the reaction of sirens to masking (you can do this in the detector Settings The maximum time of masking detection is 180 seconds (depends on the type...

  • Page 8: Adding To The System

    MotionCam Outdoor features two independent IR sensors, the signals of which are analyzed by a two-stage LISA algorithm. As soon as both IR sensors detect movement, LISA performs correlation and spectral analysis of the signals, which allows you to instantly distinguish between real threats and interference.
  • Page 9 5. Switch on the device by holding the power button for 3 seconds. To make sure MotionCam Outdoor is connected to the hub, the detector must be located at the same secured facility as the system (within the range of the hub’s radio network).
  • Page 10 MotionCam Outdoor only works with one hub. When connected to a new hub, the detector stops sending commands to the old hub. Once added to a new hub, MotionCam Outdoor is not removed from the device list of the old hub. This must be done through the Ajax app.
  • Page 11 MotionCam Outdoor has been disabled due to the exceeding of the number of alarms Learn more MotionCam Outdoor has temporarily disabled tamper triggering events Learn more States The states include information about the device and its operating parameters. The states of MotionCam Outdoor can be found in the Ajax app: 1.
  • Page 12 Connection status between the hub and the MotionCam Outdoor detector: Connection Online — the detector is connected Offline — no connection to the detector Wings Signal Strength Wings signal strength between the hub and MotionCam Outdoor. Recommended values — 2-3 bars.
  • Page 13 Wings is a protocol for transmitting MotionCam Outdoor photo verification in case of an alarm MotionCam Outdoor camera status: Online — camera is enabled and can take photos Camera Offline — there is no connection with the detector camera on Wings frequencies...
  • Page 14 To change the detector settings in the Ajax app: 1. Go to the Devices tab. 2. Select MotionCam Outdoor from the list. 3. Go to Settings by clicking on the gear icon 4. Set the parameters. 5. Click Back to save the new settings.
  • Page 15 the room is displayed in the SMS text and in notifications in the event feed Sensitivity level of the motion detector. The choice depends on the type of object, the presence of potential sources of false alarms, and the protected area: Low —...
  • Page 16 The higher the resolution, the more detailed the image is. However, keep in mind that high resolution will increase the delivery time of photos to the hub Learn more Selecting the number of photos in case of alarm: No photo 1 photo Series of 2 Send photo in case of alarm...
  • Page 17 If active, added to the system are Alert with a siren if motion is detected activated when motion is detected by the MotionCam Outdoor detector sirens If active, added to the system are activated when the sensors of the MotionCam Outdoor detector are masked.
  • Page 18 Lower sensor of the detector Masking sensors All motion sensors together Learn more Switches the detector to the Wings signal strength test mode. The test checks the signal strength between the hub and the detector at Wings frequencies to Wings Signal Strength Test determine the optimum installation place Learn more Switches the detector to the signal attenuation...
  • Page 19 Photo veri cation of alarms in Ajax apps If the Send photo in case of alarm option is enabled for MotionCam Outdoor, alarms in Ajax apps will be accompanied by a series of photos (the number depends on the settings).
  • Page 20 (in JPEG format) or the entire series (in GIF or MP4 format). Learn more about photo veri cation Indication The MotionCam Outdoor LED indicator may light up red or green, depending on the status of the detector.

  • Page 21: Functionality Testing

    Functionality testing The Ajax security system has several tests for choosing the right installation place for the devices. MotionCam Outdoor tests do not start straight away but not later than over a single hub-detector ping period (36 seconds under default settings of the hub).

  • Page 22: Detector Placement

    4. Go to Settings Detector placement MotionCam Outdoor is suitable for the protection of the area around the secured site. It may guard a courtyard of a private house, a parking, unheated premises, and other sites. The detector can be installed both outdoors and indoors.

  • Page 23: Signal Strength

    Signal strength Locate MotionCam Outdoor in a place with stable Jeweller and Wings signal strength (2-3 bars in the Ajax app). When choosing a place for installation, consider the distance between the detector and the hub and the presence of any obstacles between the devices hindering the radio signal passage: walls, intermediate floors, or large-size objects located in the room.
  • Page 24 Detection Zone Test to determine the sector in which the detector recognizes motion as accurately as possible. Make sure that no obstacles block the view of the detector. Note that MotionCam Outdoor does not detect movement behind the glass. Therefore, do...
  • Page 25 not install the detector in locations where an open window or door can obstruct its view. When installing, also consider the width of the detection zone. Incorrect detector placement can lead to false alarms. Detection distance Detection zone width 3 meters 4.7 meters 6 meters 9.4 meters...

  • Page 26: Detector Installation

    Closer than 1 meter to the hub. Detector installation Before installing MotionCam Outdoor, be sure to select the optimal location following the requirements of this manual! Before installation, be sure to set up the desired detection distance of the detector (Detection Distance scrollbar).
  • Page 27 The detector should be installed at the recommended height to ensure the correct operation of the pet immunity function. To install the SmartBracket mount on ties, first make holes in it. 2. Install the detector on the SmartBracket panel. 3. Leave the detector detection zone (horizontal angle of view — 90°) and make sure there is no movement within the detector field of view.

  • Page 28: Maintenance

    7. Attach MotionCam Outdoor to the mounting plate, wait for the calibration to complete, and tighten the screw at the bottom of the body. The screw is needed for more reliable fastening and protection of the detector from quick dismantling.

  • Page 29: Technical Speci Cations

    Technical Speci cations Classification Radio-interlinked photoelectric security detector Installation method Outdoors and indoors Type of detector Wireless Transmission of events and alarms Jeweller radio protocol Alarm delivery time: 0.15 s Transmission of a series of photos Wings radio protocol Photo delivery time under default settings: up to 9 seconds Hub 2, Hub 2 Plus Compatibility...
  • Page 30 Shooting series of up to 5 photos Learn more Infrared backlight for shooting in the dark Protection against false triggering Tamper protection Protection against masking Temperature sensor Motion alarms are transmitted to CMSs that support SIA (DC-09) and Contact ID protocols CMS compatibility CMS software with support for photo-veri cation of alarms...

  • Page 31: Complete Set

    5. Installation kit 6. Quick Start Guide Warranty The warranty for the AJAX SYSTEMS MANUFACTURING Limited Liability Company products is valid for 2 years after purchase and does not apply to the bundled batteries. If the device does not function correctly, please contact the Support Service first.
