Outdoor Siren User Manual

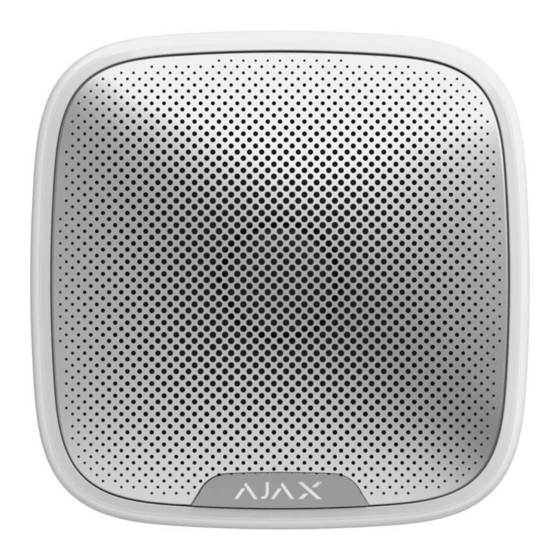

Outdoor Siren is a wireless outdoor alerting device with a sound volume of
up to 113 dB. Equipped with a bright LED frame and pre-installed battery,
Outdoor Siren can be quickly installed, set up, and operate autonomously
up to 5 years.
Connecting to the Ajax security system via the secured
radio
Jeweller
protocol, Outdoor Siren communicates with the
at a distance of up to
hub
1,500 m in line of sight.
The device is set up via the
for iOS, Android, mac OS, and
Ajax apps
Windows. The system notifies users of all events through push
notifications, SMS, and calls (if activated).
Outdoor Siren operates with Ajax hubs only and does not support connecting via uart
Bridge or oc Bridge Plus integration modules.
The Ajax security system can be connected to a central monitoring station
of a security company.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the StreetSiren and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AJAX Systems StreetSiren

Summary of Contents for AJAX Systems StreetSiren

  • Page 1 Outdoor Siren User Manual Outdoor Siren is a wireless outdoor alerting device with a sound volume of up to 113 dB. Equipped with a bright LED frame and pre-installed battery, Outdoor Siren can be quickly installed, set up, and operate autonomously up to 5 years.

  • Page 2: Functional Elements

    Functional elements 1. LED frame 2. Light indicator 3. Siren buzzer behind the metal net 4. Smart Bracket attachment panel 5. External power supply connection terminals 6. QR code 7. On/off button 8. Place of fixing the Smart Bracket panel with a screw Operating Principle Outdoor Siren significantly improves the efficiency of the security system.
  • Page 3 Connecting Before starting the connection: 1. Following the hub user guide, install the . Create an account, add Ajax app the hub, and create at least one room. 2. Switch on the hub and check the internet connection (via Ethernet cable and/or GSM network).
  • Page 4 4. Switch on the device by holding the power button for 3 seconds. The on/off button is recessed into the body of the siren and quite tight, you can use a thin solid object to press it. For detecting and pairing to occur, the device should be located within the coverage of the wireless network of the hub (at the same protected object).
  • Page 5 States 1. Devices 2. Outdoor Siren Parameter Value The temperature of the device which is measured on the Temperature processor and changes gradually Jeweller Signal Strength The signal strength between the hub and device Connection The connection status between the hub and device...
  • Page 6 Battery Charge Battery level of the device The tamper button state, which reacts to the opening of the device body Routed Through ReX Displays the status of using the ReX range extender External Power The external power supply state Alarm Volume Volume level in case of alarm Alarm Duration Duration of the alarm sound...
  • Page 7 3. Settings Setting Value First field Device name, can be edited Room Selecting the virtual room to which the device is assigned Selecting the security group to which the siren is assigned. When assigned to a group, the siren and its indication are Alarms in group mode related to alarms and events of this group.
  • Page 8 Settling the time of the siren alarm (from 3 to 180 seconds per Alarm Duration (sec) alarm) If active, the accelerometer reacts to moving or tearing off Alarm if moved from the surface If activated, the siren LED blinks once every 2 seconds when the Armed mode indication security system is armed If activated, the siren indicates arming and disarming by LED...

  • Page 9: Performance Testing

    Switching off The LED frame lights up for 1 second, then blinks three times The LED frame blinks 6 times in the corner then full frame Registration failed blinks 3 times and the siren switches off Security system is armed (if The LED frame blinks one time and the siren emits a short indication activated) sound signal...
  • Page 10 If the signal level is low (one bar), we cannot guarantee stable operation of the detector. Take all possible measures to improve the quality of the signal. At least, move the detector: even a 20 cm shift can significantly improve the quality of signal reception. If the detector has low or unstable signal strength even after moving, use ReX Radio signal range extender Outdoor Siren is protected from dust/moisture (IP54 class), which means it...
  • Page 11 Installation process 1. If you are going to use an external power supply (12 V), drill a hole for the wire in Smart Bracket. Before installation, make sure that there the wire insulation is not damaged! You need to drill a hole in the mounting panel to lead out the external power supply wire. 2.

  • Page 12: Maintenance

    Maintenance Check the operational capability of Outdoor Siren regularly. Clean the siren body from dust, spider web, and other contaminants as they appear. Use a soft dry napkin suitable for tech equipment. Do not use any substances containing alcohol, acetone, gasoline, and other active solvents to clean the detector.

  • Page 13: Complete Set

    4. Installation kit 5. Quick Start Guide Warranty Warranty for the “AJAX SYSTEMS MANUFACTURING” LIMITED LIABILITY COMPANY products is valid for 2 years after the purchase and does not apply to the pre-installed battery. If the device does not work correctly, you should first contact the support service —...
