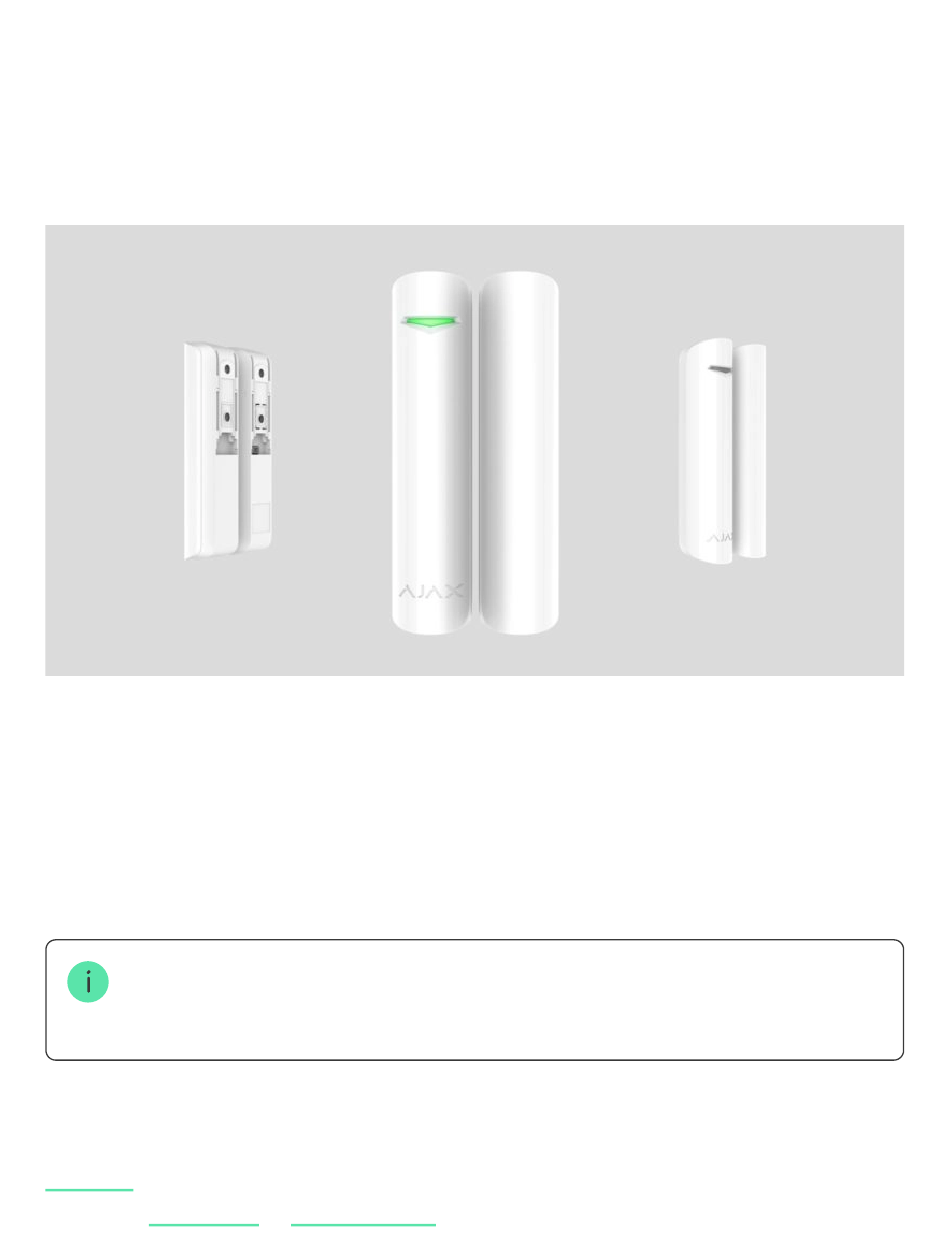

DoorProtect is a wireless door and window opening detector designed for indoor
use. It can operate up to 7 years from a pre-installed battery and capable to detect
more than 2 millions openings. DoorProtect has a socket for connecting an
external detector.
The functional element of DoorProtect is a sealed contact reed relay. It consists of
ferromagnetic contacts placed in a bulb that form a continuous circuit under the effect of a
constant magnet.
DoorProtect operates within the Ajax security system, connecting via the protected
Jeweller
radio protocol. Communication range is up to 1,200 m in the line of sight.
Using the
uartBridge
used as part of third party security systems.
DoorProtect User Manual
Updated November 18, 2021
or
ocBridge Plus
integration modules, DoorProtect can be

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DoorProtect and is the answer not in the manual?

Questions and answers

Related Manuals for AJAX Systems DoorProtect

Summary of Contents for AJAX Systems DoorProtect

  • Page 1 2 millions openings. DoorProtect has a socket for connecting an external detector. The functional element of DoorProtect is a sealed contact reed relay. It consists of ferromagnetic contacts placed in a bulb that form a continuous circuit under the effect of a constant magnet.

  • Page 2: Functional Elements

    The Ajax security system is self-sustaining, but the user can connect it to the central monitoring station of a private security company. Buy opening detector DoorProtect Functional Elements 1. DoorProtect 2. Big magnet (should be placed to the right of the detector) 3.

  • Page 3: Operating Principle

    9. Tamper button Operating Principle DoorProtect consists of two parts: the detector with a sealed contact reed relay, and the constant magnet. Attach the detector to the door frame, while the magnet can be attached to the moving wing or sliding part of the door. If the sealed contact reed relay is within the coverage area of the magnetic eld, it closes the circuit, which means that the detector is closed.
  • Page 4 Only users with administrator rights can add the device to the hub. How to pair the detector with the hub: 1. Select the Add Device option in the Ajax app. 2. Name the device, scan/write manually the QR Code (located on the body and packaging), and select the location room.
  • Page 5 To connect the detector to a third-party security central unit using the uartBridge ocBridge Plus integration modules, follow the recommendations in the user manual of the respective device. States The states screen contains information about the device and its current parameters. Find the DoorProtect states in the Ajax app:...
  • Page 6 1. Go to the Devices tab. 2. Select DoorProtect from the list. Parameter Value Device temperature. It is measured on the processor and changes gradually. Displayed in 1°C increment. Temperature Acceptable error between the value in the app and temperature at the installation site: 2–4°C Signal strength between the hub/range extender and the opening detector.
  • Page 7 What is delay when leaving Primary Detector The primary detector status The status of the external detector connected to External Contact DoorProtect If the option is active, the detector is always in armed mode and noti es about alarms Always Active Learn more...
  • Page 8 1. Select the hub if you have several of them or if you are using the PRO app. 2. Go to the Devices tab. 3. Select DoorProtect from the list. 4. Go to Settings by clicking on the 5. Set the required parameters.
  • Page 9 First eld The name can contain up to 12 Cyrillic characters or up to 24 Latin characters Selecting the virtual room to which DoorProtect is Room assigned. The name of the room is displayed in the text of SMS and noti cations in the event feed Selecting delay time when entering.
  • Page 10 Available for devices with rmware version 5.55.0.0 or higher How to nd the rmware version or the ID of the detector or device? If active, DoorProtect primarily reacts to Primary Detector opening/closing If active, DoorProtect registers external detector...
  • Page 11 3.50 and later) What is Attenuation Test User Guide Opens DoorProtect User Guide in the Ajax app Allows the user to disconnect the device without removing it from the system. Three options are available: No — the device operates normally and transmits all alarms and events Entirely —...
  • Page 12 Learn more about Chime Detectors settings 1. Go to the Devices menu. 2. Select the DoorProtect detector. 3. Go to its settings by clicking the gear icon in the upper right corner. 4. Go to the Chime Settings menu. 5. Select the events to be noti ed by the siren: If a door or a window is open.

  • Page 13: Functionality Testing

    Attenuation Test Installing the Detector Selecting the location Location of DoorProtect is determined by its remoteness from the hub and presence of any obstacles between the devices hindering the radio signal transmission: walls, inserted oors, large objects located within the room.
  • Page 14 The distance between the magnet and detector should not exceed 1 cm. When positioning the parts of DoorProtect in the same plane, use the big magnet. Its actuation threshold — 2 cm. Attach the magnet to the moving part of the door (window) to the right of the detector.
  • Page 15 Double-sided adhesive tape may be only used for temporary attachment. The tape will run dry in the course of time, which may result in falling of DoorProtect and actuation of the security system. Furthermore, the device may fail from a hit.
  • Page 16 4. closer than 1 m to the hub. Connecting a Third-Party Wired Detector A wired detector with the NC contact type can be connected to DoorProtect using the outside-mounted terminal clamp. We recommend to install a wired detector at a distance not exceeding 1 meter —...
  • Page 17 If the door opens 10 times a day and the ping interval is 60 seconds, then DoorProtect will operate up to 7 years from the pre-installed battery. Setting the ping interval of 12 seconds, you will reduce the battery life to 2 years.

  • Page 18: Tech Specs

    Battery Replacement Tech specs Sensor Sealed contact reed relay Sensor resource 2,000,000 openings 1 cm (small magnet) Detector actuation threshold 2 cm (big magnet) Tamper protection Socket for connecting wire detectors Yes, NC Jeweller Radio communication protocol Learn more 866.0 – 866.5 MHz 868.0 –...

  • Page 19: Complete Set

    5. Small magnet 6. Outside-mounted terminal clamp 7. Installation kit 8. Quick Start Guide Warranty Warranty for the “AJAX SYSTEMS MANUFACTURING” LIMITED LIABILITY COMPANY products is valid for 2 years after the purchase and does not apply to the pre-installed battery.
  • Page 20 If the device does not work correctly, you should rst contact the support service — in half of the cases, technical issues can be solved remotely! The full text of the warranty User Agreement Technical support: support@ajax.systems...
