MotionCam User Manual
Updated March 20, 2021

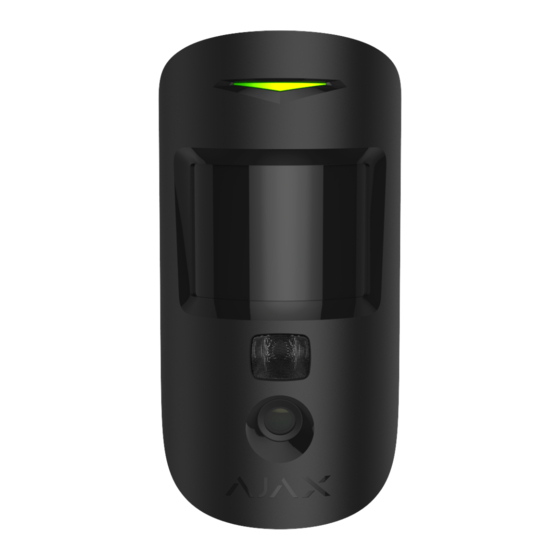

MotionCam is a wireless motion detector with visual alarm veri cation for indoor use. It
operates for up to 4 years on bundled batteries, detects movement at up to 12 meters, ignores
animals, but recognizes a human move instantly. MotionCam works within Ajax security
systems, connecting to a hub through the two secure radio protocols. The detector uses
Jeweller
to transmit alarms and events, and Wings to transmit photos. Wireless coverage may
reach up 1,700 m line-of-sight.
The detector is compatible only with
Hub 2
or
range extender,
ocBridge Plus
and
uartBridge
The detector is con gured via iOS, Android, macOS, and Windows-based
alerted of all alarms and events via push noti cations, SMS, and calls (if enabled).
The Ajax security system can be used for self-reliant monitoring, or can be connected to a
security company's central monitoring station.
Buy MotionCam motion detector featuring visual alarm veri cation

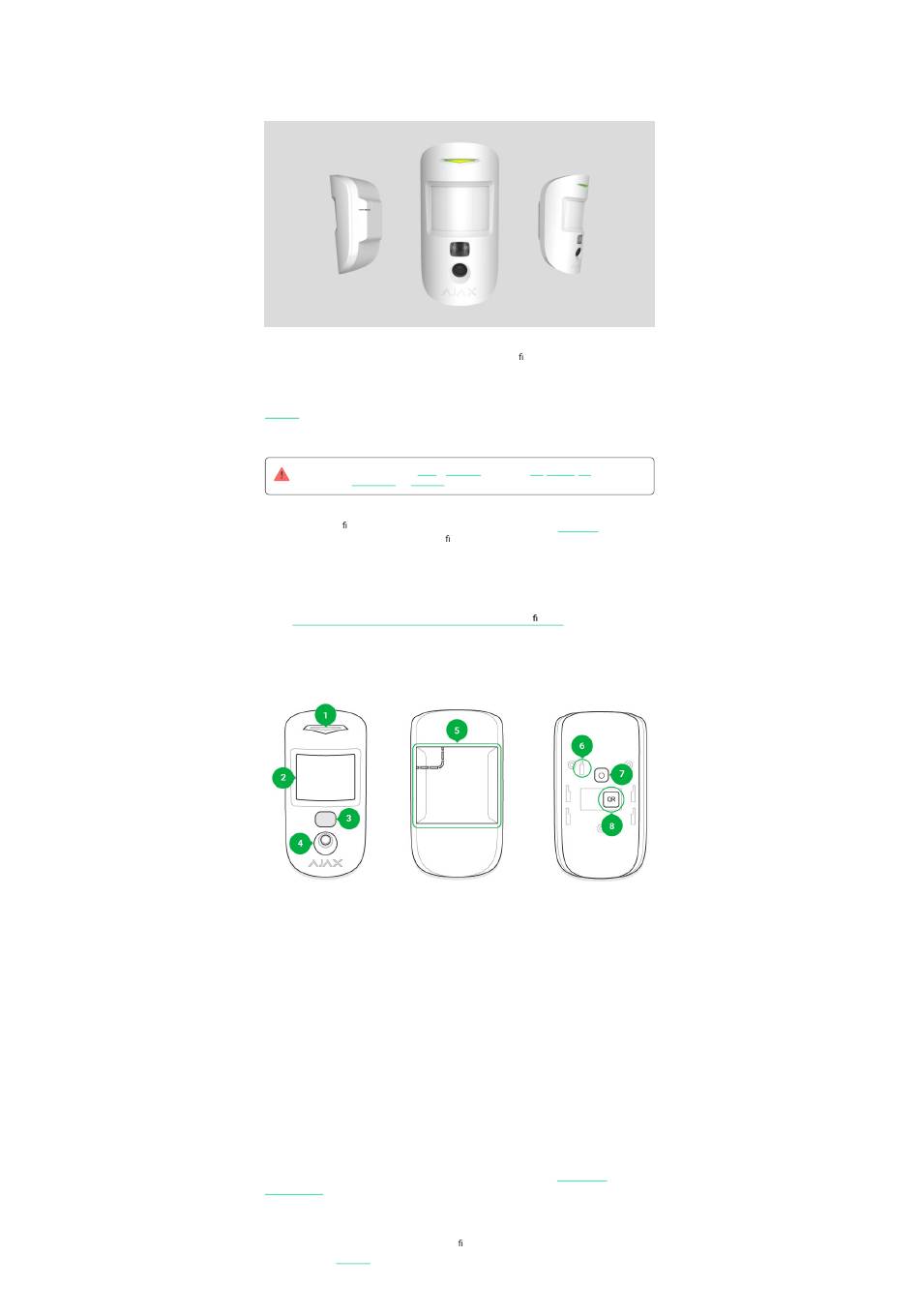

Functional Elements
1. LED indicator
2. Motion detector lens
3. Infrared illumination for shooting in the dark
4. Camera
5. SmartBracket mounting panel (the perforated part is necessary for tamper activation in case
of an attempt to detach the detector from the surface)
6. Tamper button
7. Power button
8. QR code
Operating Principle
The infrared sensor of MotionCam detects intrusion into the secured premises by identifying
moving objects with a temperature close to that of the human body. The
compensation
function makes the detector effective inside premises with temperature ranging
from 0 to +40°C. If placed and adjusted properly, MotionCam ignores pets.
When movement is detected, the armed detector instantly transmits an alarm signal to the hub.
The hub activates the connected sirens and noti es the user and the security company.
MotionCam uses
Jeweller
radio protocol to transmit alarms and events to the hub.
The built-in MotionCam camera can take from 1 to 5 shots with the resolution of 320×240 and
up to 3 shots with the resolution of 640×480 pixels. A series of photos is displayed in the app as
an animation, so the user is able to evaluate the unfolding of the event over time. Photos are
Hub 2 Plus
. Connection to
Hub Hub Plus ReX
,
,
radio signal
integration modules is not supported!
Ajax apps
. Users are
temperature
