DTM System NANO User Manual

1-CHANNEL RADIO RECEIVER
User manual
I. GENERAL INFORMATION
The NANO radio receiver is a device that enables remote control of devices/controllers using WIŚNIOWSKI
remote control transmitters. The receiver has one channel that operates in monostable mode. The
memory of the radio receiver allows you to program 150 transmitters operating in the KeeLoq® system at
the frequency of 433.92 MHz.
II. TECHNICAL DATA
- Power supply
- Current consumption
- Frequency
- Memory
- Dimensions
- Operating temperature
- Ingress Protection Rating
- Number of channels
- Output
- Load
[V] AC / DC
III. RECEIVER INSTALLATION
Before installing the radio receiver,
switch off the power supply voltage of
the device to which the receiver is
connected.
The electrical connection should be
carried out in accordance with fig. 1,
where the receiver is presented with a
description of the terminals.
Connecting the 12-24 [V] AC / DC power
supply is indicated by the lighting of the
LED indicator. Each activation of the
output channel is signaled by the LED
blinking.
DTM System hereby declares that the radio receiver complies with Directive 2014/53/EU. The full text of the EU
declaration of conformity is available at www.dtm.pl.
The presented symbol informs that a given electrical or electronic device, after its end of use, must not be disposed of with
household waste. The device should be delivered to a specialized collection point. Detailed information on the nearest
collection point is available from your local authority. In addition, the product can be returned to your local distributor when
purchasing another device with similar characteristics. With the correct disposal of your device, you conserve valuable
natural resources and avoid any negative effects on health and the environment, which can be put at risk in case of
inappropriate waste handling.
12... 24 [V] AC / DC
30 [mA]
433 [MHz]
150 WIŚNIOWSKI transmitters
46 (68 with handles) x 46 x 22 [mm]
-20 ° [C] to + 55 ° [C]
IP20
1
1xNO
1 [A] / 24

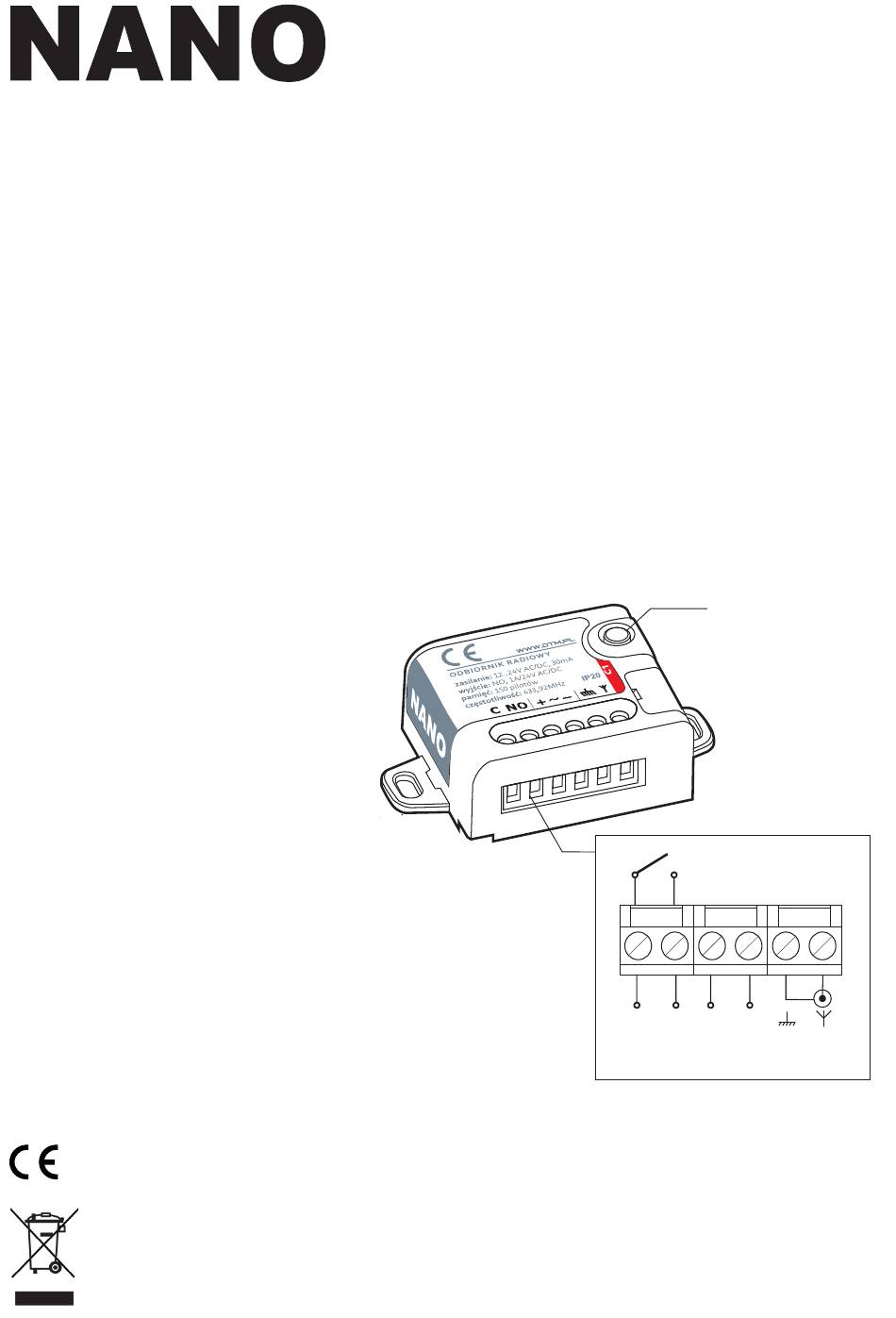

Fig. 1. View of the receiver
with description of the pins.
C1 programming button
with LED indicator
pin description
12-24V
C
NO
antenna
power
supply
