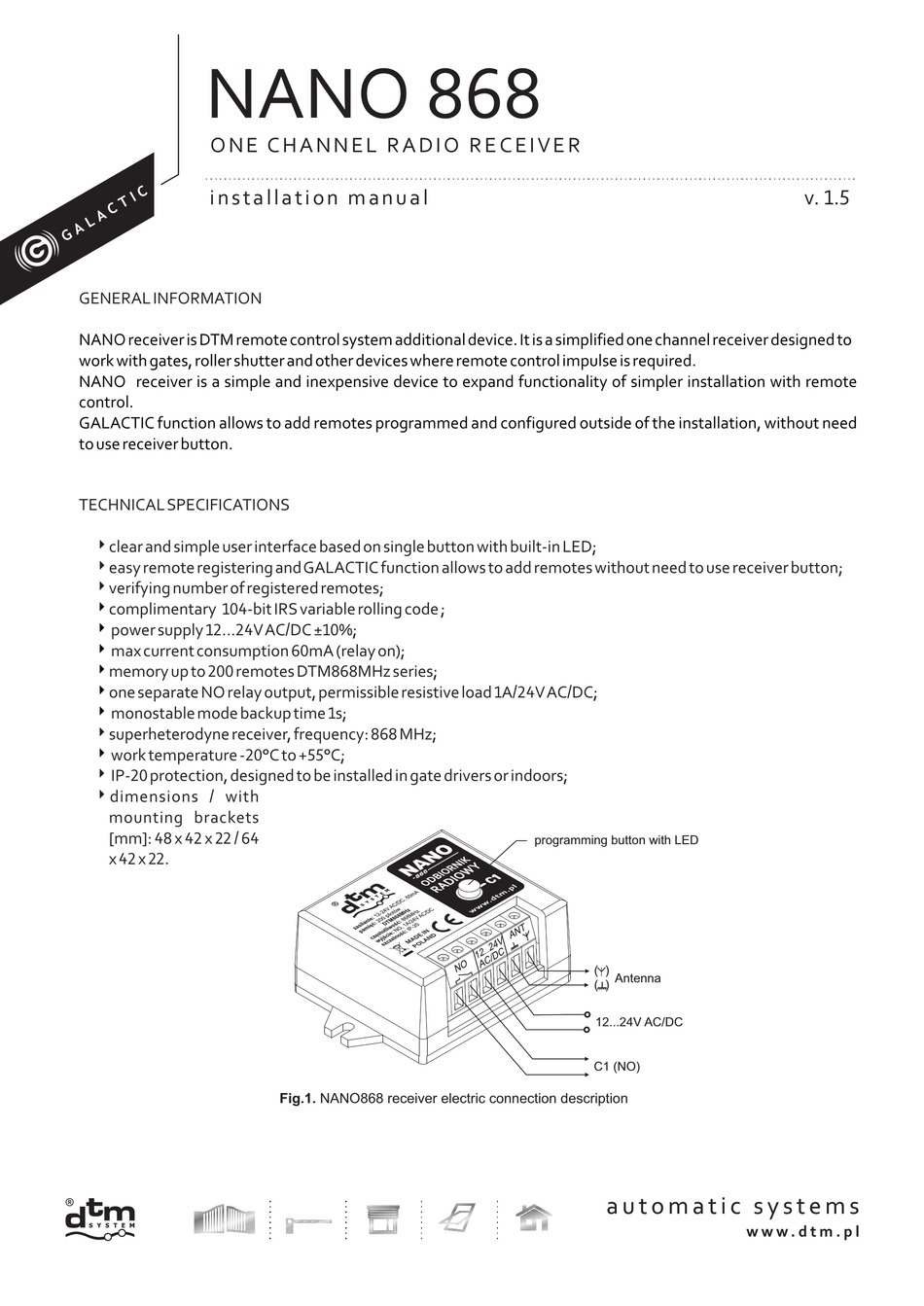

NANO 868
O N E C H A N N E L R A D I O R E C E I V E R
i n s t a l l a t i o n m a n u a l
GENERAL INFORMATION
NANO receiver is DTM remote control system additional device. It is a simplified one channel receiver designed to
work with gates, roller shutter and other devices where remote control impulse is required.
NANO receiver is a simple and inexpensive device to expand functionality of simpler installation with remote
control.
GALACTIC function allows to add remotes programmed and configured outside of the installation, without need
to use receiver button.
TECHNICAL SPECIFICATIONS
4
clear and simple user interface based on single button with built-in LED;
4
easy remote registering and GALACTIC function allows to add remotes without need to use receiver button;
4
verifying number of registered remotes;
4
complimentary 104-bit IRS variable rolling code ;
4
power supply 12...24V AC/DC ±10%;
4
max current consumption 60mA (relay on);
4
memory up to 200 remotes DTM868MHz series;
4
one separate NO relay output, permissible resistive load 1A/24V AC/DC;
4
monostable mode backup time 1s;
4
superheterodyne receiver, frequency: 868 MHz;
4
work temperature -20°C to +55°C;
4
IP-20 protection, designed to be installed in gate drivers or indoors;
4
dimensions / with
mounting brackets
[mm]: 48 x 42 x 22 / 64
x 42 x 22.
Fig.1. NANO868 receiver electric connection description
programming button with LED
( )
Antenna
( )
12...24V AC/DC
C1 (NO)
v. 1.5

Advertisement

loading
Need help?

Need help?

Do you have a question about the GALACTIC NANO 868 and is the answer not in the manual?

Questions and answers

Summary of Contents for DTM System GALACTIC NANO 868

  • Page 1 NANO 868 O N E C H A N N E L R A D I O R E C E I V E R i n s t a l l a t i o n m a n u a l v.
  • Page 2 1. Installation Receiver designed for use inside buildings or inside other automation equipment. Ensure proper working conditions in line with technical parameters. Do not mount in locations exposed to high humidity and frequent sudden changes of temperature. Due to externally accesible screw connection provide galvanic isolation from other devices and wires. Attention to thermal insulation of automation elements which can reach high temperatures (motors, transformers, circuits implementing, heat sink etc.).
  • Page 3 2.4. Entering Galactic authentication code to NANO receiver To enter an authentication code to receiver it is necessary to have remote with programmed authentication code. To enter an authentication code to receiver press the C1 button twice. LED goes out for 8 seconds. During this time press and hold for 5 seconds two buttons of the BLINK remote.
  • Page 4 Appropriate legal acts regulate details of the warranty. DTM System hereby declares that the radio receiver complies with Directive 2014/53 / EU. The full text of the EU Declaration of Conformity is available at the Internet address.
