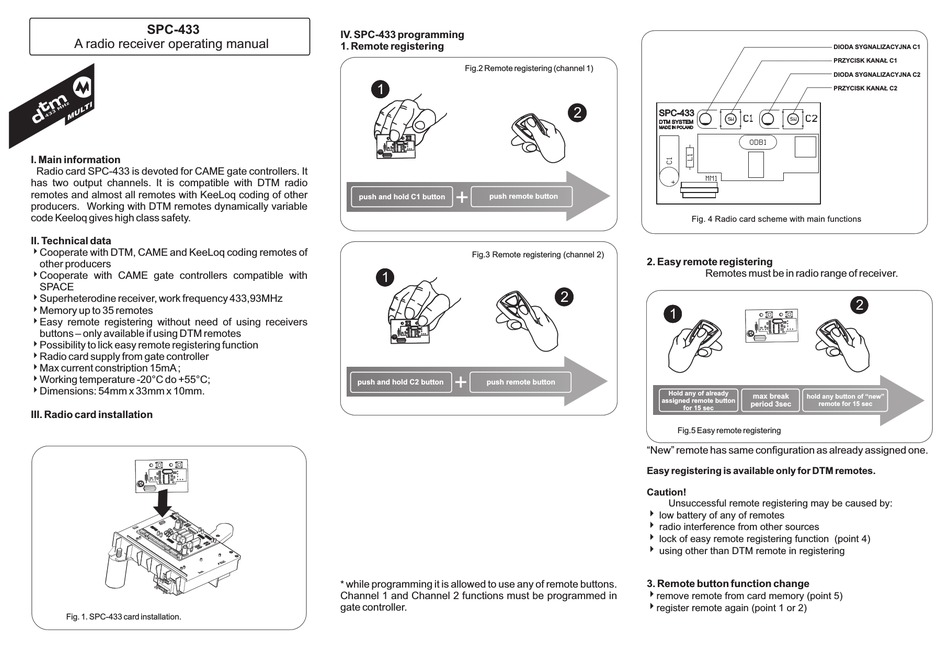

SPC-433
A radio receiver operating manual

I. Main information

Radio card SPC-433 is devoted for CAME gate controllers. It
has two output channels. It is compatible with DTM radio
remotes and almost all remotes with KeeLoq coding of other
producers. Working with DTM remotes dynamically variable
code Keeloq gives high class safety.

II. Technical data

4
Cooperate with DTM, CAME and KeeLoq coding remotes of
other producers
4
Cooperate with CAME gate controllers compatible with
SPACE
4
Superheterodine receiver, work frequency 433,93MHz
4
Memory up to 35 remotes
4
Easy remote registering without need of using receivers
buttons – only available if using DTM remotes
4
Possibility to lick easy remote registering function
Radio card supply from gate controller
4
4
Max current constription 15mA ;
4
Working temperature -20°C do +55°C;
4
Dimensions: 54mm x 33mm x 10mm.

III. Radio card installation

Fig. 1. SPC-433 card installation.

IV. SPC-433 programming

1. Remote registering

Fig.2 Remote registering (channel 1)
1
1
+
push remote button
push and hold C1 button
Fig.3 Remote registering (channel 2)
1
1
+
push and hold C2 button
push remote button
*
while programming it is allowed to use any of remote buttons.
Channel 1 and Channel 2 functions must be programmed in
gate controller.
2
Fig. 4 Radio card scheme with main functions

2. Easy remote registering

Remotes must be in radio range of receiver.
2
1 1
Hold any of already
assigned remote button
for 15 sec
Fig.5 Easy remote registering
"New" remote has same configuration as already assigned one.
Easy registering is available only for DTM remotes.
Caution!
Unsuccessful remote registering may be caused by:
4
low battery of any of remotes
4
radio interference from other sources
4
lock of easy remote registering function (point 4)
4
using other than DTM remote in registering

3. Remote button function change

4 remove remote from card memory (point 5)
4
register remote again (point 1 or 2)
DIODA SYGNALIZACYJNA C1
PRZYCISK KANAŁ C1
DIODA SYGNALIZACYJNA C2
PRZYCISK KANAŁ C2
2
max break
hold any button of "new"
period 3sec
remote for 15 sec
