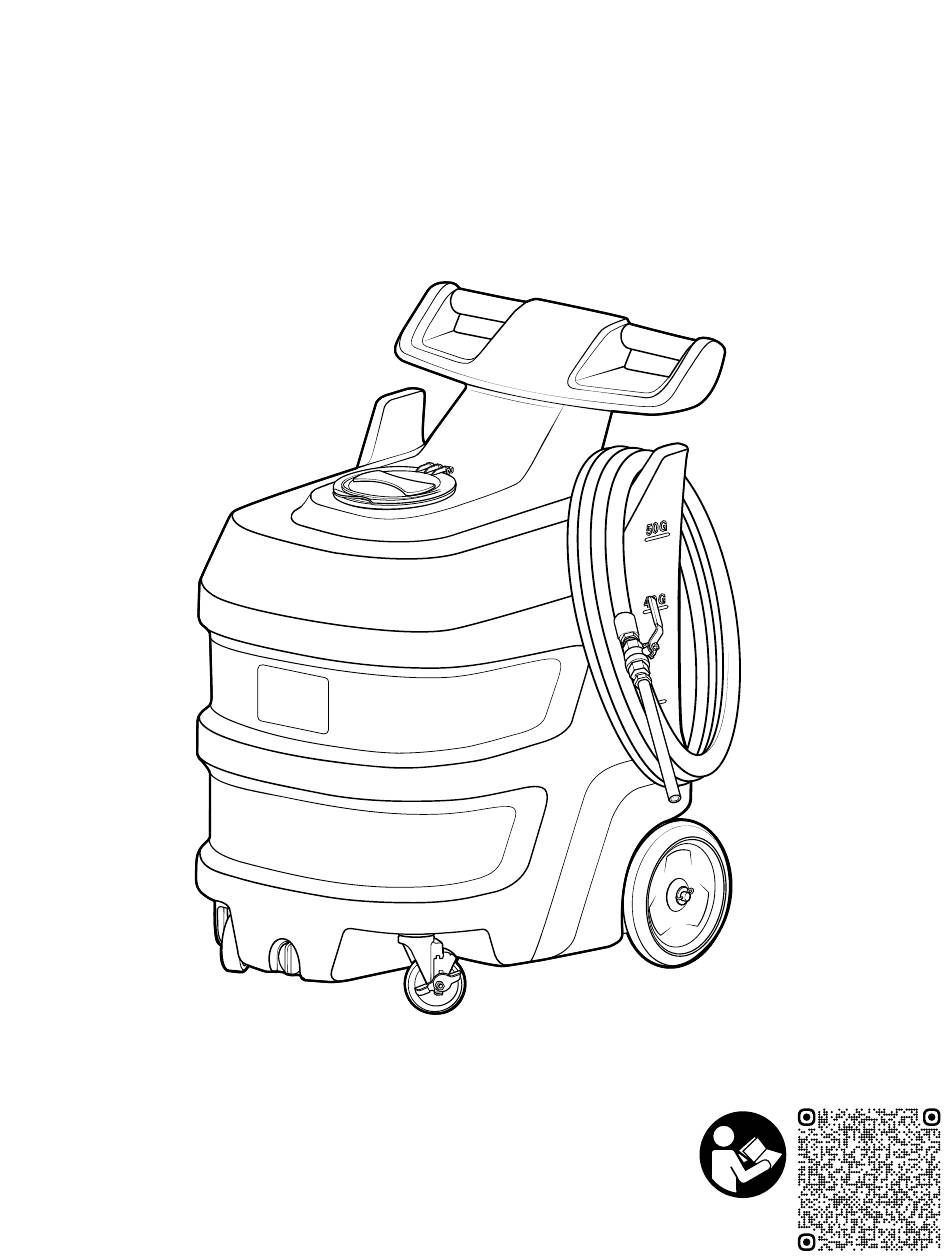

- Page 1 50 Gallon High Volume Foam Unit Service Manual FI-50NT-HV READ ALL INSTRUCTIONS BEFORE USING OR SERVICING THIS UNIT. KEEP THIS MANUAL IN A LOCATION THAT IS READILY AVAILABLE TO USERS AND SERVICE TECHNICIANS. Scan this code for English (Original Instructions)
- Page 2 Always flush the unit with fresh water thoroughly when switching from an alkaline to an acid or an acid to an alkaline. Model: FI-50NT-HV V20240809 • Page 2 of 12...
-
Page 3: Protect The Environment
• Crescent wrench (2x) • #2 Phillips head screwdriver • ⁷/16 in. (11 mm) open-ended wrench • #3 Phillips head screwdriver • Flat head screwdriver • Hose cutters • Thread seal tape • Knife Model: FI-50NT-HV V20240809 • Page 3 of 12... - Page 4 50 psi (3.4 bar). If the air gauge reads more or less than 50 psi (3.4 bar), adjust pressure by turning the knob on the top of the air regulator. Model: FI-50NT-HV V20240809 • Page 4 of 12...
-
Page 5: Tank Assembly
Swivel caster - stainless - 5 in. 8 CST5SS-L clearance - 4 in. wheel - with lock Ball valve - PVC - 3/ 4 NPT to 3/ 4 FNPT - 9 BVPVC34MF Buna seal Model: FI-50NT-HV V20240809 • Page 5 of 12... - Page 6 Wheel - 10 in. - non-marking Flat washer for 5/8 in. od pipe or axle - 18 FW58 stainless steel - 0.64 in. id x 1.2 in. od x 0.05 in. thk WHLA-AXL26 Model: FI-50NT-HV V20240809 • Page 6 of 12...
-
Page 7: Plate Assembly
Hex head stainless bushing - 15 HHSB3412 3/ 4 in. MPT x 1/2 in. FPT 16 SST34 Stainless tee 3/ 4 FPT Stainless hose barb 1/2 MPT x 17 HBSS1238 3/8 barb Model: FI-50NT-HV V20240809 • Page 7 of 12... - Page 8 Stainless steel union - ¼ in. FPT Tsunami water separator/air dryer - 12 WS-20CFM 20 CFM - 1/ 4 in. FPT ports Air fitting ¼ MPT x plug - nickel-plated 13 AP14 brass WSA-20CFM* *Optional assembly sold separately Model: FI-50NT-HV V20240809 • Page 8 of 12...
- Page 9 Hose barb - stainless steel - 1/ 4 in. 4 HBSS1438 MPT x 3/8 in. barb Screw band clamp - stainless steel - 5 SSC38 for 3/8 in. hose NVA-NV14-PF Model: FI-50NT-HV V20240809 • Page 9 of 12...
- Page 10 Bulkhead adapter - stainless - ¼ NPT 7 SSA14BKH x ¼ NPSM 8 SSSFN12 Serrated flange nut - stainless - ½ in. Air fitting ¼ MPT x plug - nickel- 9 AP14 plated brass RGA-R14-PF-HV Model: FI-50NT-HV V20240809 • Page 10 of 12...
-
Page 11: Hose Assembly
HBSS3410 Stainless hose barb 3/ 4 MPT x 1 barb Screw band clamp - stainless steel - 2 SSC10 for 1 in. hose 1 in. id blue hose - hybrid TPE - 3 H10BL-F available per ft. HA10BL-50 Model: FI-50NT-HV V20240809 • Page 11 of 12... -
Page 12: Wand Assembly
Hex head stainless bushing - 3/ 4 in. 4 HHSB3412 MPT x 1/2 in. FPT 1/2 in. NPT wand - polished stainless - 5 W1210 10 in. long - threaded one end only SSWA1010 Model: FI-50NT-HV V20240809 • Page 12 of 12...
