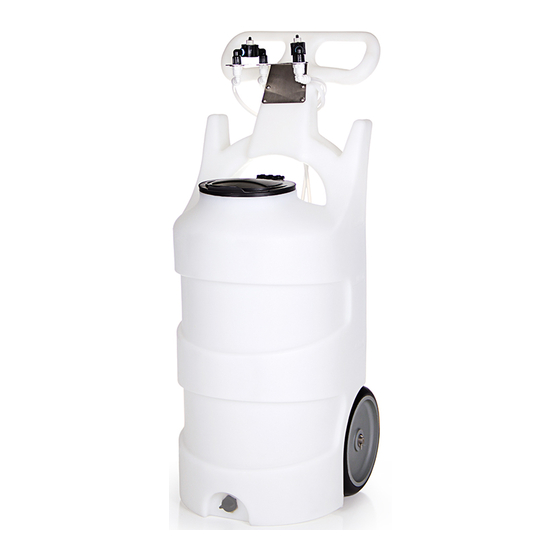

- Page 1 USER MANUAL MODEL NUMBER: FG-10N-2 FG-10NK-2 FG-10NV-2 AND RELATED UNITS 10 Gallon Air Operated Portable Fog Equipment English (Original Instructions)
-
Page 2: Protect The Environment
Please dispose of packaging materials, old machine components, and hazardous fluids in an environmentally safe way according to local waste disposal regulations. Always remember to recycle. *Specifications and parts are subject to change without notice. Model Number: FG-10N-2, FG-10NK-2, FG-10NV-2 Page 2 of 7 | 20221205... -
Page 3: Specifications
Viton (V) Kalrez (K) Add bold option codes to item number as shown. For standard options, no option code is needed. Examples: • FG-10N-2 (standard unit with Santoprene pump seals) • FG-10NV-2 (unit with Viton pump seals) REQUIREMENTS Compressed air requirements 50 psi (3.4 bar) with 7 cfm (198.3 l/min) -
Page 4: After Use Instructions
• Check the suction tube and screen for debris and clean as needed. • Drain compressor tank on a regular basis to ensure proper operation of pump. Model Number: FG-10N-2, FG-10NK-2, FG-10NV-2 Page 4 of 7 | 20221205... -
Page 5: Optional Components
ITEM NUMBER: TANK-10N-A DFP7 (see parts list for color options) TANK-10N AS1-VS FWAX15 SSP12 SSAXLE14 DP-A PVCV34FM OPTIONAL COMPONENTS AIR HOSE ASSEMBLY WATER SEPARATOR ITEM NUMBER: AH30 ITEM NUMBER: WS-20CFM Model Number: FG-10N-2, FG-10NK-2, FG-10NV-2 Page 5 of 7 | 20221205... - Page 6 (Available per .) H38CP (Available per .) H38CP QFBH38 (Available per ft.) QFSEL38 STR38-IL HBSSEL1438 HHPB3414 PVCV34FM Plate - Back View SSA14 SEL14M BVB14 AP25 H38CP (Available per .) QFSEL38 QFSEL38 Model Number: FG-10N-2, FG-10NK-2, FG-10NV-2 Page 6 of 7 | 20221205...
- Page 7 STAINLESS HOSE BARB ELBOW 1/4 INCH NPT X 3/8 HOSE BARB WS-20CFM TSUNAMI WATER SEPARATOR 20 CFM HHSB1418 HEX HEAD BUSHING 1/4 MPT X 1/8 FPT HHPB3414 HEX HEAD POLY REDUCER BUSHING 3/4 X 1/4 Model Number: FG-10N-2, FG-10NK-2, FG-10NV-2 Page 7 of 7 | 20221205...
- Page 8 4. The five switches in the the bottom right (Dual Mode t2) control the run time. The active time for each function is equal to the combined values of any switch(es) that are ON. NOTICE: the timer is factory set at 2 minute delay, 8 minute run time. FOAMit PN:TR120MF Timer Setting Example...
