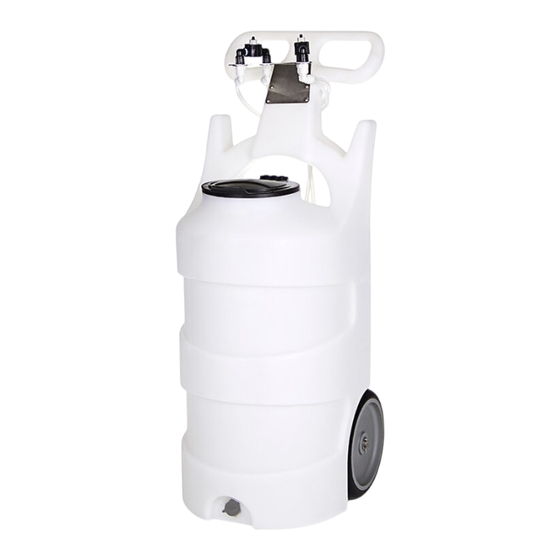

- Page 1 USER MANUAL MODEL NUMBER: FG-10N-3 FG-10NK-3 FG-10NV-3 AND RELATED UNITS 10 Gallon Air Operated Portable Fog Equipment English (Original Instructions)
-
Page 2: Protect The Environment
Please dispose of packaging materials, old machine components, and hazardous fluids in an environmentally safe way according to local waste disposal regulations. Always remember to recycle. Specifications and parts are subject to change without notice. Model Number: FG-10N-3, FG-10NK-3, FG-10NV-3 Page 2 of 7 | 20221202... -
Page 3: Specifications
Viton (V) Kalrez (K) Add bold option codes to item number as shown. For standard options, no option code is needed. Examples: • FG-10N-3 (standard unit with Santoprene pump seals) • FG-10NV-3 (unit with Viton pump seals) REQUIREMENTS Compressed air requirements 50 psi (3.4 bar) with 9 cfm (254.9 l/min) -
Page 4: After Use Instructions
(BVB14) and disconnect the compressed air line from the unit. 8. Before moving the unit, always lower the fog mast completely and secure it in the lowest position. Model Number: FG-10N-3, FG-10NK-3, FG-10NV-3 Page 4 of 7 | 20221202... -
Page 5: Tank Assembly
Tank Assembly DFP7 (see parts list for color options) TANK-10N AS1-VS FWAX15 SSP12 SSAXLE14 DP-A PVCV34FM OPTIONAL COMPONENTS AIR HOSE ASSEMBLY WATER SEPARATOR ITEM NUMBER: AH30 ITEM NUMBER: WS-20CFM Model Number: FG-10N-3, FG-10NK-3, FG-10NV-3 Page 5 of 7 | 20221202... - Page 6 QFSEL38 QFBH38 QFSEL38 STR38-IL HBSSEL1438 HHPB3414 PVCV34FM Plate - Back View Fog Mast - Top View ITEM NUMBER: 3NA-N130 QFT38 SSA14 S5161812 SEL14M BVB14 AP25 EL14M14F PFN-N130 QFBH38 CT38-15 Model Number: FG-10N-3, FG-10NK-3, FG-10NV-3 Page 6 of 7 | 20221202...
- Page 7 DESCRIPTION P56K 5700 PUMP WITH KALREZ SEALS - INCLUDES HOSE BARBS, AIR FITTING, AND AIR PORT 3NA-N130 FG-10N-3 TOP BRACKET ASSEMBLY WITH 3 PFN-N130 P56V 5700 PUMP WITH VITON SEALS - INCLUDES HOSE NOZZLES BARBS, AIR FITTING, AND AIR PORT...
- Page 8 4. The five switches in the the bottom right (Dual Mode t2) control the run time. The active time for each function is equal to the combined values of any switch(es) that are ON. NOTICE: the timer is factory set at 2 minute delay, 8 minute run time. FOAMit PN:TR120MF Timer Setting Example...
