30 Gallon Spray Unit
Service Manual
SP-30N
READ ALL INSTRUCTIONS BEFORE USING OR
SERVICING THIS UNIT. KEEP THIS MANUAL IN A
LOCATION THAT IS READILY AVAILABLE TO USERS
AND SERVICE TECHNICIANS.
English (Original Instructions)
Scan this code for
service manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP-30N and is the answer not in the manual?

Questions and answers

Related Manuals for Foamit SP-30N

Summary of Contents for Foamit SP-30N

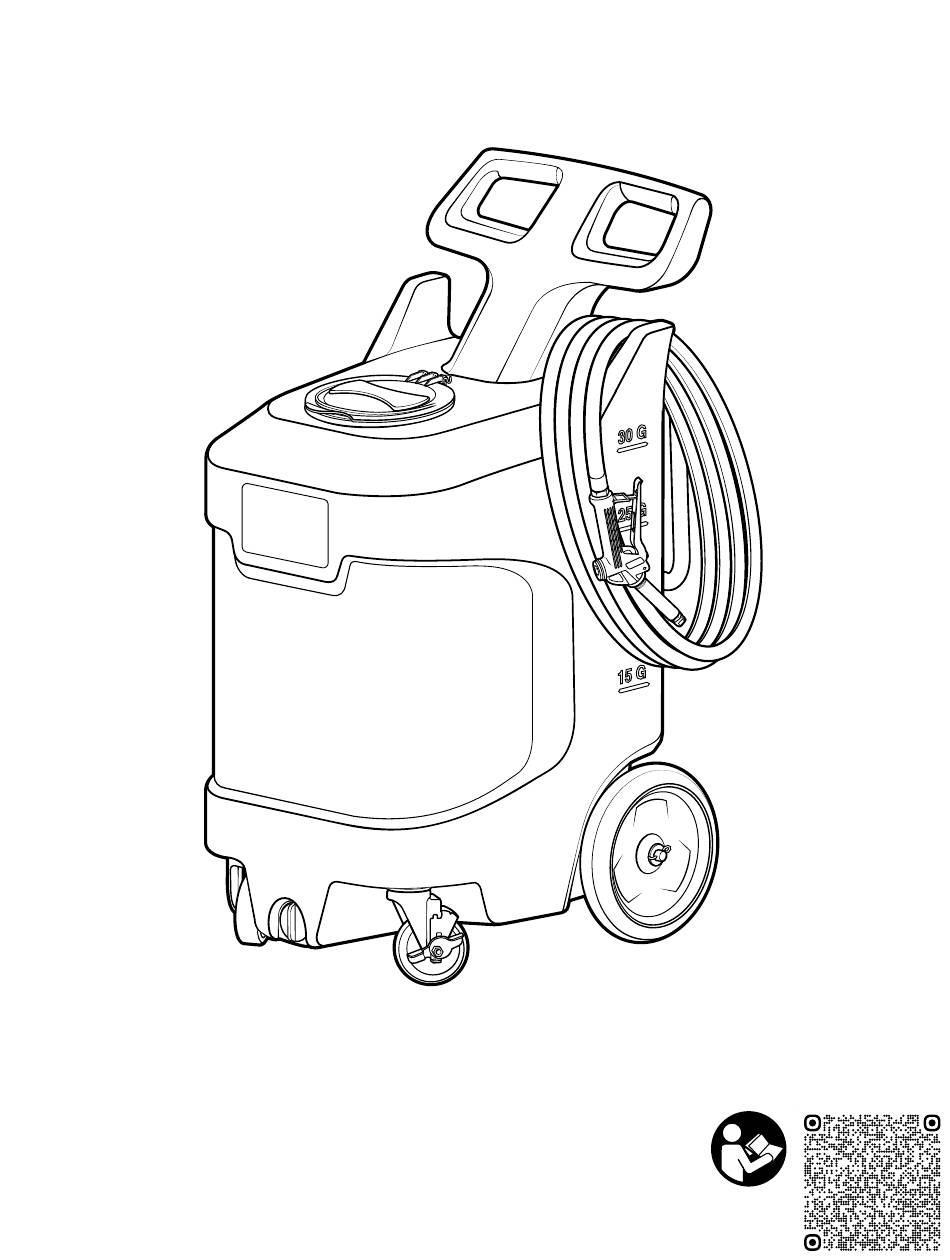

  • Page 1 30 Gallon Spray Unit Service Manual SP-30N READ ALL INSTRUCTIONS BEFORE USING OR SERVICING THIS UNIT. KEEP THIS MANUAL IN A LOCATION THAT IS READILY AVAILABLE TO USERS AND SERVICE TECHNICIANS. Scan this code for English (Original Instructions) service manual...
  • Page 2 Always flush the unit with fresh water thoroughly when switching from an alkaline to an acid or an acid to an alkaline. Model: SP-30N V20240503 • Page 2 of 12...

  • Page 3: Protect The Environment

    • Crescent wrench (2x) • #2 Phillips head screwdriver • ⁷/16 in. (11 mm) open-ended wrench • #3 Phillips head screwdriver • Flat head screwdriver • Hose cutters • Thread seal tape • Knife Model: SP-30N V20240503 • Page 3 of 12...
  • Page 4 50 psi (3.4 bar). If the air gauge reads more or less than 50 psi (3.4 bar), adjust the pressure by turning the knob on the top of the air regulator. Model: SP-30N V20240503 • Page 4 of 12...

  • Page 5: Tank Assembly

    - 4 in. wheel Drain plug assembly for portable 7 DPA units - includes gasket Swivel caster - stainless - 5 in. 8 CST5SS-L clearance - 4 in. wheel - with lock Model: SP-30N V20240503 • Page 5 of 12...
  • Page 6 Wheel - non-marking - 10 in. Flat washer for 5/8 in. od pipe or axle - 11 FW58 stainless - 0.64 in. id x 1.2 in. od x 0.05 in. thk WHLA-AXL1812 Model: SP-30N V20240503 • Page 6 of 12...

  • Page 7: Back Plate Assembly

    7 STR38-IL gasket - 20 mesh SS - black bowl ⅜ in. blue hose - hybrid TPE - 8 H38BL-F available per ft. Stainless screw band clamp for 9 SSC38 ⅜ in. hose Model: SP-30N V20240503 • Page 7 of 12...

  • Page 8: Optional Components

    Stainless steel union - ¼ in. FPT Water separator - 20 CFM - ¼ in. FPT 8 WS-20CFM ports Air fitting ¼ MPT x plug - nickel-plated 9 AP14 brass WSA-20CFM* *Optional assembly sold separately Model: SP-30N V20240503 • Page 8 of 12...
  • Page 9 Bulkhead adapter - stainless - ¼ NPT 8 SSA14BKH x ¼ NPSM 9 SSSFN12 Serrated flange nut - stainless - ½ in. Air fitting ¼ MPT x plug - nickel- 10 AP14 plated brass RGA-R25-PSP Model: SP-30N V20240503 • Page 9 of 12...

  • Page 10: Suction Assembly

    5 HBSSEL1438 barb elbow Hex head poly bushing ¾ MPT 6 HHPB3414 x ¼ FPT Ball valve - PVC - 3/ 4 NPT to 3/ 4 FNPT 7 BVPVC34MF EPDM seal SCTNA-PF Model: SP-30N V20240503 • Page 10 of 12...

  • Page 11: Hose Assembly

    Screw band clamp for 3/8 in. hose - 2 SSC38 stainless 3/8 in. blue* hose - hybrid TPE - available 3 H38BL-F per ft. * Additional colors available, see datasheet for options. HA38BL-30 Model: SP-30N V20240503 • Page 11 of 12...

  • Page 12: Wand Assembly

    - gray handle with red clip - 3 PSG12 316SS internal spring - includes 2x o-ring 4 HBSS1238 Stainless hose barb ½ MPT x 3/8 barb Stainless screw band clamp for 3/8 in. 5 SSC38 hose PSGA384-ST Model: SP-30N V20240503 • Page 12 of 12...
