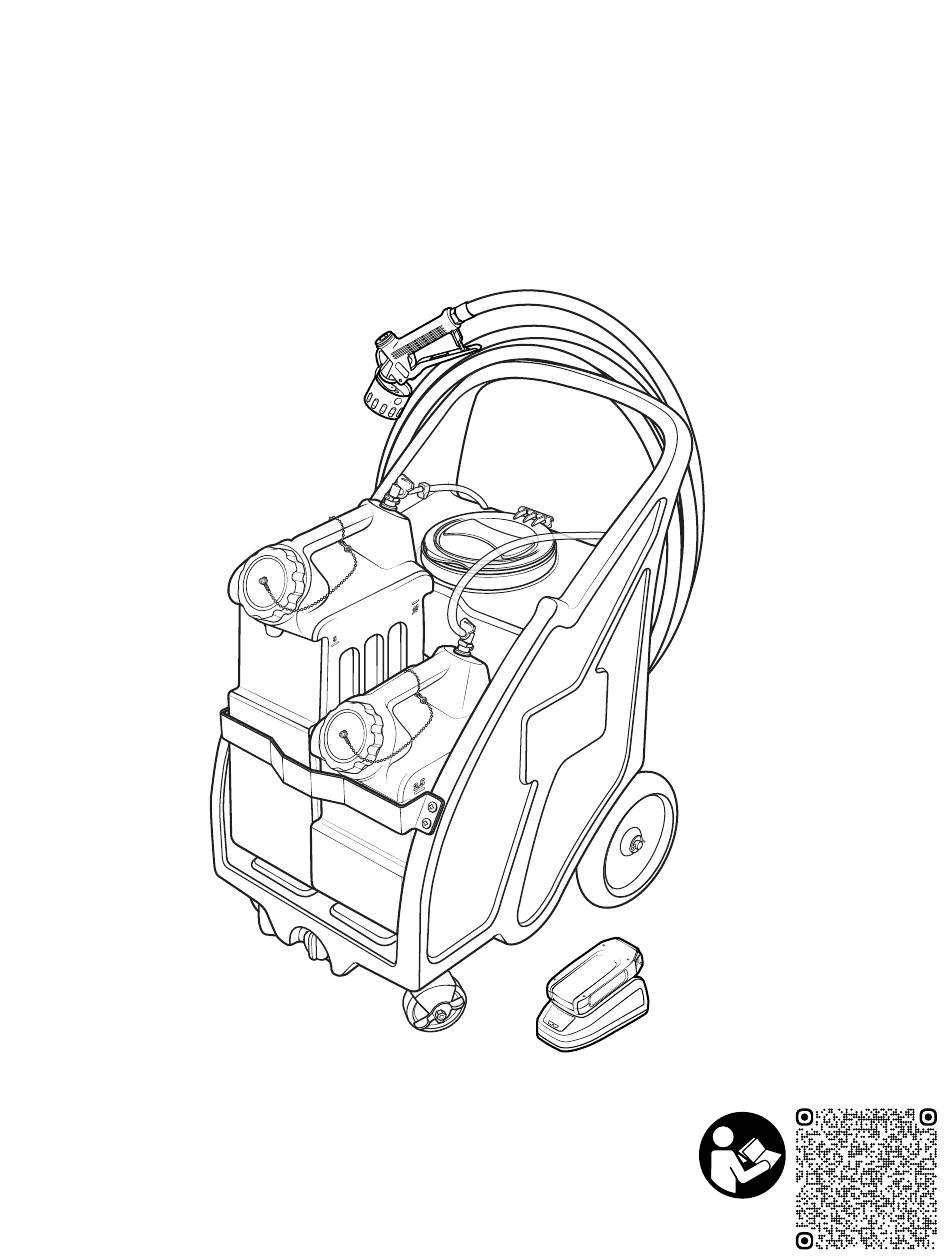

Battery Powered Foam
Rinse Sanitize Unit
Service Manual
FRS-BP-15N
READ ALL INSTRUCTIONS BEFORE USING OR
SERVICING THIS UNIT. KEEP THIS MANUAL IN A
LOCATION THAT IS READILY AVAILABLE TO USERS
AND SERVICE TECHNICIANS.
English (Original Instructions)
Scan this code for
service manual
Advertisement
Related Manuals for Foamit FRS-BP-15N
Summary of Contents for Foamit FRS-BP-15N
- Page 1 Battery Powered Foam Rinse Sanitize Unit Service Manual FRS-BP-15N READ ALL INSTRUCTIONS BEFORE USING OR SERVICING THIS UNIT. KEEP THIS MANUAL IN A LOCATION THAT IS READILY AVAILABLE TO USERS AND SERVICE TECHNICIANS. Scan this code for English (Original Instructions)
- Page 2 Store unit and battery indoors in a cool, dry location between 32°-77°F (0°-25°C) and < 75% relative humidity. Do not store below 32°F (0°C) or above 113°F (45°C). To prevent premature battery failure, do not store battery in depleted state for long periods of time. Model: FRS-BP-15N V20241127 • Page 2 of 17...
- Page 3 PROTECT THE ENVIRONMENT Please dispose of packaging materials, old machine components, and hazardous fluids in an environmentally safe way according to local waste disposal regulations Model No.: FRS-BP-15N Manufactured by: FOAMit 3833 Soundtech Ct. SE Grand Rapids, MI 49512 US This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
- Page 4 • Crescent wrench (2x) • #2 Phillips head screwdriver • 1/ 4 in. (7 mm) hex bit • #3 Phillips head screwdriver • Flat head screwdriver • Hose cutters • Thread seal tape • Knife Model: FRS-BP-15N V20241127 • Page 4 of 17...
- Page 5 A faulty pump or compressor may need to be replaced. • Battery/charger fault light is Refer to the separate manuals supplied with the battery and charger for more information flashing regarding indicator and fault lights. Model: FRS-BP-15N V20241127 • Page 5 of 17...
- Page 6 Bolt - 1/ 4 -20 x 1/2 in. - stainless 10 B142012-VS steel - truss head Phillips - Vibra-Seal Swivel caster - stainless - 11 CST5SS-L 5 in. clearance - 4 in. wheel - with lock Model: FRS-BP-15N V20241127 • Page 6 of 17...
- Page 7 Wheel - 10 in. - non-marking Flat washer for 5/8 in. od pipe or axle - 12 FW58 stainless steel - 0.64 in. id x 1.2 in. od WHLA-AXL18 x 0.05 in. thk Model: FRS-BP-15N V20241127 • Page 7 of 17...
- Page 8 Pressure switch - 1/ 4 quick fit - Viton PS14QFV-55-WP diaphragm - 55 PSI - water proof Hose barb - stainless steel - HBSSEL1414 elbow - 1/ 4 in. MPT x 1/ 4 in. barb Model: FRS-BP-15N V20241127 • Page 8 of 17...
- Page 9 Battery - lithium ion - 24V - 9 BLI-24V-CHRGR charger - includes NA power cord and manual Note: Refer to battery and charger user manuals for more information. *Not included with backplate assembly Model: FRS-BP-15N V20241127 • Page 9 of 17...
- Page 10 Needle valve - ¼ in. NPT - 5 NV14 includes black knob Hose barb - stainless steel - 6 HBSSEL1414 elbow - 1/ 4 in. MPT x 1/ 4 in. barb PSHA-BP-WP NVA-NV14-FRS Model: FRS-BP-15N V20241127 • Page 10 of 17...
- Page 11 1/ 4 in. id hose includes foam label Quick connect plug - PP body B QCPP-PLG- with Hastelloy spring elbow HBEL14-S barb for 1/ 4 in. id hose includes sanitize label SCTNA-MNV-F SCTNA-MNV-S Model: FRS-BP-15N V20241127 • Page 11 of 17...
- Page 12 1/ 4 in. id blue hose - hybrid TPE - 4 H14BL-F available per ft. Air compressor - 24 VDC electric 5 AC24VDC-1.4-MLX 1.4 CFM open flow - 80 PSI max - includes molex connector ACA-AC24VDC-1.4 Model: FRS-BP-15N V20241127 • Page 12 of 17...
- Page 13 Buna seal Hex head poly bushing ¾ MPT 5 HHPB3414 x ¼ FPT Hose barb - stainless steel - elbow - 6 HBSSEL1438 1/ 4 in. MPT x 3/8 in. barb SCTNA-PFRS-BP Model: FRS-BP-15N V20241127 • Page 13 of 17...
- Page 14 Screw band clamp - stainless steel - 2 SSC38 for 3/8 in. hose 3/8 in. id blue* hose - hybrid TPE - 3 H38BL-F available per ft. * Additional colors available, see datasheet for options. HA38BL-12 Model: FRS-BP-15N V20241127 • Page 14 of 17...
- Page 15 - 316SS internal spring - includes 2x o-ring 13 HBSS1238 Stainless hose barb ½ MPT x 3/8 barb Screw band clamp - stainless steel - 14 SSC38 for 3/8 in. hose Model: FRS-BP-15N V20241127 • Page 15 of 17...
- Page 16 - hose and foot strainer - no fittings Quick connect socket - PP body with Hastelloy spring - 8 QCPP-SCKT-PM barb for 3/8 in. id hose - 11/16-24 panel mount threads SCTNA-JG-2.5-NB Model: FRS-BP-15N V20241127 • Page 16 of 17...
- Page 17 - hose and foot strainer - no fittings Quick connect socket - PP body with Hastelloy spring - 8 QCPP-SCKT-PM barb for 3/8 in. id hose - 11/16-24 panel mount threads SCTNA-JG-5-NB Model: FRS-BP-15N V20241127 • Page 17 of 17...
