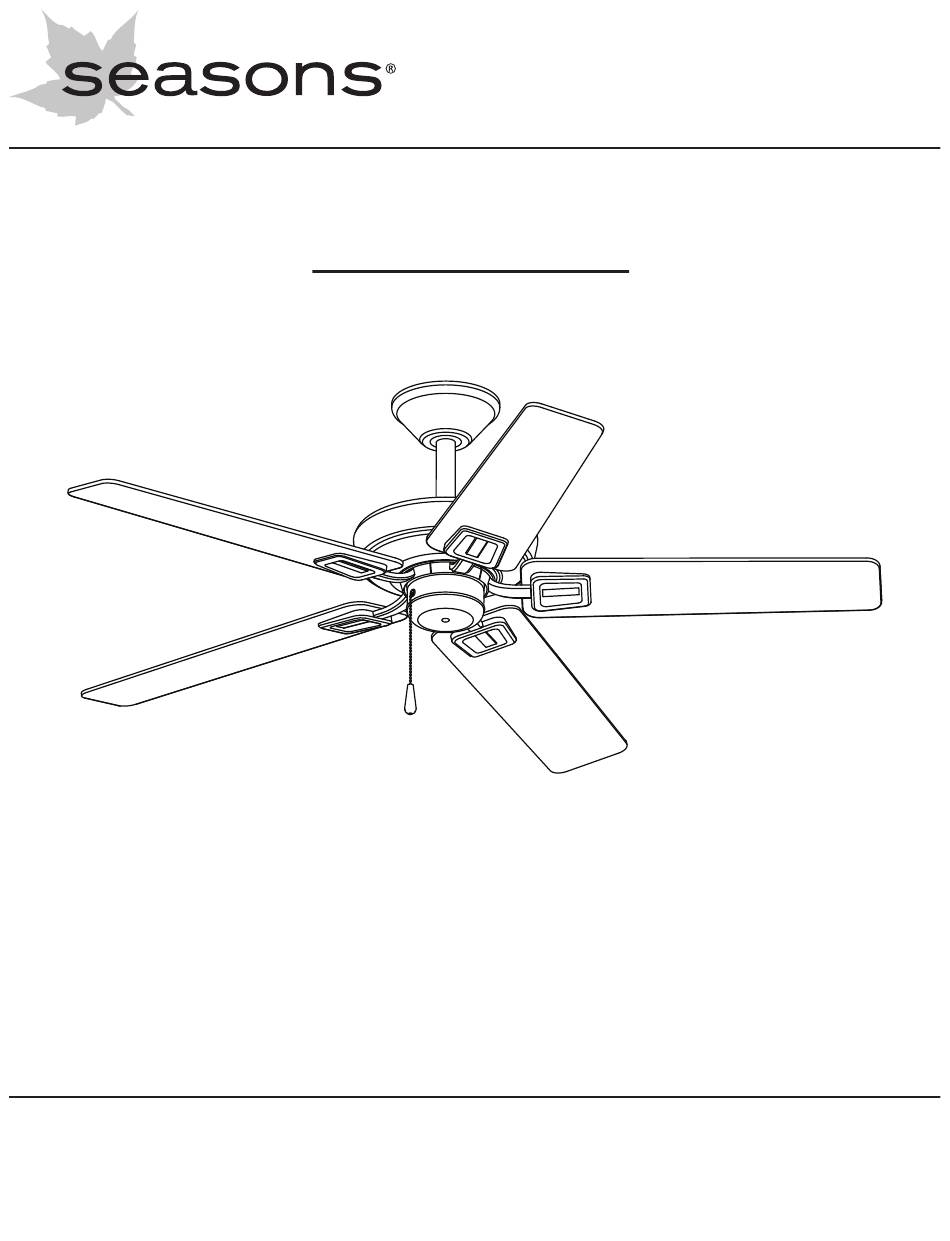

USE AND CARE GUIDE
MARKAN 52-INCH CEILING FAN
Part #: 360032, 360033, 360034
USN #: 333619392, 333619393, 333619394
Model #: 32565, 32566, 32567
HD Supply is here to help.
Online Chat: hdsupplysolutions.com
Email: customercare@hdsupply.com
Call: 1-800-431-3000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MARKAN and is the answer not in the manual?

Questions and answers

Summary of Contents for SeasonsComfort MARKAN

  • Page 1 Part #: 360032, 360033, 360034 USN #: 333619392, 333619393, 333619394 Model #: 32565, 32566, 32567 USE AND CARE GUIDE MARKAN 52-INCH CEILING FAN Exclusively Distributed By: HD Supply is here to help. HD Supply Online Chat: hdsupplysolutions.com 3400 Cumberland Blvd. SE Email: customercare@hdsupply.com...
  • Page 2: Table Of Contents

    Table of Contents Safety Information ............... 2 Assembly................7 Warranty ................3 Operation ................11 Pre-Installation..............3 Care and Cleaning ............. 12 Installation ................6 Troubleshooting ..............12 Safety Information READ AND SAVE THESE INSTRUCTIONS. WARNING: To reduce the risk of personal injury, 1.
  • Page 3: Warranty

    Warranty The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a lifetime after the date of purchase by the original purchaser. The supplier warrants that the light kit, excluding any glass, to be free from defects in workmanship and material at the time of shipment from the factory for a period of three years after the date of purchase by the original purchaser.
  • Page 4: Hardware Included

    Pre-Installation (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Pull chain Plastic wire connectors Hanger pin Locking pin Blade attachment screws...
  • Page 5: Package Contents

    Pre-Installation (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Slide-on mounting bracket Fan-motor assembly (inside canopy) Switch cup Canopy Blade Canopy bottom cover Blade bracket Ball/downrod assembly...
  • Page 6: Installation

    Installation MOUNTING OPTIONS WARNING: To reduce the risk of fire, electric NOTE: You may need a longer downrod to maintain shock or personal injury, mount to outlet box proper blade clearance when installing on a steep, marked “Acceptable for fan support of 35 lbs (15.9 sloped ceiling.
  • Page 7: Preparing For Mounting

    Assembly - Standard Ceiling Mount Preparing for mounting □ Remove the canopy cover (C) from the canopy (B) by turning the bottom cover (C) counterclockwise until it unlocks. □ Loosen the two canopy screws (FF) located in the bottom of the mounting bracket (A), and turn the canopy counterclockwise to remove the mounting bracket (A) from the canopy (B).
  • Page 8: Hanging The Fan

    Assembly - Hanging the Fan Attaching the fan to the electrical box WARNING: To reduce the risk of fire, electric shock or personal injury, mount to outlet box marked “Acceptable for fan support of 35 lbs (15.9 kg) or less”, and use screws provided with the outlet box.
  • Page 9: Making The Electrical Connection

    Assembly - Hanging the Fan (continued) Making the electrical connection WARNING: Remove the rubber motor stops on the bottom of the fan before installing the blades Outlet box or testing the motor. IMPORTANT: Use the wire connecting nuts (BB) supplied with your fan. Secure the connectors with electrical tape and ensure there are no loose strands or connections.
  • Page 10: Attaching The Fan Blades

    Assembly - Hanging the Fan (continued) Mounting the fan-motor assembly WARNING: When using the standard ball/downrod mounting, the tab in the ring at the bottom of the mounting bracket must rest in the groove of the hanger ball. Failure to properly seat the tab in the groove could cause damage to the wiring.
  • Page 11: Attaching The Switch Cup

    Assembly - Attaching the Switch Cup Attaching the switch cup □ Remove the three screws (HH) from the black bracket at the base of the fan motor assembly (E). □ Connect the adaptor plug from the switch cup (F) to the plug from the fan.
  • Page 12: Care And Cleaning

    Care and Cleaning WARNING: Make sure the power is off before cleaning your fan. □ Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling. □...
  • Page 14 Parte #: 360032, 360033, 360034 USN #: 333619392, 333619393, 333619394 Modelo #: 32565, 32566, 32567 GUÍA DE USO Y MANTENIMIENTO VENTILADOR DE TECHO MARKAN DE 1.3 m Distribuido exclusivamente por: HD Supply está aquí para ayudar. HD Supply Chat en línea: hdsupplysolutions.com 3400 Cumberland Blvd.
  • Page 15: Información De Seguridad

    Tabla de contenido Información de seguridad ........... 2 Ensamblaje................7 Garantía ................3 Operación ................11 Preinstalación ..............3 Mantenimiento y limpieza ..........12 Instalación ................6 Solución de problemas ............. 12 Información de seguridad LEE Y GUARDA ESTAS INSTRUCCIONES. 1.
  • Page 16: Garantía

    Garantía El proveedor garantiza que el motor del ventilador está libre de defectos de fabricación y materiales presentes en el momento del envío desde la fábrica durante toda la vida útil a partir de la fecha de compra por parte del comprador original. El proveedor garantiza que el kit de luces, excluido cualquier cristal, está...
  • Page 17: Herrajes Incluidos

    Preinstalación (continuación) HERRAJES INCLUIDOS NOTA: No se muestra el tamaño real de los herrajes. Pieza Descripción Cantidad Cadena para interruptor Conectores plásticos para cables Pasador de soporte Pasador de cierre Tornillos para fijar las aspas...
  • Page 18: Contenido Del Paquete

    Preinstalación (continuación) CONTENIDO DEL PAQUETE Pieza Descripción Cantidad Pieza Descripción Cantidad Soporte de montaje deslizante Conjunto motor-ventilador (dentro de la cubierta) Caja del interruptor Cubierta Aspa Tapa del fondo de la cubierta Soporte de aspa Conjunto del tubo bajante/ esfera...
  • Page 19: Instalación

    Instalación OPCIONES DE MONTAJE ADVERTENCIA: Para reducir el riesgo de incendio, NOTA: Tal vez necesites un tubo bajante más largo, descarga eléctrica o lesiones personales, instala solo para mantener la altura mínima adecuada de las aspas, en una caja eléctrica clasificada como “Apropiada al instalar el ventilador en un techo inclinado.
  • Page 20 Ensamblaje - Montaje estándar en techo Preparación para el montaje □ Retira la tapa inferior (C) de la cubierta (B) girándola hacia la izquierda hasta liberarla. □ Afloja los dos tornillos de la cubierta (FF) en la parte inferior del soporte de montaje (A) y gira la cubierta hacia la izquierda para quitar el soporte (A) de la cubierta (B).
  • Page 21 Ensamblaje - Cómo colgar el ventilador Cómo fijar el ventilador a la caja eléctrica ADVERTENCIA: Para reducir el riesgo de incendio, descarga eléctrica lesiones personales, instala solo en una caja eléctrica clasificada como “Apropiada para sostener ventiladores de 35 lb (15.9 kg) o menos” y usa los tornillos que vienen con ella.
  • Page 22: Ensamblaje

    Ensamblaje - Cómo colgar el ventilador (continuación) Cómo hacer las conexiones eléctricas ADVERTENCIA: Quita los tapones de goma del motor en la parte inferior del ventilador antes de instalar las aspas o de verificar el motor. IMPORTANTE: Usa las tuercas de conexión de Caja de salida Outlet box cables (BB) que vienen con tu ventilador.
  • Page 23 Ensamblaje - Cómo colgar el ventilador (continuación) Cómo montar el conjunto motor-ventilador ADVERTENCIA:Cuando uses el montaje de tubo bajante/ esfera estándar, la pestaña en el aro en la parte inferior del soporte de montaje debe encajar en la ranura de la bola de soporte.
  • Page 24 Ensamblaje - Cómo instalar la caja del interruptor Cómo instalar la caja del interruptor □ Retira los tres tornillos (HH) del soporte negro en la base del conjunto motor-ventilador (E). □ Conecta el enchufe con adaptador que sale de la caja del interruptor (F) hasta el enchufe del ventilador.
  • Page 25: Mantenimiento Y Limpieza

    Mantenimiento y limpieza ADVERTENCIA: Asegúrate de que la corriente esté apagada antes de limpiar el ventilador. □ Debido al movimiento natural del ventilador, algunas conexiones pueden aflojarse. Revisa dos veces al año las con- exiones de soporte, los soportes y los accesorios de las aspas. Comprueba que estén seguros. No es necesario des- montar el ventilador del techo.
