SeasonsComfort 501019 Owner's Manual

52” led ceiling fan
Hide thumbs

Advertisement

Table of Contents

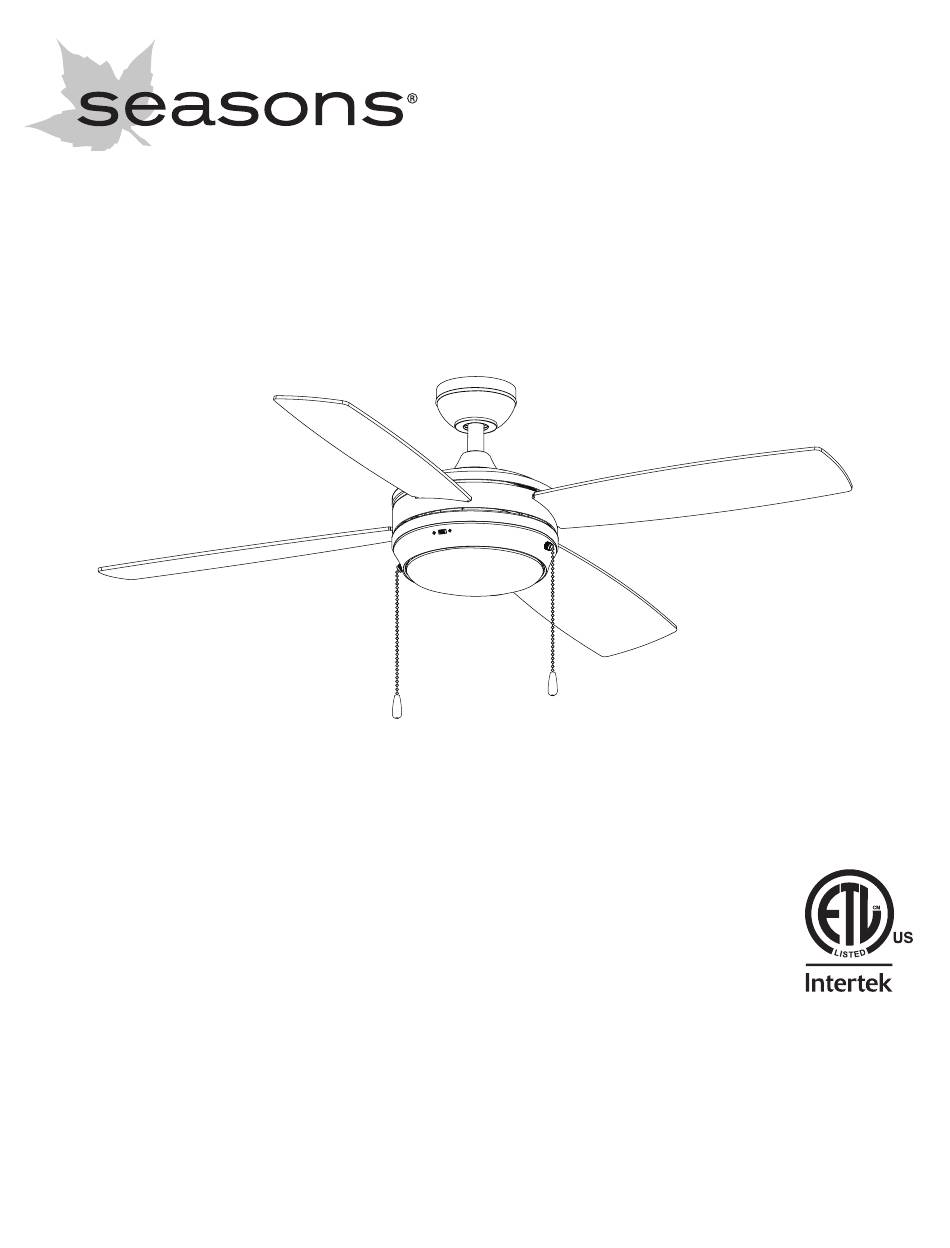

52" LED Ceiling Fan
Owner's Manual
Exclusively Distributed By:
HD Supply
3400 Cumberland Blvd. SE
Atlanta, GA 30339
© 2023
Made in China
9537 • 040423
Part #: 501019 (32212) - Brushed Nickel, USN #: 323188931
HD Supply is here to help.
Online Chat: hdsupplysolutions.com
Email: customercare@hdsupply.com
Call: 1-800-431-3000
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 501019 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SeasonsComfort 501019

Summary of Contents for SeasonsComfort 501019

  • Page 1 Part #: 501019 (32212) - Brushed Nickel, USN #: 323188931 52” LED Ceiling Fan Owner’s Manual Exclusively Distributed By: HD Supply is here to help. HD Supply Online Chat: hdsupplysolutions.com 3400 Cumberland Blvd. SE Email: customercare@hdsupply.com Atlanta, GA 30339 Call: 1-800-431-3000 ©...

  • Page 2: Package Contents

    PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: PACKAGE CONTENTS 1. Canopy 12. Fitter Plate Screw (x3) 2. Canopy Cover 13. Light Pan 3. Mounting Bracket 14. Light Pan Screw (x3) 4. Canopy Screw (x2) 15.

  • Page 3: Mounting Options

    DIMENSION REFERENCE A. 13.29 in. B. 9.59 in. C. 10.75 in. D. 5.13 in. MOUNTING OPTIONS Two Mounting Options Downrod Mount Angled Ceiling Mount (Up to 16 degrees) Choose one of the following mounting options: Downrod Mount is best suited for ceilings 8 ft. or higher. For taller ceilings you may want to use a longer downrod (not included).

  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN INSTALLING THE FAN AND SAVE INSTRUCTIONS. CAUTION: All set screws of the fan must be checked and retightened where necessary before installation. To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets, balancing the blades or cleaning fan.
  • Page 5 ASSEMBLY INSTRUCTIONS 1. Turn OFF the electrical power at the main fuse or circuit breaker. DANGER: Failure to disconnect the power supply prior to installation may result in serious injury or death. Downrod Mount 2. Install the mounting bracket to the outlet box (not included) using the screws and washers provided with the outlet box.
  • Page 6 ASSEMBLY INSTRUCTIONS 5. Slide the downrod into the yoke of the motor assembly, align the holes, then re-install the downrod pin and downrod clip. Secure with the two set screws and slide the yoke cover down until it rests on top of Set Screw the motor assembly.
  • Page 7 ASSEMBLY INSTRUCTIONS 9. Slide the key slots in the canopy cover over the heads of the canopy screws preassembled to the mounting bracket. Twist the canopy cover clockwise to lock. Canopy Canopy Screw Key Slot Canopy Cover Slot 10. Insert blade through slot in the side of the motor assembly.
  • Page 8 ASSEMBLY INSTRUCTIONS 13. Remove the three light kit screws pre-assembled to the light kit. Then connect the single-pin connectors from the light kit to the single-pin connectors from the LED -- blue to black and white to white. Attach the LED to the light kit with the light kit screws.
  • Page 9 OPERATING INSTRUCTIONS 1. Using a ceiling fan will allow you to raise your thermostat setting in summer and lower your thermostat setting in winter without feeling a difference in your comfort. Reverse Switch In warmer weather, push the reverse switch to the left for downward airflow creating a wind chill effect.

  • Page 10: Troubleshooting

    TROUBLESHOOTING If you have difficulty operating your new ceiling fan, it may be the result of incorrect assembly, installation or wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please check the Troubleshooting section below. If a problem cannot be remedied or you are experiencing difficulty in installation, please contact Customer Service: 1-800-431-3000.

  • Page 11: Manufacturer Warranty

    52” LED Ceiling Fan ® Part #: 501019 (32212) - Brushed Nickel, USN #: 323188931 Set forth below, the manufacturer warrants the fan motor for this ceiling fan to be free from defects in workmanship and material for the life of the product. Also, subject to the limitations below, the manufacturer warrants all ceiling fan parts (“ceiling fan parts”...
