SeasonsComfort 287505 Owner's Manual

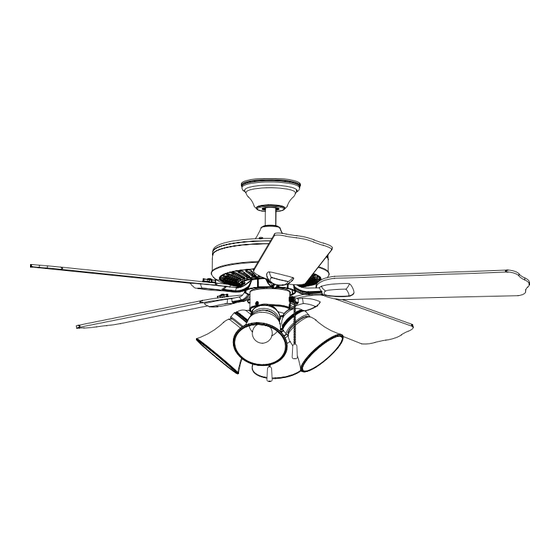

52” led ceiling fan
Hide thumbs

Advertisement

Table of Contents

52" LED Ceiling Fan
Owner's Manual
Exclusively Distributed By:
HD Supply
Atlanta, GA 30339
© 2023
Made in China
9197 • 020123
Part #: 287505 (32182) - Brushed Nickel, USN #: 323157604
Part #: 287507 (32183) - Polished Brass
Part #: 287508 (32181) - White, USN #: 323157605
Part #: 269721 (32145) - Bronze
1
To Reorder:
1-800-431-3000
hdsupplysolutions.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 287505 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SeasonsComfort 287505

Summary of Contents for SeasonsComfort 287505

  • Page 1 Part #: 287505 (32182) - Brushed Nickel, USN #: 323157604 Part #: 287507 (32183) - Polished Brass Part #: 287508 (32181) - White, USN #: 323157605 Part #: 269721 (32145) - Bronze 52” LED Ceiling Fan Owner’s Manual Exclusively Distributed By:...

  • Page 2: Package Contents

    PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: PACKAGE CONTENTS 1. Trim Ring 12. Motor Assembly 2. Canopy 13. Blade Arm (x5) 3. Canopy Cover 14. Switch Housing 4. Mounting Bracket 15. Light Kit 5.

  • Page 3: Mounting Options

    DIMENSION REFERENCE A. 18.67 in. B. 12.9 in. C. 11.15 in. D. 11.45 in. E. 5.13 in. MOUNTING OPTIONS Three Mounting Options Closemount Downrod Mount Angle Mount (up to 16 degrees) Choose one of the following mounting options: Closemount method is best suited for ceilings lower than 8 feet. It does not utilize the downrod. Downrod Mount is best suited for ceilings 8 ft.

  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN INSTALLING THE FAN AND SAVE INSTRUCTIONS. CAUTION: All set screws of the fan must be checked and retightened where necessary before installation. To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets, balancing the blades or cleaning fan.
  • Page 5 ASSEMBLY INSTRUCTIONS 1. Turn OFF the electrical power at the main fuse or circuit breaker. DANGER: Failure to disconnect the power supply prior to installation may result in serious injury or death. Mounting Bracket Screw 2. Loosen all four mounting bracket screws and completely remove the two screws from the round holes in the canopy.
  • Page 6 ASSEMBLY INSTRUCTIONS 5. Insert the downrod through the canopy, trim ring, and yoke cover. Feed the wires coming from the fan through the downrod. Canopy Trim Ring Downrod Yoke Cover Yoke 6. Slide the downrod into the yoke of the motor Yoke Cover assembly, align the holes, then re-install the downrod Set Screw...
  • Page 7 ASSEMBLY INSTRUCTIONS 8. Use wire connectors to connect the fan wires to the Black (hot) power supply wires according to the wiring diagram and the following instructions: White (neutral) • Connect the green wire from the downrod and Bare/Green (ground) mounting bracket to the bare/green (ground) supply Wire Connector wire.
  • Page 8 ASSEMBLY INSTRUCTIONS 12. Attach each glass shade to the light kit by twisting the glass shade firmly in a clockwise direction until it is secure. Light Kit Glass Shade 13. Install the E26-base LED bulbs into the sockets of the light kit. Important: Make sure you allow the bulbs and light kit to cool before you replace the bulbs.
  • Page 9 OPERATING INSTRUCTIONS 1. Using a ceiling fan will allow you to raise your thermostat setting in summer and lower your thermostat setting in winter without feeling a difference in your comfort. In warmer weather, push the reverse switch to the down for downward airflow creating a wind chill Reverse effect.

  • Page 10: Troubleshooting

    TROUBLESHOOTING If you have difficulty operating your new ceiling fan, it may be the result of incorrect assembly, installation or wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please check the Troubleshooting section below. If a problem cannot be remedied or you are experiencing difficulty in installation, please contact Customer Service: 1-800-431-3000.

  • Page 11: Manufacturer Warranty

    Model Name: Seasons 52” LED Ceiling Fan ® Part #: 287505 (32182) - Brushed Nickel, USN #: 323157604 Part #: 287507 (32183) - Polished Brass Part #: 287508 (32181) - White, USN #: 323157605 Part #: 269721 (32145) - Bronze...
