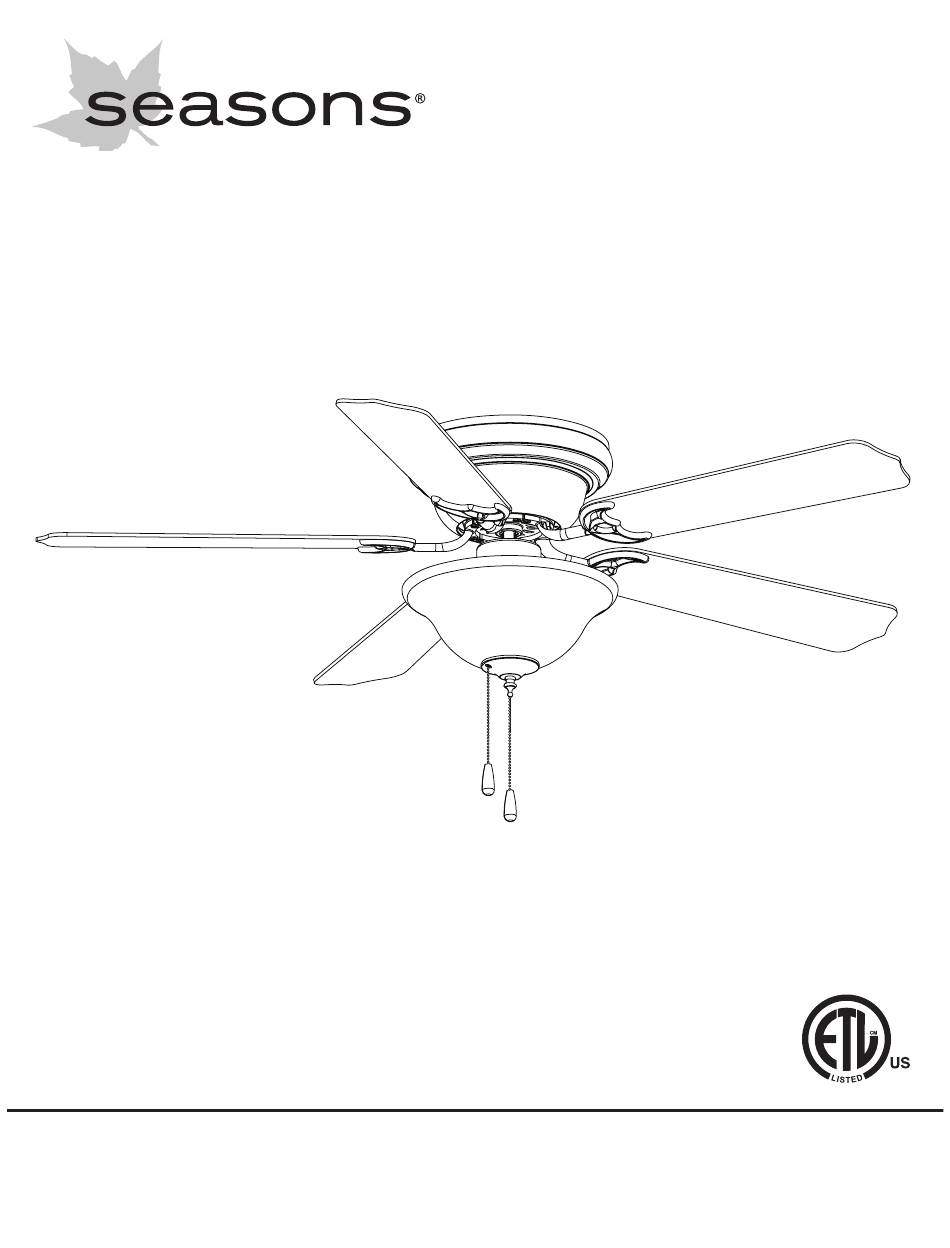

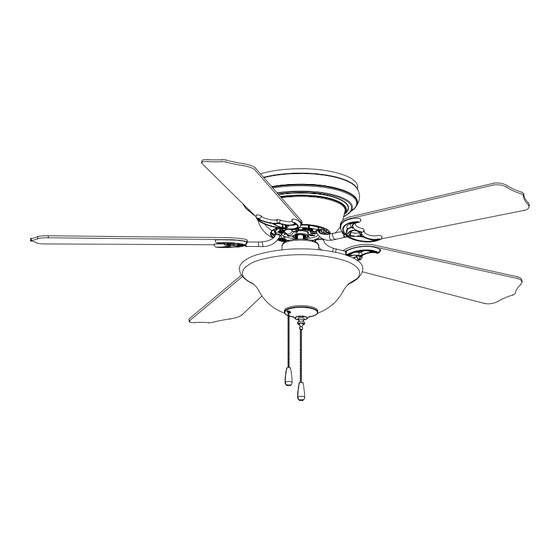

- Page 1 Part #: 269818 Torrance™ 52” LED Ceiling Fan Owner’s Manual Exclusively Distributed By: To Reorder: HD Supply Facilities Maintenance, Ltd. 1-800-431-3000 Atlanta, GA 30339 hdsupplysolutions.com © 2019 Made in China...
-
Page 2: Package Contents
PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: PACKAGE CONTENTS 1. Motor Housing 10. Blade (x5) 2. Mounting Bracket 11. Blade Arm (x5) 3. Lower Bracket 12. Hardware Kit 4. Motor 13. Owner’s Manual 5. - Page 3 EXPLODED VIEW DETAIL Motor Housing Mounting Bracket Lower Bracket Blade Motor Switch Housing Blade Arm Light Kit Bulb Finial Cap Finial Glass Bowl DIMENSION REFERENCE A. 6.17 in. B. 8.16 in. C. 14.35 in. D. 11.47 in.
-
Page 4: Safety Instructions
SAFETY INSTRUCTIONS READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN INSTALLING THE FAN AND SAVE INSTRUCTIONS. CAUTION: All set screws of the fan must be checked and retightened where necessary before installation. To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets, balancing the blades or cleaning fan. - Page 5 ASSEMBLY INSTRUCTIONS 1. Turn OFF the electrical power at the main fuse or circuit breaker. 2. Secure the upper mounting bracket to the outlet box (not included) using screws and washers provided with the outlet box. Warning: To reduce the risk of fire, electrical shock, or personal injury, mount the fan to the outlet box marked “acceptable for fan support”.
- Page 6 ASSEMBLY INSTRUCTIONS 5. Reinstall the previously removed bracket screws to secure the lower bracket to the mounting bracket. Bracket Scew 6. Use wire connectors to connect the fan wires to the power supply wires according to the wiring diagram and the following instructions: •...
- Page 7 ASSEMBLY INSTRUCTIONS To install the fan without the light kit, skip to step 13. 9. Remove the three switch housing screws from the top edge of the light kit. Then, connect the single-pin connectors from the fan to the single-pin connectors from Reverse Switch the light kit -- blue to black and white to white.
- Page 8 ASSEMBLY INSTRUCTIONS 13. INSTALLATION WITHOUT LIGHT KIT (OPTIONAL) a. Remove the three switch housing screws from the switch housing at the top of the light kit. b. Remove the light kit from the switch housing cap by removing the hex nut and lock washer inside the switch Notch Reverse Switch...
-
Page 9: Troubleshooting
TROUBLESHOOTING If you have difficulty operating your new ceiling fan, it may be the result of incorrect assembly, installation or wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please check the Troubleshooting section below. If a problem cannot be remedied or you are experiencing difficulty in installation, please contact Customer Service: 1-800-431-3000. -
Page 10: Manufacturer Warranty
MANUFACTURER WARRANTY To contact Customer Service: 1-800-431-3000. Model Name: 52” Torrance™ LED Brushed Nickel Ceiling Fan HDS Part #: 269818, Mfg #: 32155 (Brushed Nickel) Subject to the limitations set forth below, Hong Kong China Electric appliance Company (HKC) warrants the fan motor for this ceiling fan to be free from defects in workmanship and material for fifteen years.
